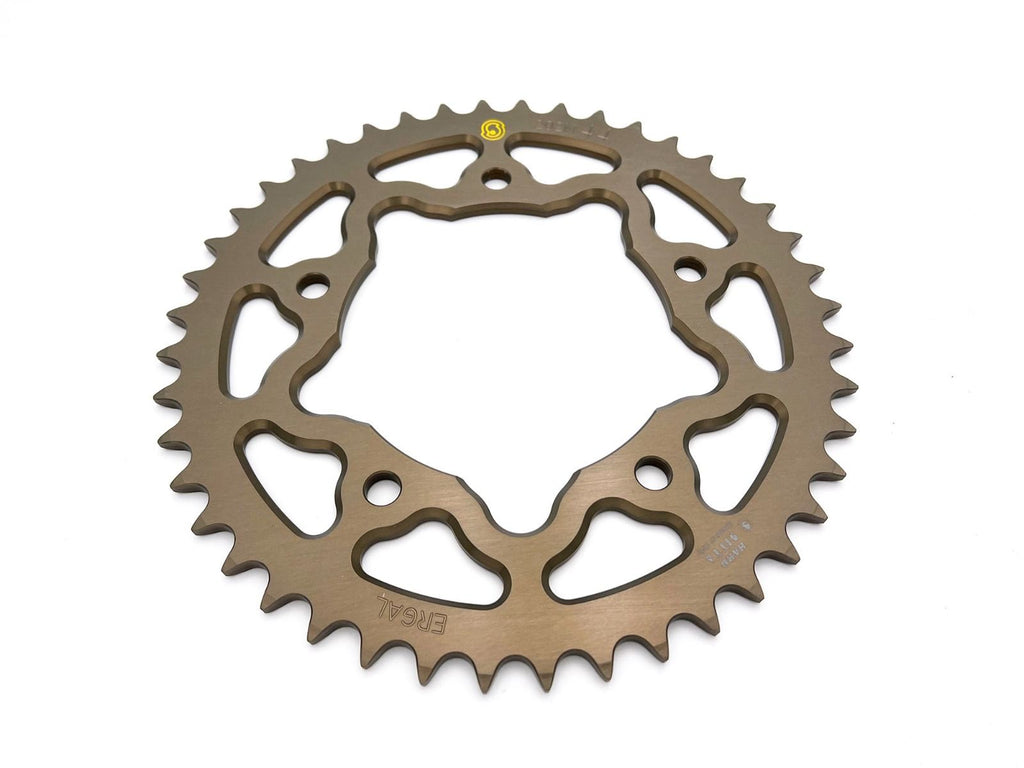

Sitta 202M rear sprocket, hard oxide 44-tooth series illustration; supplied pitch, finish and tooth count follow the selected SKU.

Sitta

SITTA 202M Aluminium Rear Sprocket - Yamaha - 520

$91.35

Payment options

USD

PayPal — charged in USD

Pay in US dollars through PayPal.

TWD

Credit card — charged in TWD via ECPay

Place your order first. We will confirm the payment-time TWD amount and send a secure ECPay card payment link.

Can’t find the part or product you need?

Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.

Request Product Sourcing →
INTERNATIONAL ORDERS

Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.

SITTA 202M CNC machined aluminium rear sprocket for the compatible Yamaha five-hole sprocket carrier. Choose the required finish and tooth count; the exact selected SKU identifies the supplied specification.

  • Chain pitch: 520
  • Tooth counts: 36 to 46, subject to the application restriction below
  • Centre bore: 112 mm; mounting PCD: 138 mm; five mounting holes, 10.5 mm diameter

Compatible applications

Motorcycle Model years
Yamaha MT-09 2021–2025
Yamaha YZF-R1 2015–2020
Yamaha YZF-R1M 2015–2020
Yamaha Tracer 9 2021–2025
Yamaha YZF-R6 1999–2002

For Tracer 9 with a 520 drivetrain, the verified tooth options are 36 to 42 and 44 to 46. The 43-tooth 520 option is excluded for this application.

Confirm the model year, installed wheel and carrier dimensions, chain pitch and gearing before ordering. Use a matching 520 chain and front sprocket. Converting from the original pitch requires the corresponding drivetrain components; aftermarket wheels may use a different carrier interface.

The image illustrates the same 202M series in hard oxide and may show a different pitch, finish or tooth count. Supplied specification follows the selected exact SKU.

Availability and dispatch timing are confirmed after ordering. Shipping is calculated separately.
