NG BRAKES

NG BRAKES NG1071 Brake Disc – Aprilia SR Max 125 ie 4V 11-14 / Aprilia SR Max 300 ie 4V 11-14

$126.61

Payment options

USD

PayPal — charged in USD

Pay in US dollars through PayPal.

TWD

Credit card — charged in TWD via ECPay

Place your order first. We will confirm the payment-time TWD amount and send a secure ECPay card payment link.

Can’t find the part or product you need?

Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.

Request Product Sourcing →

INTERNATIONAL ORDERS

Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.

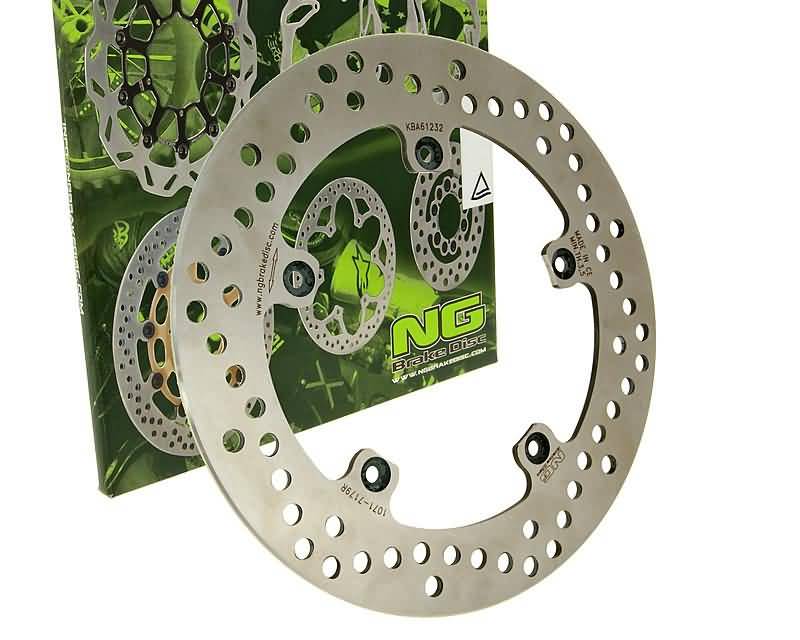

NG BRAKES replacement brake disc, reference NG1071.

Specifications

Outer diameter	240mm
Inner diameter	125mm
Thickness	4.0mm
Mounting holes	5
Hole diameter	6.5mm
Disc type	Standard

Compatible models

Aprilia-SR Max 125 ie 4V 11-14 [ZAPM357/ ZD4M357]
Aprilia-SR Max 300 ie 4V 11-14 [ZAPM3560/ ZD4M3560]
Aprilia-Scarabeo 125 4V 03 (Piaggio engine) [ZD4TD000/ TDA00/ TDA01]
Aprilia-Scarabeo 125 4V 04-06 (Piaggio engine) [ZD4TD002/ TDB/ TDC]
Aprilia-Scarabeo 125 4V 06- (Piaggio engine) [ZD4TD005/ TDA03]
Aprilia-Scarabeo 200 4V 03- E2 (Piaggio engine) [ZD4TD000/ TDA00/ TDA01]
Aprilia-Scarabeo 200 4V 06- E3 (Piaggio engine) [ZD4TD005/ TDA03]
Aprilia-Scarabeo 250 4V 04-06 E2 (Piaggio engine) [ZD4TD002/ TDB/ TDC]
Aprilia-Scarabeo 250 ie 4V Light 06-08 E3 [ZD4VRB]
Aprilia-Scarabeo 300 ie 4V Light 09-10 E3 [ZD4VRG00]
Aprilia-Scarabeo 400 ie 4V Light 06-08 [ZD4VR000/ VRA00/ VRC00/ VRE/ VRU00]
Aprilia-Scarabeo 492 ie 4V Light 06-08 [ZD4VR000/ VRA00/ VRC00/ VRE/ VRU00]
Aprilia-Scarabeo 500 ie 4V Light 06-08 [ZD4VR000/ VRA00/ VRC00/ VRE/ VRU00]
Derbi-GP1 125 4V LC 06- [VTHPS1A1A]
Derbi-GP1 250 4V LC 06- E2 [VTHPT1A1A]
Gilera-DNA 125 4T 4V LC [ZAPM26000]
Gilera-DNA 180 4T 4V LC [ZAPM26000]
Gilera-DNA 50 2T LC 05- [ZAPC270003]
Gilera-DNA 50 2T LC [ZAPC27000]
Gilera-DNA 50 GP 2T LC Experience [ZAPC27000]
Gilera-Fuoco 500 ie 4V 07-13 E3 [ZAPM61100]
Gilera-Fuoco 500 ie 4V LT 13-14 E3 [ZAPM83100]
Gilera-Nexus 125 4T 2V (Carburetor) 07-08 [ZAPM35500]
Gilera-Nexus 125 ie 4T 4V 08- [ZAPM35700]
Gilera-Nexus 125 ie 4T 4V 09-10 [ZAPM35700]
Gilera-Nexus 250 ie 4V 06- (United Kingdom) [ZAPM35300]
Gilera-Nexus 250 ie 4V 06- [ZAPM35300]
Gilera-Nexus 250 ie 4V 07- [ZAPM35400]
Gilera-Nexus 250 ie SP 4V 06-07 (United Kingdom) [ZAPM35300]
Gilera-Nexus 250 ie SP 4V 06-07 [ZAPM35300]
Gilera-Nexus 300 ie 4V 08- [ZAPM35600]
Gilera-Nexus 300 ie 4V 09-11 [ZAPM35600]
Gilera-Nexus 500 ie 4V -05 [ZAPM3510/ 35200]
Gilera-Nexus 500 ie 4V 06- (United Kingdom) [ZAPM35200]
Gilera-Nexus 500 ie 4V 06-08 [ZAPM35200]
Gilera-Nexus 500 ie 4V 09-11 [ZAPM35200]
Gilera-Nexus 500 ie SP 4V 06-07 [ZAPM35200]
Gilera-Runner 125 FX 2T LC (DT Disc / Drum) [ZAPM07000]
Gilera-Runner 125 FX SP 2T LC (DD Disc /Disc) [ZAPM07000]
Gilera-Runner 180 FXR 2T LC (DT Disc / Drum) [ZAPM08000]
Gilera-Runner 180 FXR SP 2T LC (DD Disc / Disc) [ZAPM08000]
Piaggio-BV 500 4V -04 (NAFTA) [ZAPM340W]
Piaggio-BV 500 ie 4V 05-07 (NAFTA) [ZAPM340W]
Piaggio-BV 500 ie 4V 08- (NAFTA) [ZAPM340W]
Piaggio-BV 500 ie 4V Tourer 08- (NAFTA) [ZAPM340W]
Piaggio-Beverly 400 ie 4V 06-07 E3 [ZAPM34300]
Piaggio-Beverly 400 ie 4V Tourer 08-09 E3 [ZAPM34400]
Piaggio-Beverly 500 ie 4V -04 [ZAPM34100]
Piaggio-Beverly 500 ie 4V 05-06 [ZAPM34100]
Piaggio-Beverly 500 ie 4V 06-08 E3 [ZAPM34200]
Piaggio-Beverly 500 ie 4V Cruiser 07-12 E3 [ZAPM34500]
Piaggio-Hexagon GTX 125 4T 4V LC [ZAPM20000]
Piaggio-Hexagon GTX 180 4T 4V LC [ZAPM20000]
Piaggio-Hexagon GTX Super 125 4T 4V LC (12 inch wheels) [ZAPM200000200]
Piaggio-MP3 125 4V LC (Carburetor) 06-08 [ZAPM47301/ 47300]
Piaggio-MP3 125 ie 4V LC 08-11 [ZAPM63100]
Piaggio-MP3 125 ie 4V LC Hybrid 09- [ZAPM65100]
Piaggio-MP3 125 ie 4V LC Touring 11-12 [ZAPM63100]
Piaggio-MP3 125 ie 4V LC Yourban ERL 11-13 [ZAPM71100/ 71101]
Piaggio-MP3 250 ie 4V LC 06-08 [ZAPM47201/ 47200]
Piaggio-MP3 250 ie 4V LC 07-08 (NAFTA) [ZAPM479M]
Piaggio-MP3 250 ie LT 4V LC 08-09 [ZAPM64100]
Piaggio-MP3 250 ie MIC 4V LC 08-09 [ZAPM63200]
Piaggio-MP3 250 ie MIC 4V LC 10- [ZAPM479M/ ZAPM63200]
Piaggio-MP3 300 ie 4V Hybrid ERL 10-13 [ZAPM65200]
Piaggio-MP3 300 ie 4V LT 09-14 [ZAPM64102]
Piaggio-MP3 300 ie 4V LT Business 14-15 [ZAPM86200/ 86202]
Piaggio-MP3 300 ie 4V LT Business 16-18 [ZAPTA1100/ ZAPTA19L]
Piaggio-MP3 300 ie 4V LT Business ABS 16-18 [ZAPTA1100/ ZAPTA19L]
Piaggio-MP3 300 ie 4V LT Enjoy 16- [ZAPM86200/ 86202]
Piaggio-MP3 300 ie 4V LT Hybrid 10-11 [ZAPM72100]
Piaggio-MP3 300 ie 4V LT Sport 09-14 [ZAPM64102]
Piaggio-MP3 300 ie 4V LT Sport 16-18 [ZAPTA1100/ ZAPTA19L]
Piaggio-MP3 300 ie 4V LT Sport ABS 14-15 [ZAPM86200/ 86202]
Piaggio-MP3 300 ie 4V LT Sport ABS 16-18 [ZAPTA1100/ ZAPTA19L]
Piaggio-MP3 300 ie 4V LT Touring 11-13 [ZAPM64102]
Piaggio-MP3 300 ie 4V MIC 11- [ZAPM63301]
Piaggio-MP3 300 ie 4V Touring 11-12 [ZAPM63301]
Piaggio-MP3 300 ie 4V Yourban ERL 11-15 [ZAPM71200/ ZAPM71]
Piaggio-MP3 300 ie 4V Yourban LT ERL 11-16 [ZAPM75100]
Piaggio-MP3 300 ie 4V Yourban LT RL 17-18 E4 [ZAPTA0100]
Piaggio-MP3 300 ie 4V Yourban Sport 17-18 E4 [ZAPTA0100]
Piaggio-MP3 350 ie 4V ABS 18-20 E4 [ZAPTA130]
Piaggio-MP3 400 ie 4V 07-08 (NAFTA) [ZAPM590T]
Piaggio-MP3 400 ie 4V 07-08 [ZAPM5910]
Piaggio-MP3 400 ie 4V LT 08-10 [ZAPM64200/ ZAPM5910]
Piaggio-MP3 400 ie 4V LT Sport 08-10 [ZAPM64200/ ZAPM5910]
Piaggio-MP3 400 ie 4V LT Touring 11- [ZAPM64200]
Piaggio-MP3 400 ie 4V MIC 08-10 [ZAPM59102]
Piaggio-MP3 400 ie 4V MIC 09-10 (NAFTA) [ZAPM590T]
Piaggio-MP3 400 ie 4V RL Touring 11- [ZAPM59101]
Piaggio-MP3 500 ie 4V 07-09 (NAFTA) [ZAPM610X]
Piaggio-MP3 500 ie 4V LT Business 11-13 [ZAPM64300]
Piaggio-MP3 500 ie 4V LT Sport 11-13 [ZAPM64300]
Piaggio-MP3 500 ie 4V RL Business 11-12 [ZAPM59200]
Piaggio-MP3 500 ie 4V RL Sport 11-12 [ZAPM59200]
Piaggio-MP3 500 ie 4V Sport 10-12 (NAFTA) [ZAPM610X]
Piaggio-MP3 500 ie 4V Tourer 10- [ZAPM610X]
Piaggio-X Evo 125 4V 07-16 (United Kingdom) [ZAPM36601]
Piaggio-X Evo 125 4V 07-16 [ZAPM36601]
Piaggio-X Evo 250 ie 4V 07-16 [ZAPM36401]
Piaggio-X Evo 400 ie 4V 07-11 [ZAPM52101]
Piaggio-X10 125 ie 4V 12-15 [ZAPM76101/ 76100]
Piaggio-X10 350 ie 4V 12-15 [ZAPM76201/ 76200]
Piaggio-X7 125 4V 08- (Carburetor) [ZAPM62100]
Piaggio-X7 125 ie 4V 09-10 [ZAPM62101]
Piaggio-X7 250 ie 4V 08- [ZAPM62200]
Piaggio-X7 300 ie 4V 09- [ZAPM62201]
Piaggio-X8 125 4V -04 (Carburetor) [ZAPM36300]
Piaggio-X8 125 4V 05-06 (Carburetor) [ZAPM36301]
Piaggio-X8 125 4V Premium 06- E2 (Carburetor) [ZAPM36301]
Piaggio-X8 125 4V Premium 07- E3 (Carburetor) [ZAPM36600]
Piaggio-X8 200 4V -04 (Carburetor) [ZAPM36200]
Piaggio-X8 200 4V 05-07 (Carburetor) [ZAPM36200]
Piaggio-X8 250 ie 4V 05-08 E3 [ZAPM36400]
Piaggio-X8 400 ie 4V 06-08 [ZAPM52100]
Piaggio-X9 125 4V -04 (Carburetor) [ZAPM23000]
Piaggio-X9 125 4V Evolution -04 (Carburetor) [ZAPM23000]
Piaggio-X9 125 4V Evolution 05-06 (Carburetor) [ZAPM23000]
Piaggio-X9 125 4V Evolution 07- (Carburetor) [ZAPM48100]
Piaggio-X9 125 4V SL -04 (Carburetor) [ZAPM23000]
Piaggio-X9 180 4V Amalfi (Carburetor) [ZAPM23000]
Piaggio-X9 200 4V -04 (Carburetor) [ZAPM23000]
Piaggio-X9 200 4V Evolution -04 (Carburetor) [ZAPM23000]
Piaggio-X9 250 2V Honda engine -04 (Carburetor) [ZAPM23000/ 23100]
Piaggio-X9 250 4V Evolution -05 (Carburetor) [ZAPM23000]
Piaggio-X9 250 4V Evolution 06- (Carburetor)
Piaggio-X9 500 ie 4V Evolution 06-07 [ZAPM27000]
Piaggio-X9 500 ie 4V Evolution 06-07(NAFTA) [ZAPM270W]
Piaggio-X9 500 ie 4V Evolution ABS 06-07 [ZAPM27000]

Check the exact motorcycle model, year, mounting position and part number before ordering. Special order; contact us to confirm availability and delivery time.
