BRAKING RL7010

BRAKING

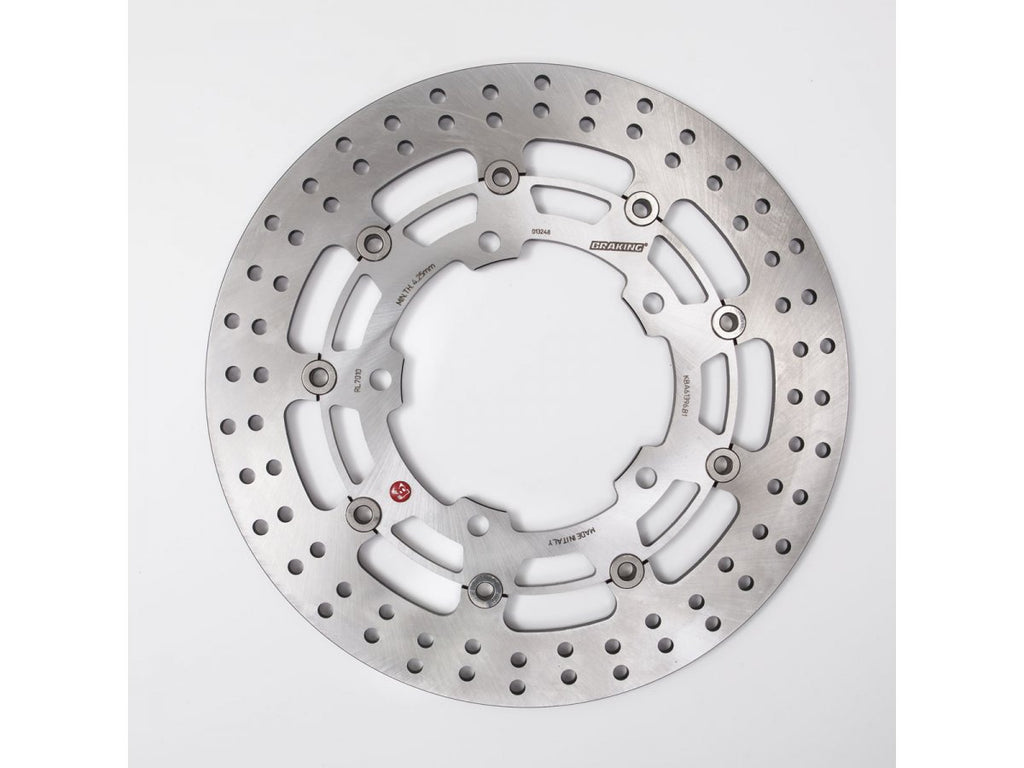

BRAKING RL7010 Brake Rotor

$219.81

Payment options

USD

PayPal — charged in USD

Pay in US dollars through PayPal.

TWD

Credit card — charged in TWD via ECPay

Place your order first. We will confirm the payment-time TWD amount and send a secure ECPay card payment link.

Can’t find the part or product you need?

Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.

Request Product Sourcing →
INTERNATIONAL ORDERS

Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.

BRAKING RL7010 — Brake Rotors.

Sold individually. Left and right rotors are separate part numbers. Order the quantity required for your motorcycle.

Special-order item. Please confirm your exact model, year, brake caliper and wheel configuration before ordering.

Outer diameter (mm) 310
Inner diameter (mm) 121.5
Braking band height (mm) 36.8
Thickness (mm) 5
Mounting holes 5
Bolt circle (mm) 142
Hole diameter (mm) 10.5
Offset (mm) 0

Confirmed applications

Make Model Displacement Years Position
SUZUKI GSR 400 2006 - 2008 FRONT - BOTH
SUZUKI GSR 600 2006 - 2010 FRONT - BOTH
SUZUKI DL V-STROM 650 2007 - 2012 FRONT - BOTH
SUZUKI DL V-STROM ABS 650 2007 - 2022 FRONT - BOTH
SUZUKI DL V-STROM XT ABS 650 2015 - 2019 FRONT - BOTH
SUZUKI GSF BANDIT 650 2007 - 2012 FRONT - BOTH
SUZUKI GSF BANDIT ABS 650 2011 - 2014 FRONT - BOTH
SUZUKI GSF BANDIT S 650 2007 - 2012 FRONT - BOTH
SUZUKI GSX F 650 2008 - 2012 FRONT - BOTH
SUZUKI GSX F ABS 650 2008 - 2014 FRONT - BOTH
SUZUKI GSR 750 2011 - 2014 FRONT - BOTH
SUZUKI GSR ABS 750 2011 - 2016 FRONT - BOTH
SUZUKI GSX S ABS 750 2017 - 2023 FRONT - BOTH
SUZUKI GSX-8R 800 2024 - 2026 FRONT - BOTH
SUZUKI GSX-8S 800 2023 - 2026 FRONT - BOTH
SUZUKI V-STROM 800DE 800 2023 - 2025 FRONT - BOTH
SUZUKI V-STROM 800SE 800 2024 - 2025 FRONT - BOTH
SUZUKI DL V-STROM ABS 1000 2014 - 2019 FRONT - BOTH
SUZUKI DL V-STROM XT ABS 1000 2017 - 2019 FRONT - BOTH
SUZUKI V-STROM 1050 2020 - 2022 FRONT - BOTH
SUZUKI V-STROM XT 1050 2020 FRONT - BOTH
SUZUKI GSF BANDIT 1200 2006 FRONT - BOTH
SUZUKI GSF BANDIT 1250 2007 - 2011 FRONT - BOTH
SUZUKI GSF BANDIT S 1250 2011 - 2012 FRONT - BOTH
SUZUKI GSF BANDIT S ABS 1250 2012 - 2016 FRONT - BOTH
SUZUKI GSX F ABS TRAVELLER 1250 2016 FRONT - BOTH
SUZUKI GSX FA 1250 2010 - 2016 FRONT - BOTH
SUZUKI B-KING 1300 2008 - 2010 FRONT - BOTH
SUZUKI GSX R HAYABUSA 1300 2008 - 2017 FRONT - BOTH

WRS product image is illustrative; the supplied item follows the BRAKING part number and specifications above.
