Superlite Steel 520 Chain Conversion Kit - Black Steel Sprocket & Chain Kit - HARLEY DAVIDSON 1200 Sportster '04-21 — Preset 22/47T

Preset configuration. This listing is for the exact configuration in the table below.

Configuration supplied

Tired of mismatched conversion kits with weak aluminum rear sprockets and crappy hardware that breaks? Superlite Chain Conversion kits are extremely durable and hassle free. All kits include high quality Superlite steel sprockets with multiple gear ratio options, premium Japanese manufactured heavy duty X-ring sealed chains, a billet aluminum rear sprocket spacer and all required Grade 8 mounting hardware. These kits are extremely strong and built to last!

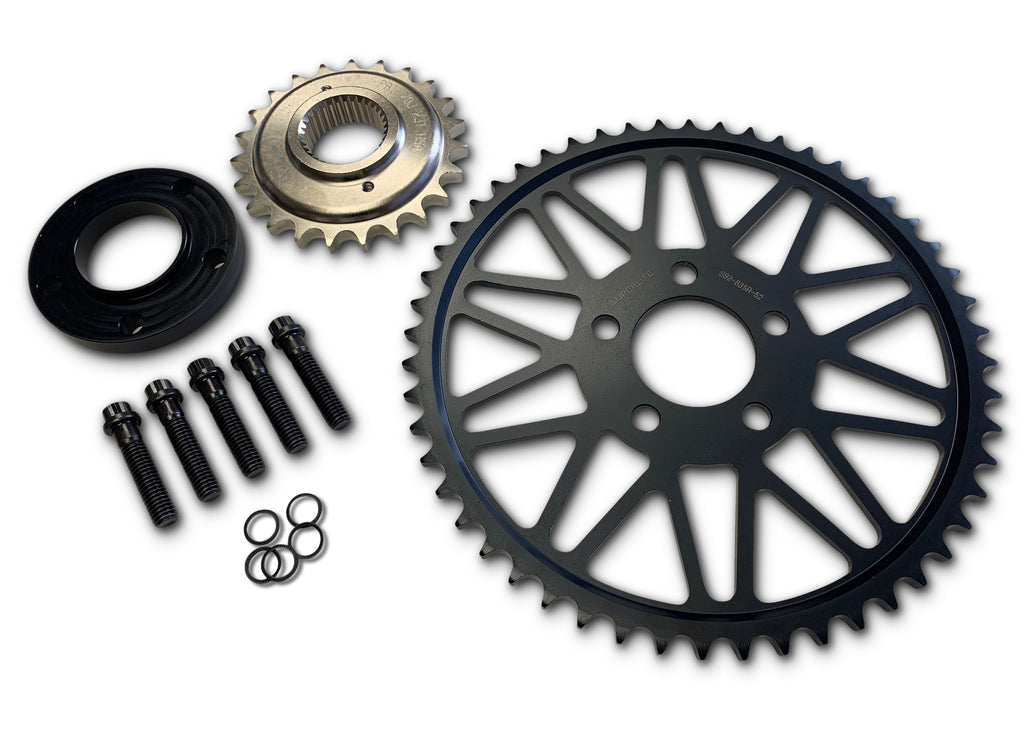

Each sprocket kit includes -

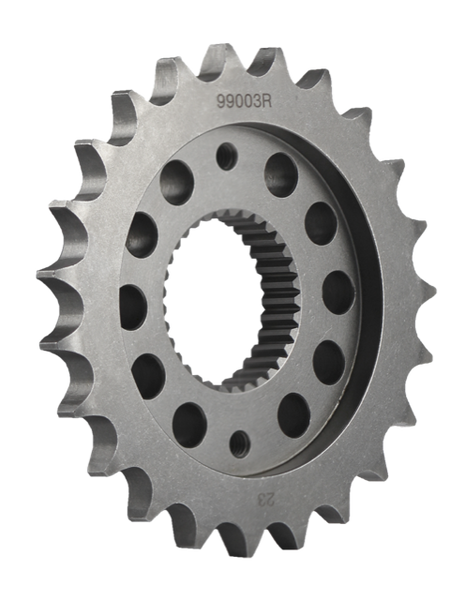

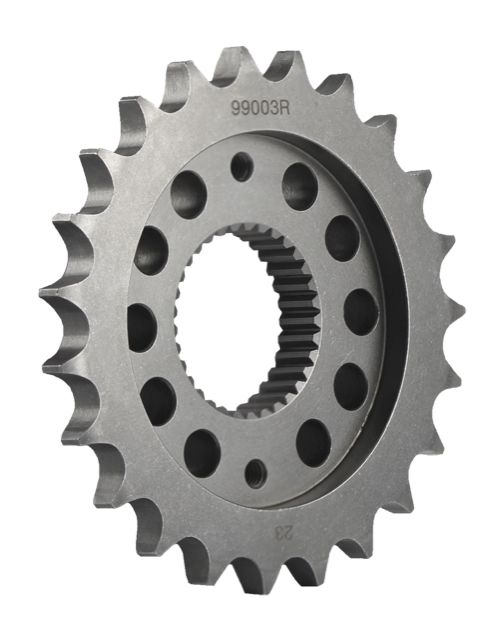

(1) XD Series chromoly steel drilled and lightened 0.500 offset front sprocket

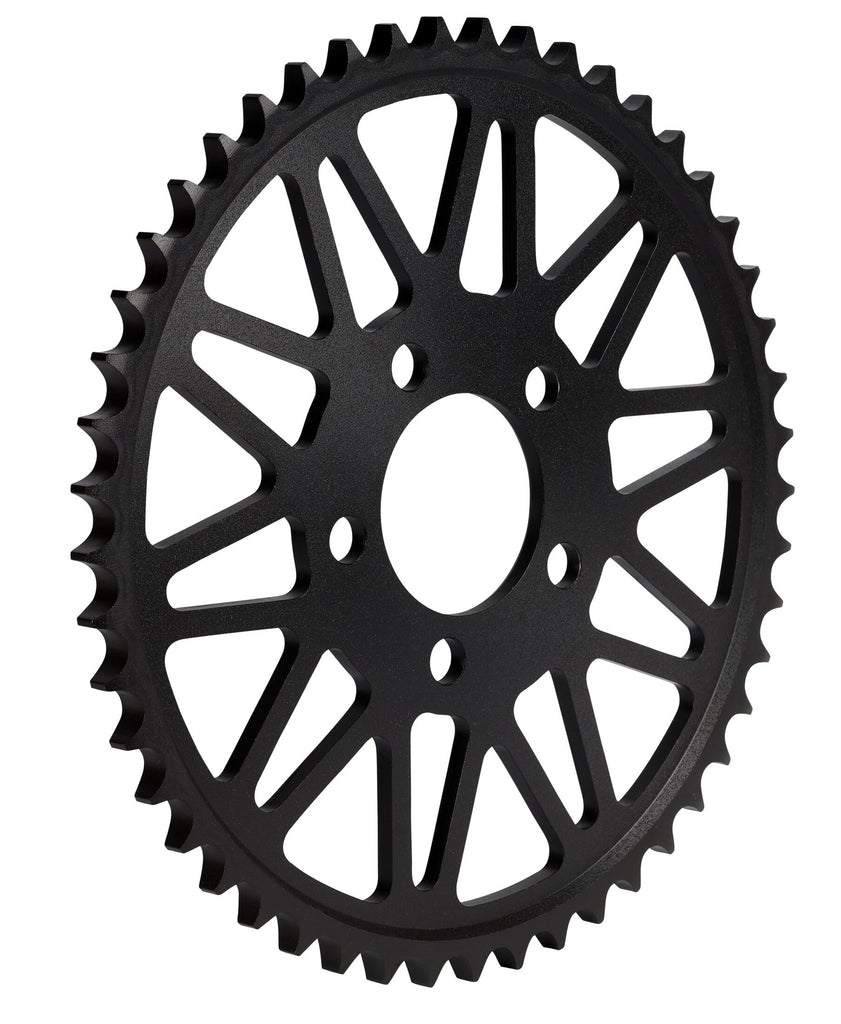

(1) CNC machined Epic design heat treated C45 black plated steel rear sprocket

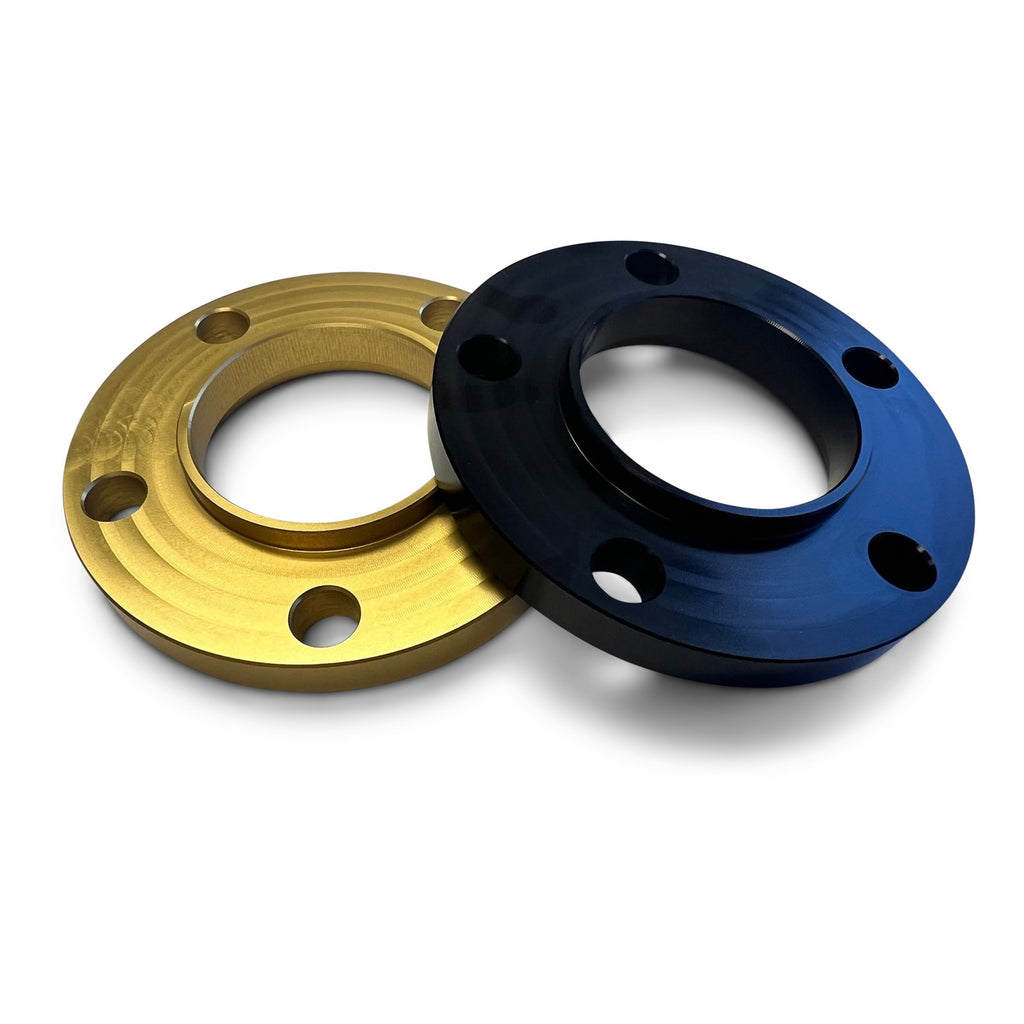

(1) CNC machined .500" aluminum black hard anodized rear sprocket spacer with Grade 8 mounting hardware

(1) High strength 520 pitch low friction X-Ring sealed chain (Choice Of Colors)

(1) Matching Rivet style connecting link (Chain Tool Required)

Chain Specifications -

D.I.D. 520 Pro Street VX3 Series X-ring Sealed Chain - 800cc Rated - Recommended for stock HD applications (135HP)

D.I.D. 520 Super Street Extreme Duty ZVMX Series X-ring Sealed Chain - 1400cc Rated - Recommended for modified | Big Power applications (220HP)

Stock Gear Ratio - Choose 24|51 sprocket sizes

Highway Gear Ratio (Lower Cruising RPMs) - Choose +1 larger front sprocket (25T) and/or a smaller rear sprocket

Increased Torque/Stunt Ratio - Choose -1 smaller front sprocket (23T) and/or a larger rear sprocket

Part number: R99A12001

Catalog Fitment

• Harley Davidson — Sportster Models / 883|1200 Sportster '04-22

Match the chain pitch, tooth count, wheel specification, and motorcycle year before ordering.
