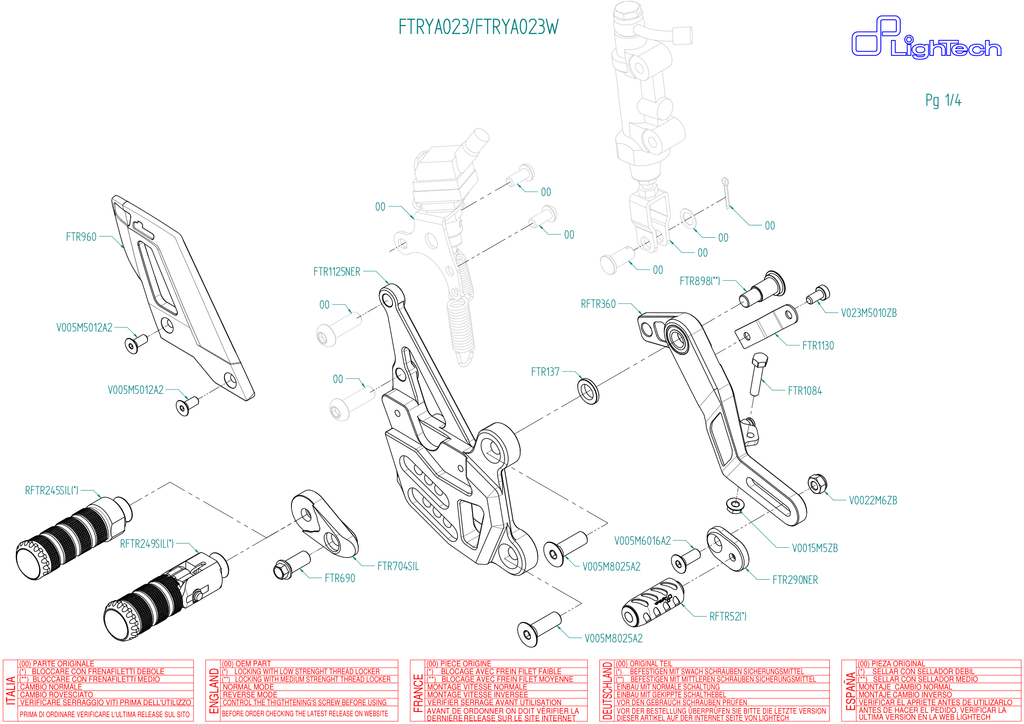

LIGHTECH FTRYA023 / FTRYA023W manufacturer brake-side exploded technical drawing; fixed and folding footpeg options shown; not a complete kit photograph

LIGHTECH

LIGHTECH | Adjustable Rearsets for Yamaha R9 2025

$627.27

付款方式

USD

PayPal－美元付款

海外訂單可透過 PayPal 以美元付款。

TWD

綠界科技信用卡－新台幣付款

台灣訂單確認後，我們會提供綠界科技安全付款連結，並以新台幣完成付款。

Can’t find the part or product you need?

Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.

Request Product Sourcing →
INTERNATIONAL ORDERS

Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.

LighTech adjustable rearsets for Yamaha R9 2025. Supports standard and reverse shifting; compatible with the electronic quickshifter.

  • FTRYA023: fixed footpegs, fixed toe pegs and composite heel guards.
  • FTRYA023W: folding footpegs, fixed toe pegs and composite heel guards.
  • FTRYA023R: folding footpegs and toe pegs, carbon heel guards and titanium hardware.
  • Compatible with the optional RFTR244 UP & DOWN adjustment kit.

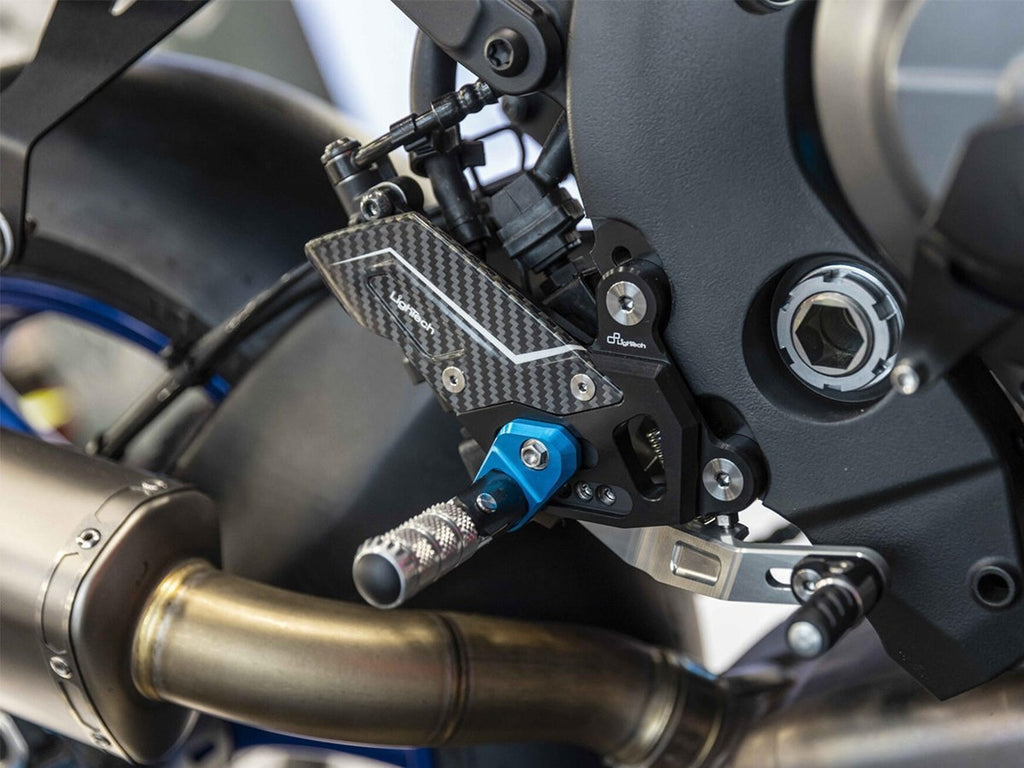

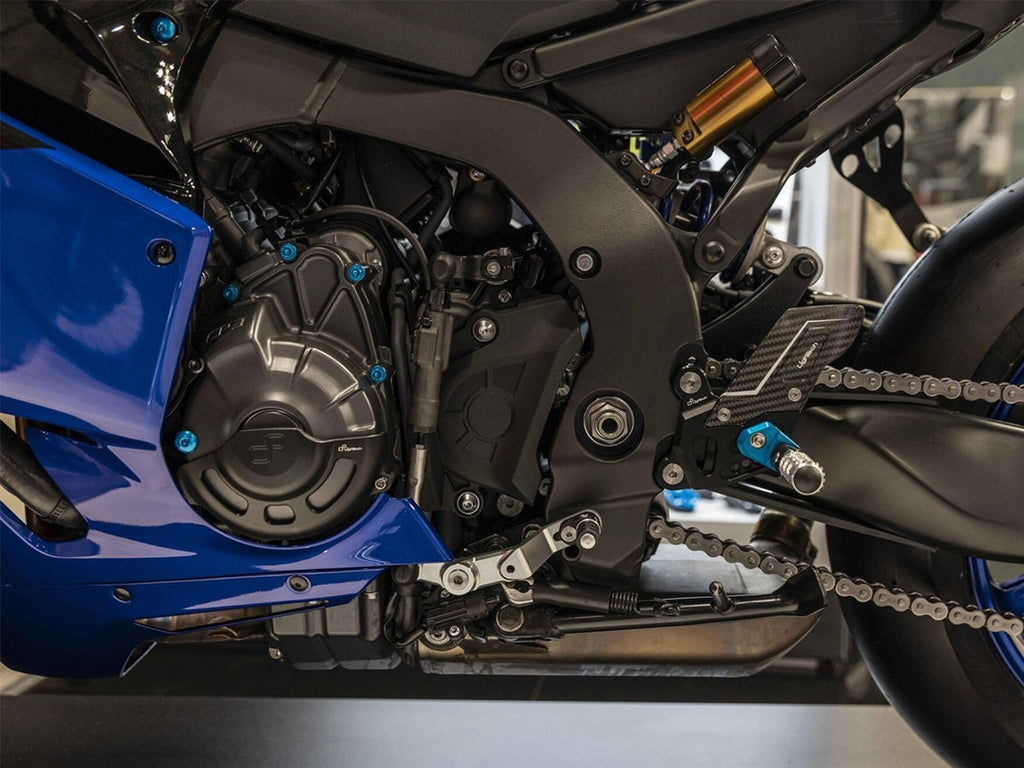

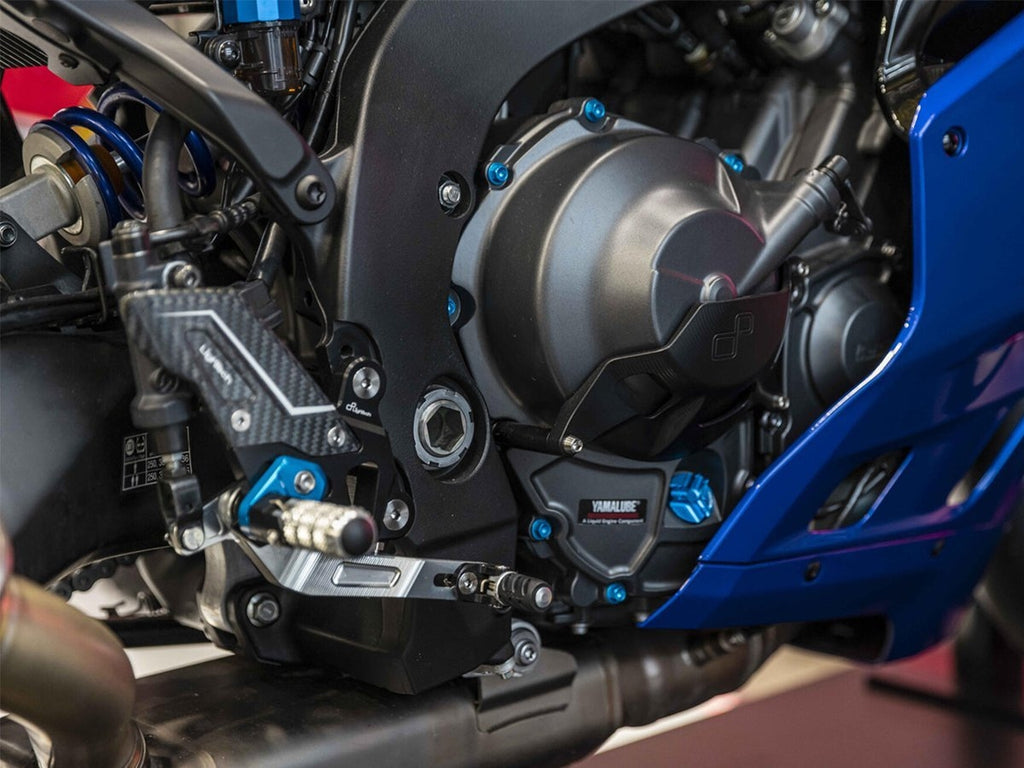

Photos show the R version installed with optional blue footpeg holders. Standard equipment and appearance vary by selected version; optional components shown are not included unless stated.

Machined from solid Ergal 7075-T6 aluminum, these LighTech rearsets provide a rigid platform with adjustable footpeg height and rearward position.

Footpeg and shift configuration

Part number Footpeg configuration Shift pattern
FTRYA023 Fixed footpegs; fixed toe pegs Standard or reverse (GP) shift
FTRYA023W Folding footpegs; fixed toe pegs Standard or reverse (GP) shift
FTRYA023R Folding footpegs; folding toe pegs; R version Standard or reverse (GP) shift

The R version uses carbon heel guards and titanium screws. Select the exact part number and configuration required for your motorcycle.

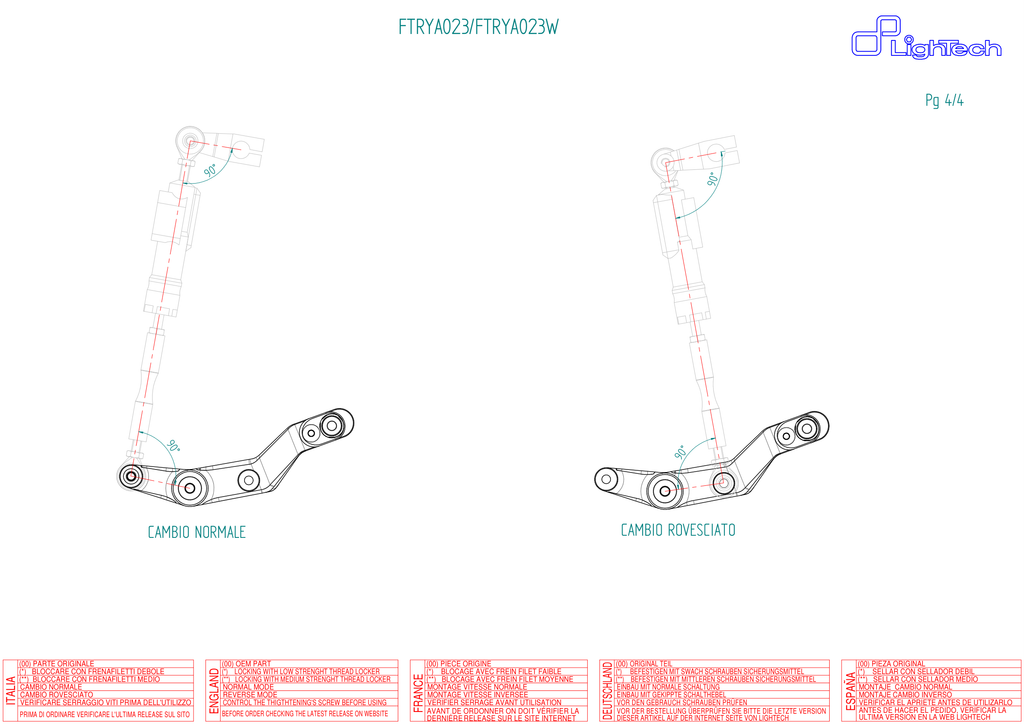

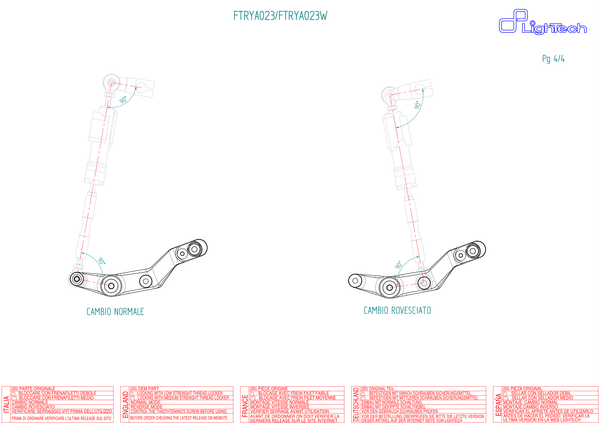

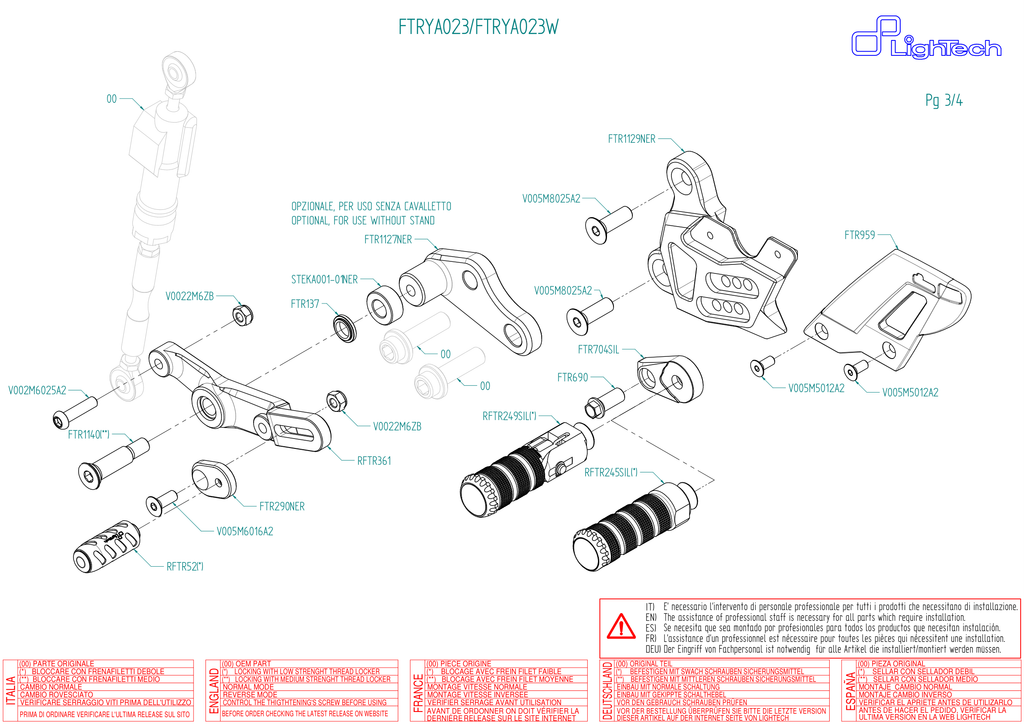

Technical drawings labelled FTRYA023 / FTRYA023W show the fixed- and folding-footpeg versions, including the two footpeg options and standard/reverse shift layouts. They are technical illustrations, not photographs of a complete supplied kit. The race-use side-stand replacement bracket shown in the shift-side drawing is optional.
