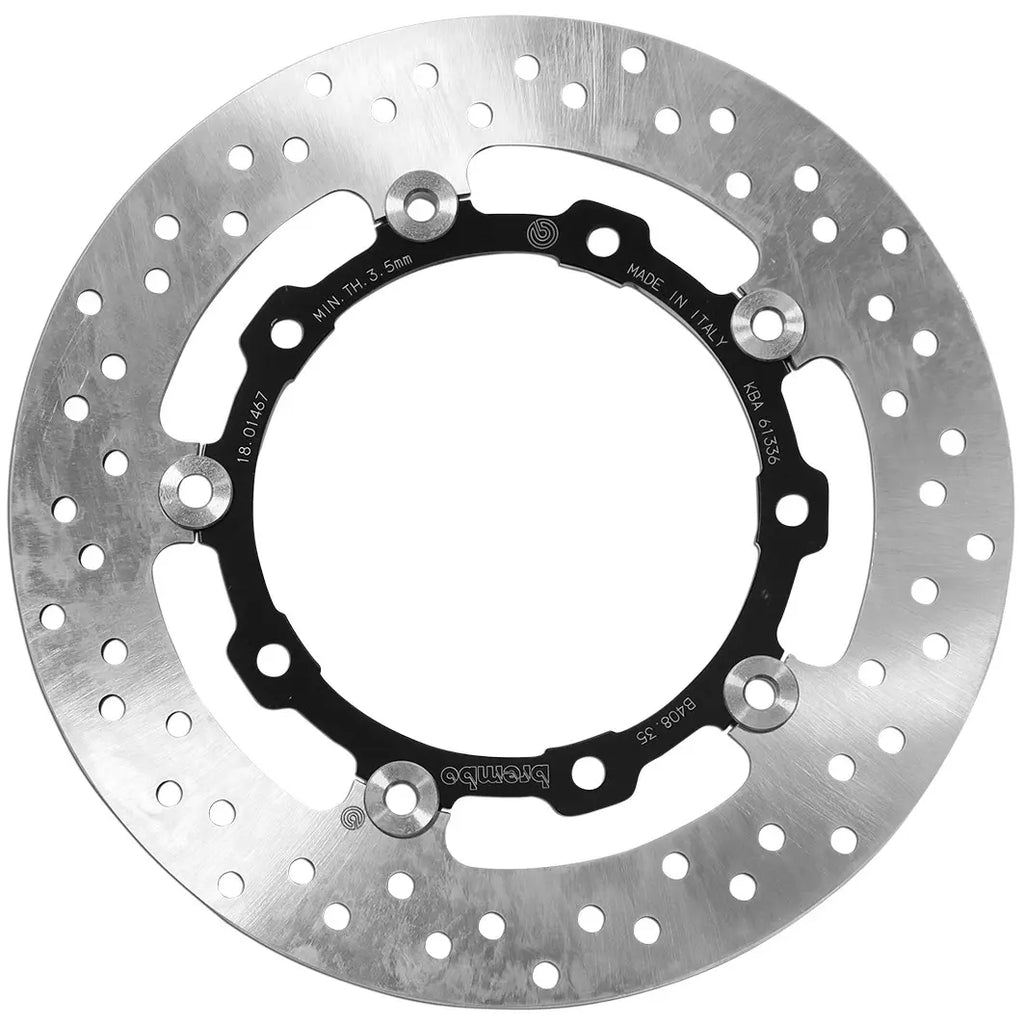

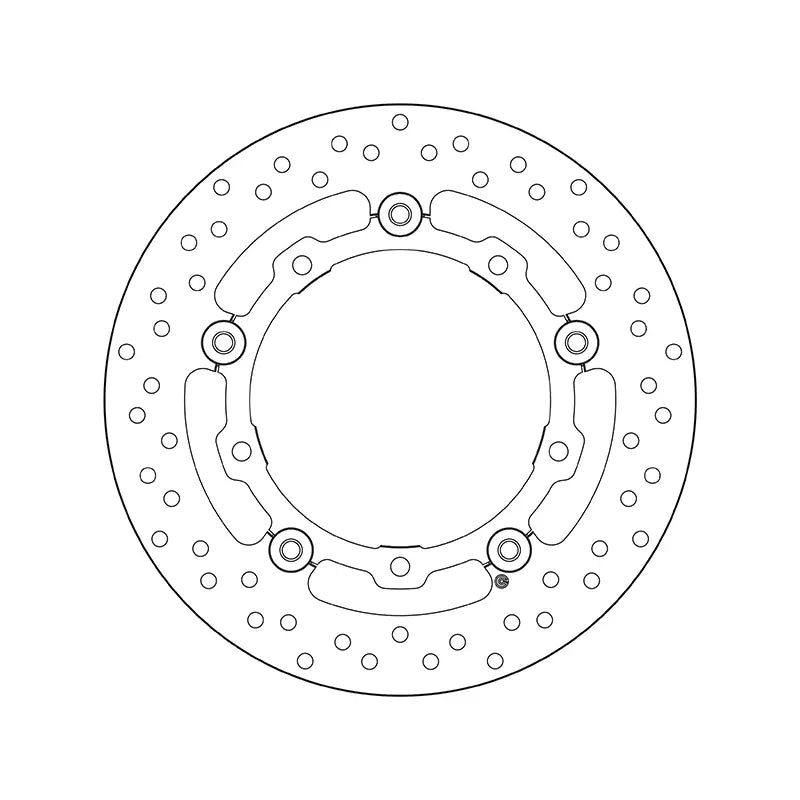

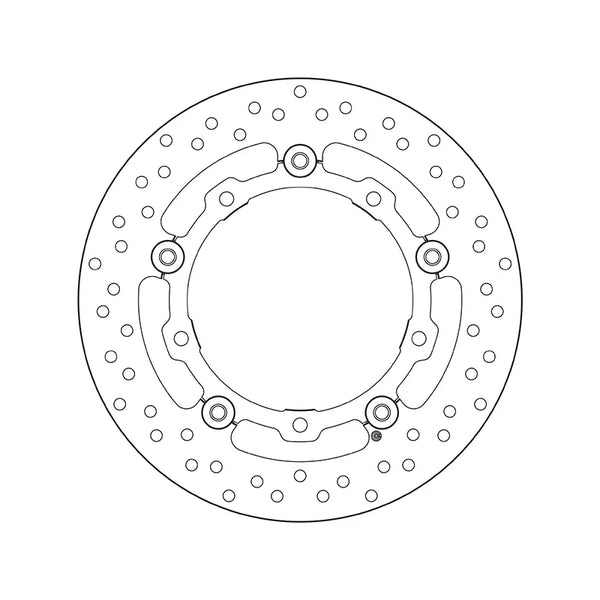

BREMBO Serie Oro 267mm Floating Front Brake Disc – 78B40835

BREMBO Serie Oro floating front brake disc, part number 78B40835. Designed as an OE-equivalent replacement with a stainless-steel braking band and a CNC-machined, anodized aluminium-alloy hub.

• Diameter: 267 mm
• Thickness: 4 mm
• Mounting holes: 5 × 8.5 mm
• Centering diameter: 132 mm
• Disc type: Floating
• Units per box: 1

WRS lists this disc for Yamaha XMAX 400 / Iron Max applications from 2016. Confirm fitment against BREMBO part number 78B40835 before ordering.
