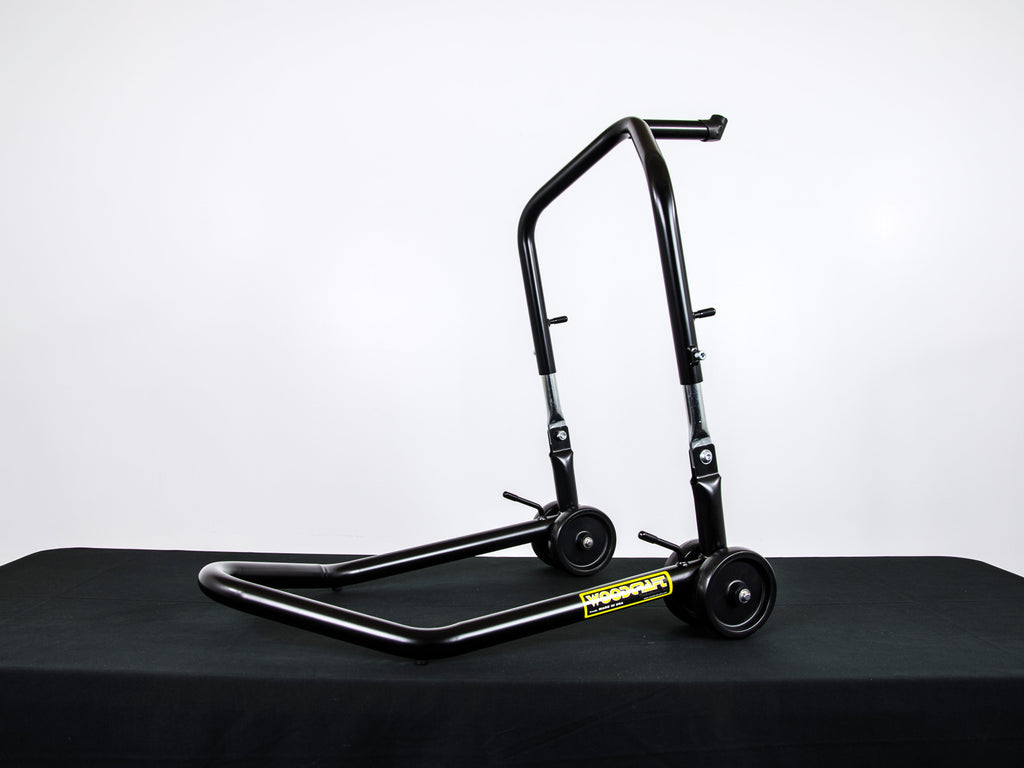

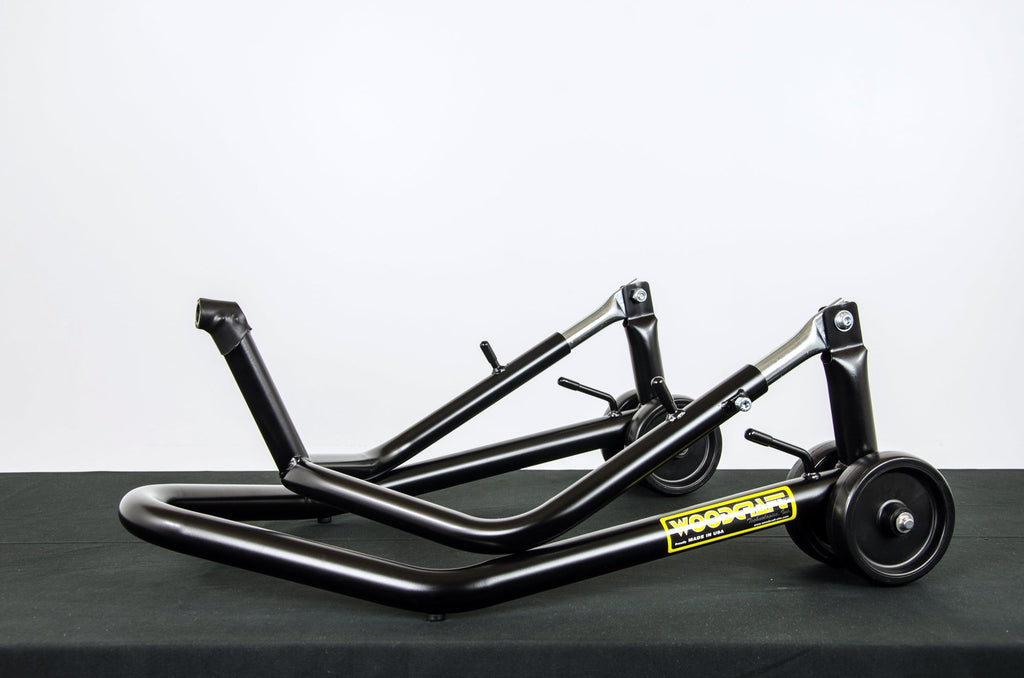

Woodcraft 22-0106 Front Triple Tree Adventure Bike Stand with pin

All stands are the same right? Not exactly. We interviewed top mechanics and asked them what they feel are the most important features in a stand. The overwhelming responses were: low lift effort- clearance for working- and wheel design (for ease of rolling and stability).

We've incorporated all these features into our full-range Woodcraft Bike Stands- all proudly built in the USA.

• STABILITY--

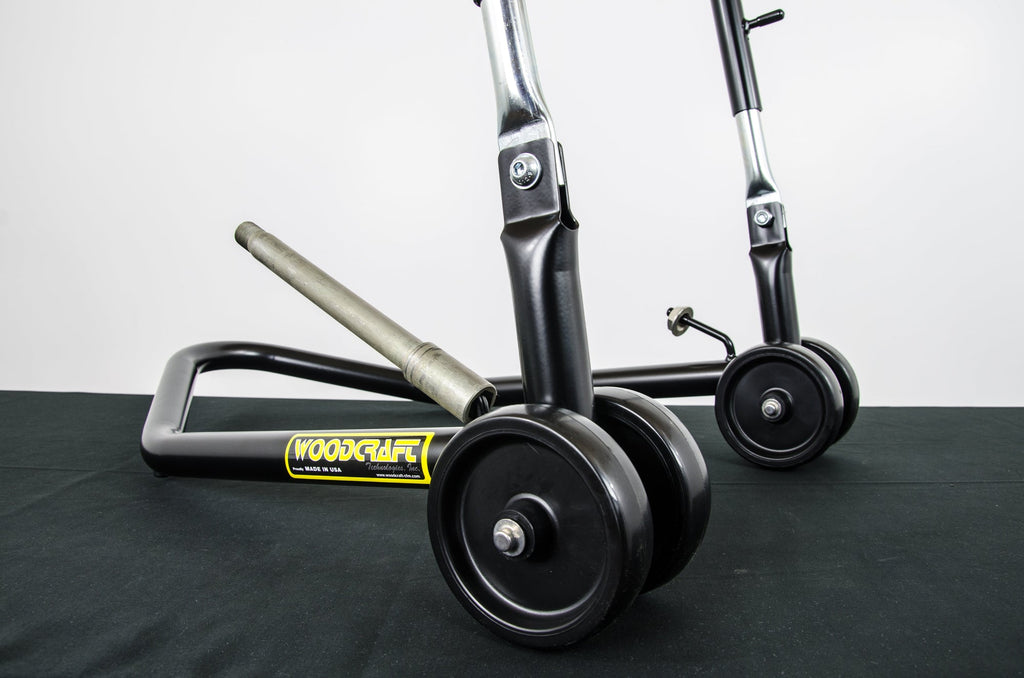

  Woodcraft stands provide the highest standard in the Industry for our stand wheels. NEW QUAD 5" wheels are unmatched for both stability and their ability to roll smoothly over rough surfaces.
• NEW UPPER HOOP--
  We've redesigned the upper hoop so now it provides an easier installation of the stand into the triple tree with a much better fairing clearance.
• STRONGER and LIGHTER--
  1.5" OD base handle allows you lift the stand with low physical effort without sacrificing stability or work space.
• INTEGRATED AXLE AND HARDWARE HOLDERS--
  Keep your axle and hardware off the floor and from rolling around in the dirt.
• INTEGRATED RADIAL MOUNT CALIPER HANGERS--
  Keep brake calipers from dangling and pressure off of them during wheel changes.
• Lightweight, only 14.6lbs

NOTE: Height adjustment ranges from 32"-37"

The best way to measure for a motorcycle head lift stand pin is to directly measure the steer stem diameter at the bottom where the pin will be inserted.

We've found that the easiest way to accomplish this is to take a socket from your toolbox, and find the one that fits with the least amount of wiggle room.

Take that socket and use a set of calipers to measure the outside diameter, this will give you the needed pin size. We offer a wide range of pins, please select the closest pin once your number is rounded down. Thank you.
