UNIT GARAGE Öhlins fork kit BMW R18 + Unit garage triple clamp with radial fork feet

Ohlins USD fork kit BMW R18 + Unit garage triple clamp with radial fork feet

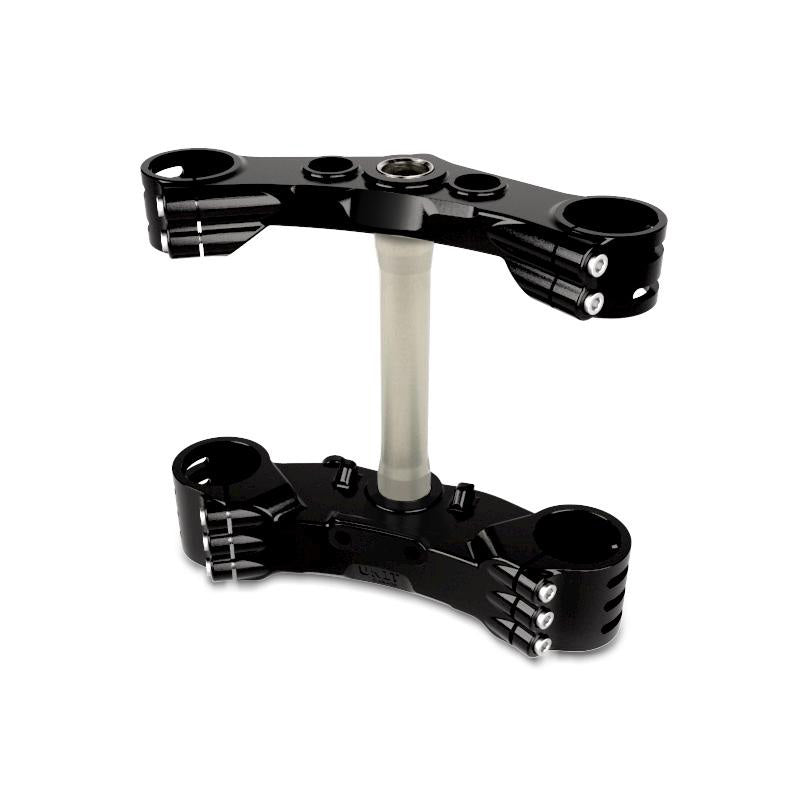

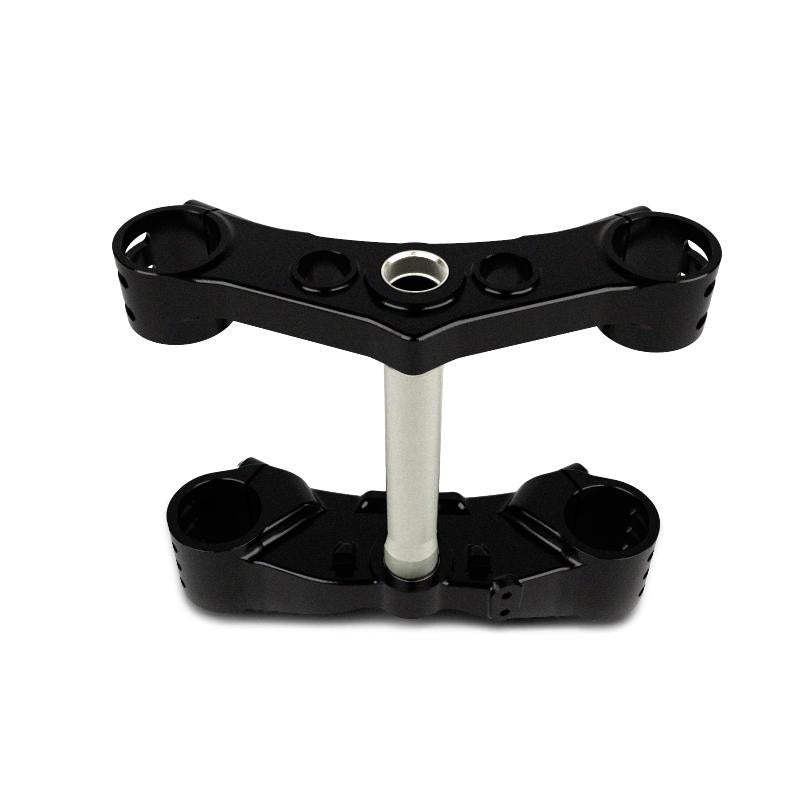

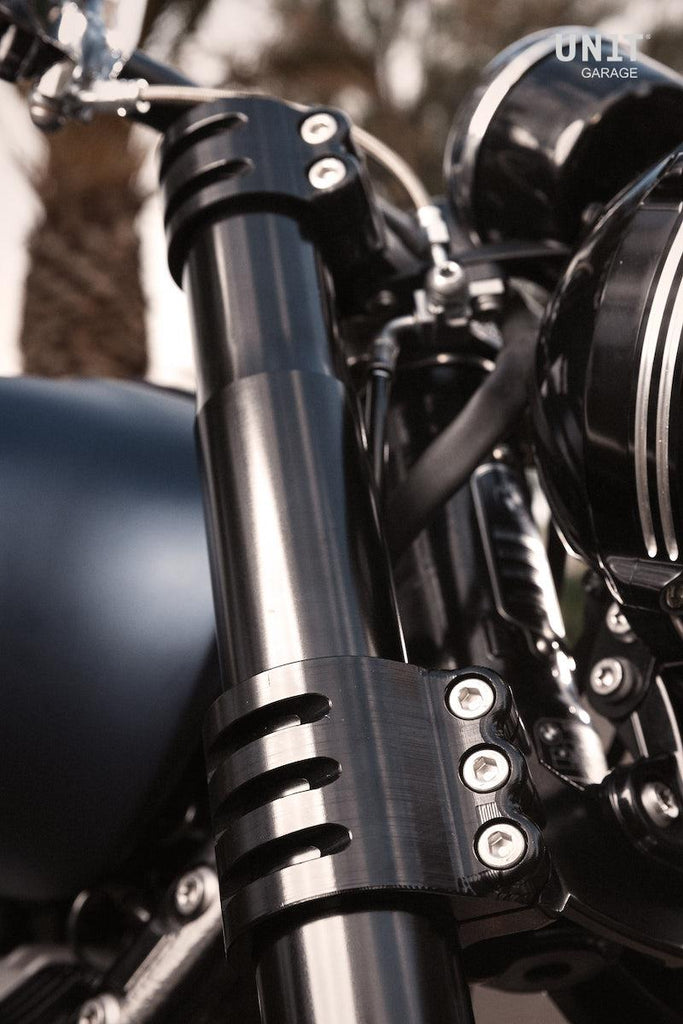

To make your R18 more performing we have studied and tested this complete kit that allows the assembly of an Upside Down Ohlins fork. The bike changes character and becomes much more fun and usable on any type of path. This will allow you to have customized racing suspension and driving comfort will be fantastic. We have implemented a fantastic Ohlins FG 424 fork with plates and feet designed ad-hoc and machined from solid to the CNC. Compression and rebound adjustments are made easily. The design of plates and feet has been redesigned to make the whole front very "bad", and make everything plug and play. You can reuse: the original headlight holder and handlebar risers, the steering head, clamping nuts and bearings.

-Complete fork developed to our specifications is equipped with a sophisticated hydraulic system that guarantees exceptional performance.
-Set and tested expressly for the R18

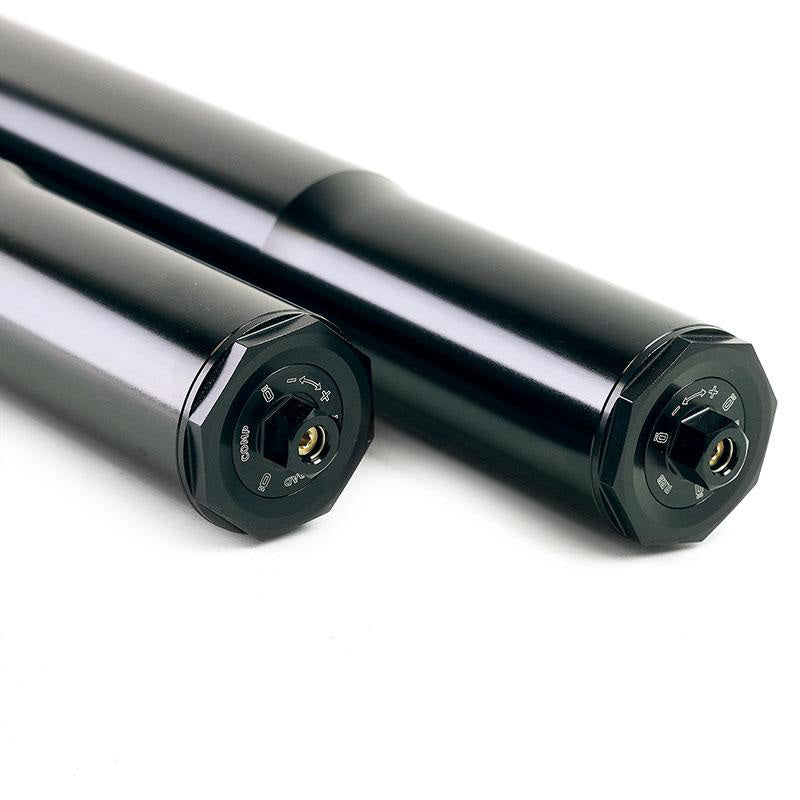

-Adjustable in compression and extension

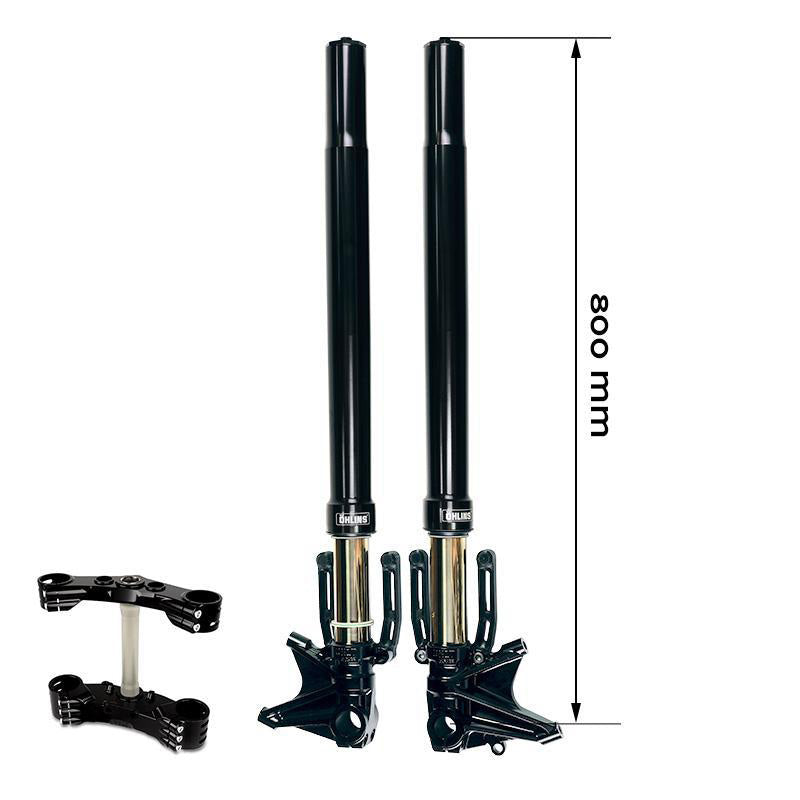

- Length 800 mm
-Stroke mm120
- 43 mm stems
-The original brake discs are reused
-Fender brackets included (the original one or our code 3414 have the same fixing point)

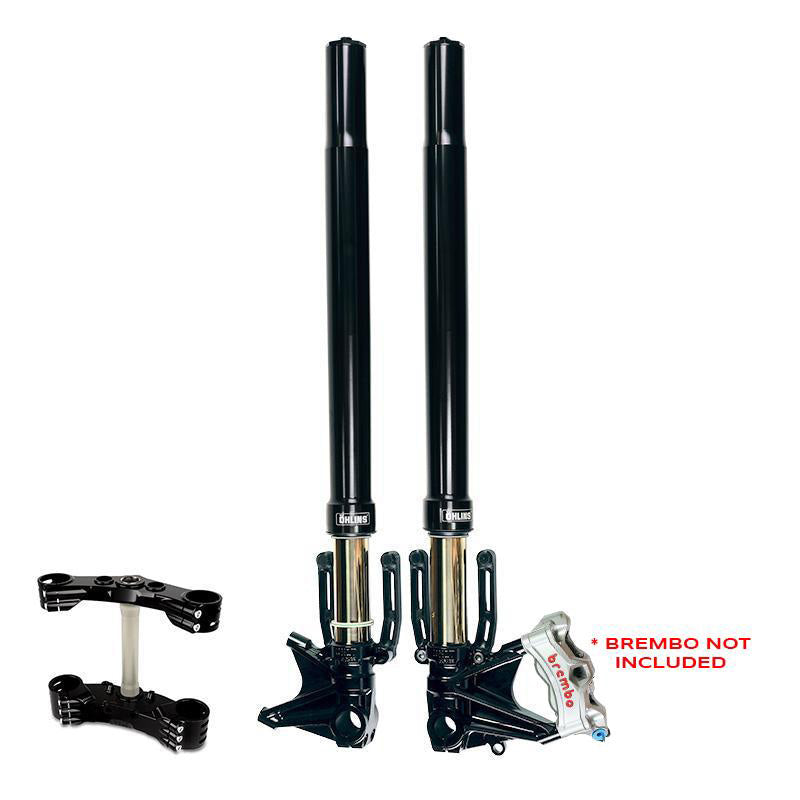

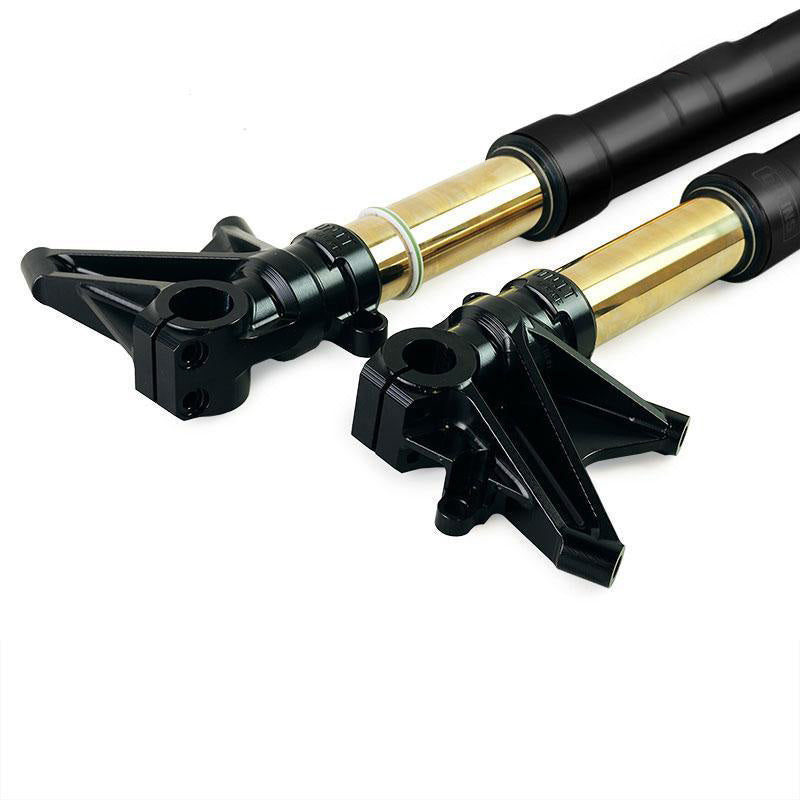

-Prepared for radial fork feet center distance 100 mm see example Brembo in the photo (use suitable screws with M10x1.25 pitch / brake calipers / brake pipes and caliper screws not included)

Caution!!!
Correct assembly of this product is important for your safety and requires the intervention of an experienced technician.

To offer you the best we are constantly improving our products in detail. The images may refer to a previous version.
