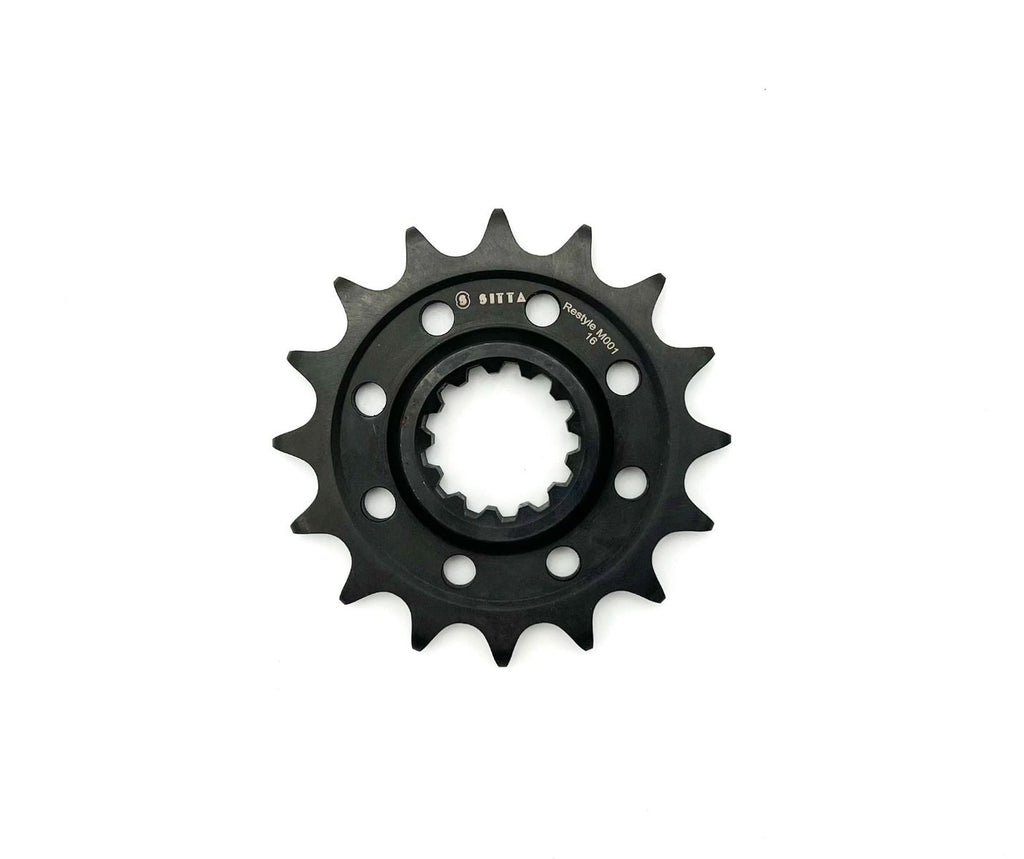

Sitta M001 16-tooth front sprocket series illustration; supplied pitch, tooth count and lightening-hole design follow the selected exact SKU.

Sitta

SITTA M001 Steel Front Sprocket - Yamaha - 520

$46.40

Payment options

USD

PayPal — charged in USD

Pay in US dollars through PayPal.

TWD

Credit card — charged in TWD via ECPay

Place your order first. We will confirm the payment-time TWD amount and send a secure ECPay card payment link.

Can’t find the part or product you need?

Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.

Request Product Sourcing →
INTERNATIONAL ORDERS

Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.

SITTA M001 CNC machined steel front sprocket for the verified Yamaha applications below. Select the required tooth count; the exact selected SKU identifies the supplied specification.

  • Chain pitch: 520
  • Tooth counts: 14, 15, 16, 17
  • Material: 20CrMoTi steel (DIN 1.8401)

Compatible applications

Motorcycle Model years Verified tooth counts
Yamaha YZF-R1 2015–2022 14, 15, 16, 17
Yamaha YZF-R1M 2015–2022 14, 15, 16, 17
Yamaha MT-09 2013–2017 15, 16, 17
Yamaha MT-09 Tracer 2015–2017 15, 16, 17
Yamaha FZ8 N 2010–2013 15, 16, 17
Yamaha FZ8 S Fazer / SA 2010–2013 15, 16, 17

Confirm the exact model year, output-shaft spline, sprocket offset and chain alignment before ordering. Use a matching 520 chain and rear sprocket. Converting from the original pitch requires the corresponding drivetrain components.

The image illustrates the same M001 series with 16 teeth. Supplied pitch and tooth count follow the selected exact SKU; tooth count and lightening-hole design may differ from the illustration. One front sprocket is supplied. Chain, rear sprocket and retaining hardware are not included.

Availability and dispatch timing are confirmed after ordering. Shipping is calculated separately.
