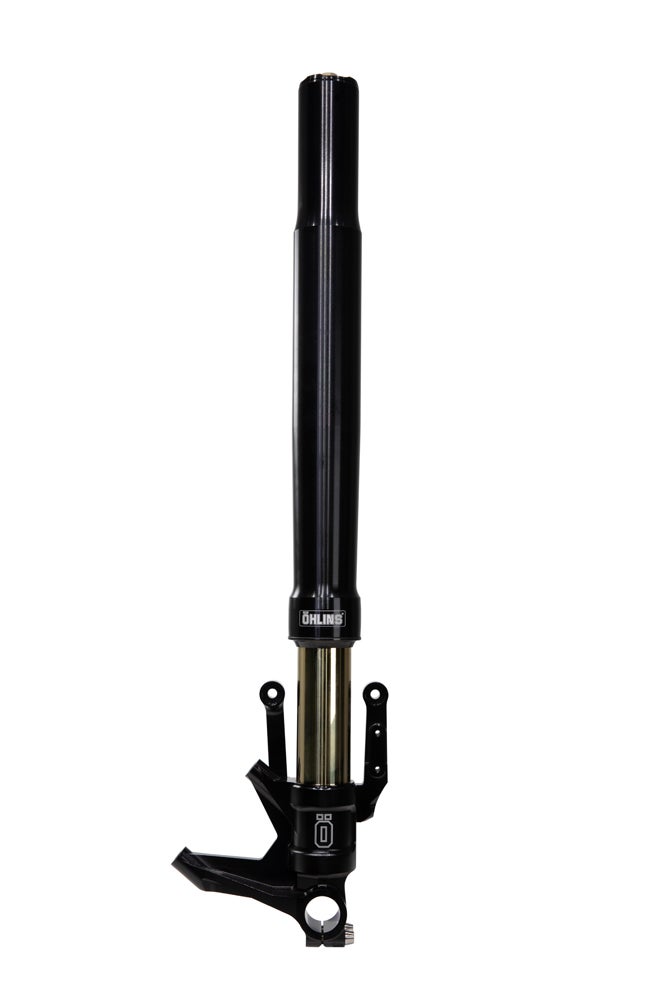

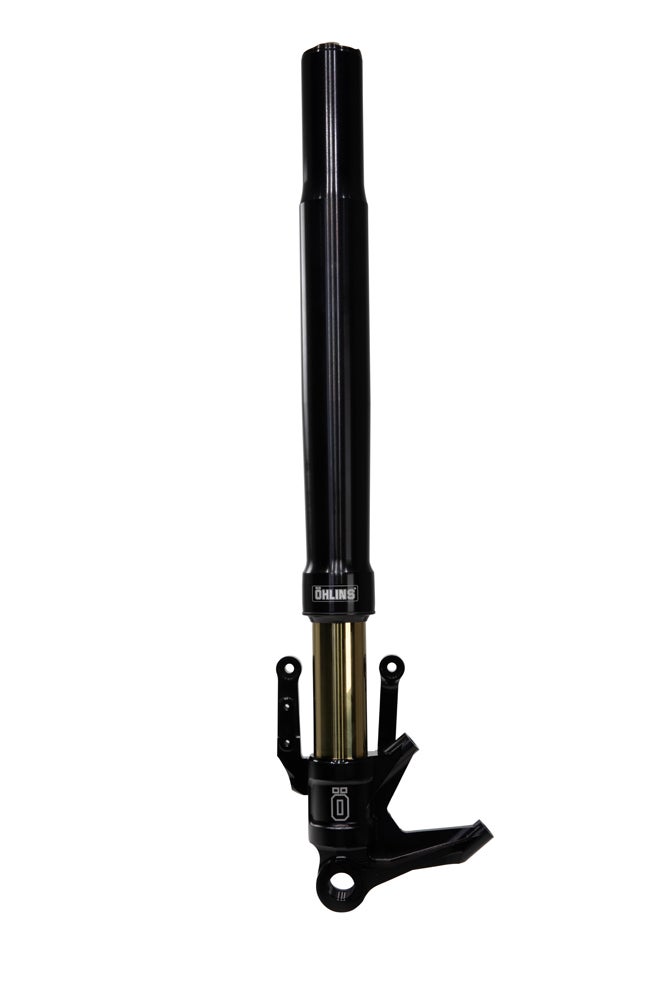

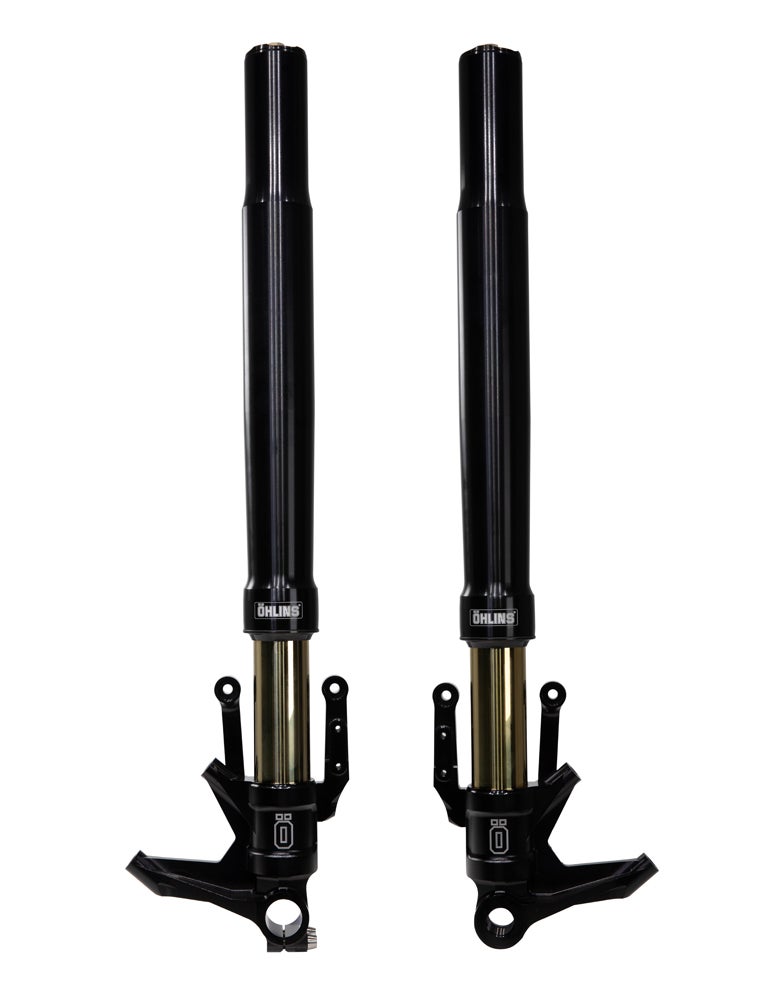

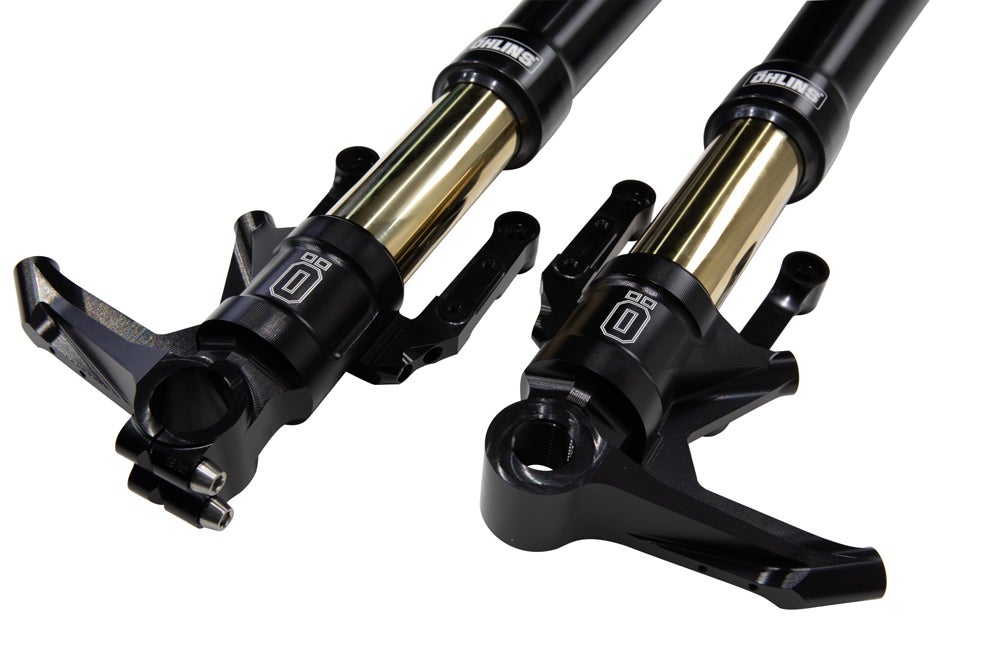

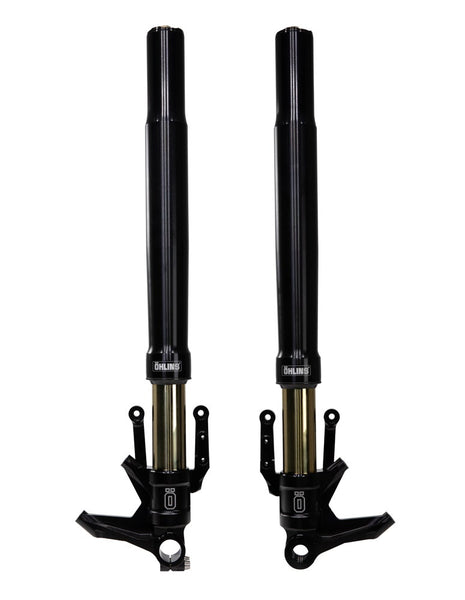

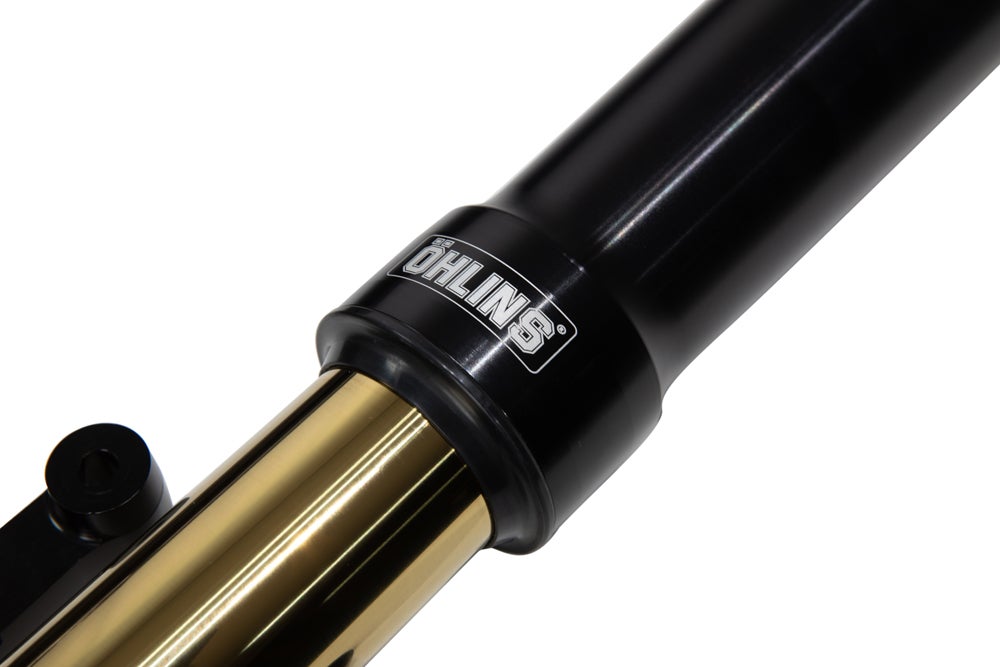

ÖHLINS FGRT 307 Blackline NIX 30 Front Fork – Harley-Davidson CVO Street / Road Glide

Product overview

The ÖHLINS FGRT 307 Blackline front fork brings Öhlins front-end suspension technology to Harley-Davidson CVO baggers. The NIX 30 damping system separates compression and rebound damping for controlled, precise response.

Key features

• 48 mm Blackline front fork
• NIX 30 damping technology
• Separate rebound and compression adjustment
• Spring preload adjustment in the top cap

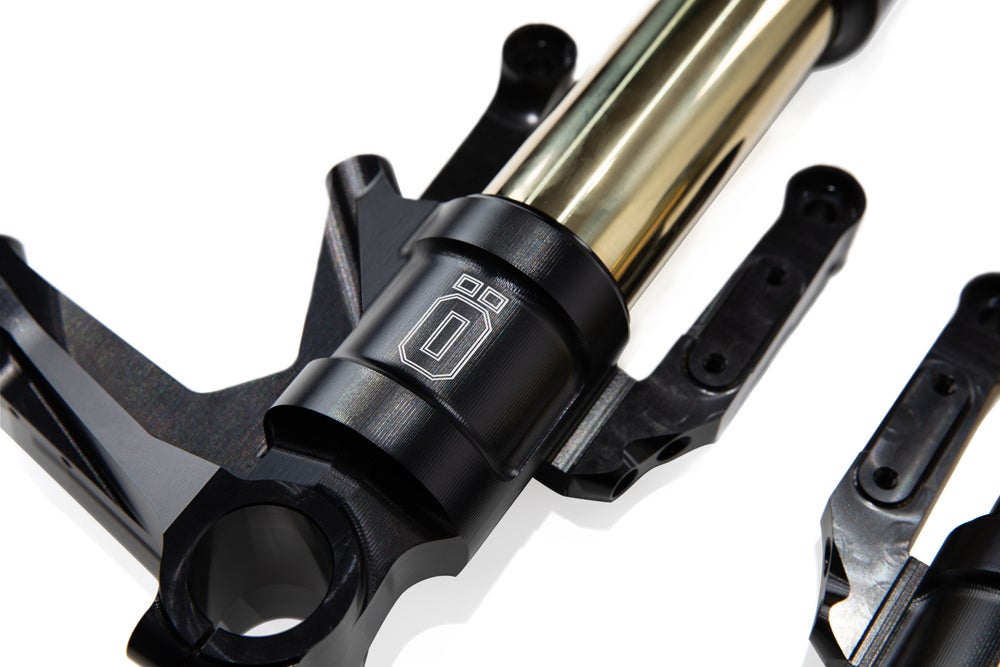

• Fork bottom design inspired by Bagger Racing

Technical specifications

• Length: 730 mm
• Stroke: 117 mm
• Spring: 04744-12
• Spring rate: 12 N/mm
• Recommended oil: ÖHLINS 01309

Vehicle fitment

• Harley-Davidson CVO Street Glide: 2023–2025
• Harley-Davidson CVO Road Glide: 2023–2025

For 19-inch front wheel applications only. Does not fit standard Street Glide or Road Glide models.

Part Number

FGRT 307
