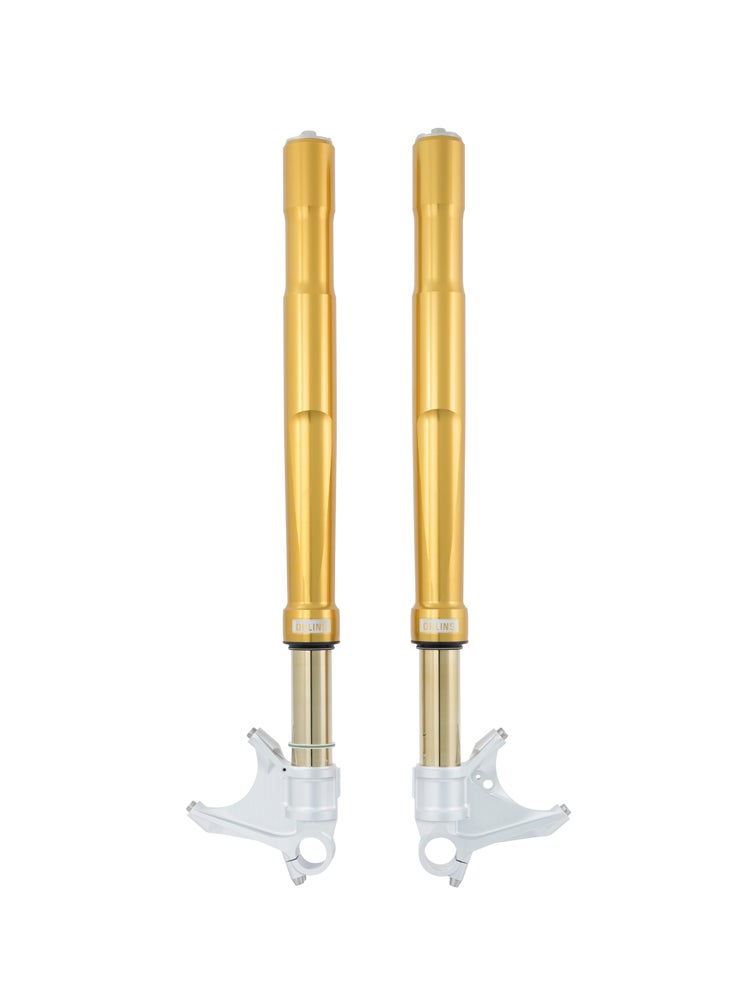

ÖHLINS FGRT 219 Road & Track NIX 30 Front Fork – Yamaha MT-10 / YZF-R1 / YZF-R6

Product overview

The ÖHLINS FGRT 200-series Road & Track front fork delivers race-proven NIX 30 performance for road and track use. This FGRT 219 application is engineered to improve front-end feedback, braking support, stability, and suspension tunability.

Key features

• ÖHLINS NIX 30 cartridge technology
• Compression damping in one fork leg and rebound damping in the other
• All damping adjustments positioned at the top of the fork
• Weight- and stress-optimized fork-bottom design
• Reduced weight and fully serviceable construction
• Developed for high-performance street and supersport applications

Technical specifications

• Product family: FGRT Front Fork
• Damping technology: FGRT / NIX 30
• Fork diameter: 43 mm
• Length: 745 mm
• Stroke: 120 mm
• Spring: 04744-10
• Spring rate: 10 N/mm
• Oil: ÖHLINS 1309
• TÜV: Yes

Vehicle fitment

• Yamaha MT-10 — 2016–2021
• Yamaha YZF-R1 / YZF-R1M — 2015–2024
• Yamaha YZF-R6 — 2017–2025

Part Number

FGRT 219
