MOTOGADGET mo.view club 60 flip

Our frameless mirror series, mo.view unique worldwide. What makes our mirrors special is the patented mirror surface, which is crafted directly from the metal of the frame. The aluminum itself serves as the mirror surface.

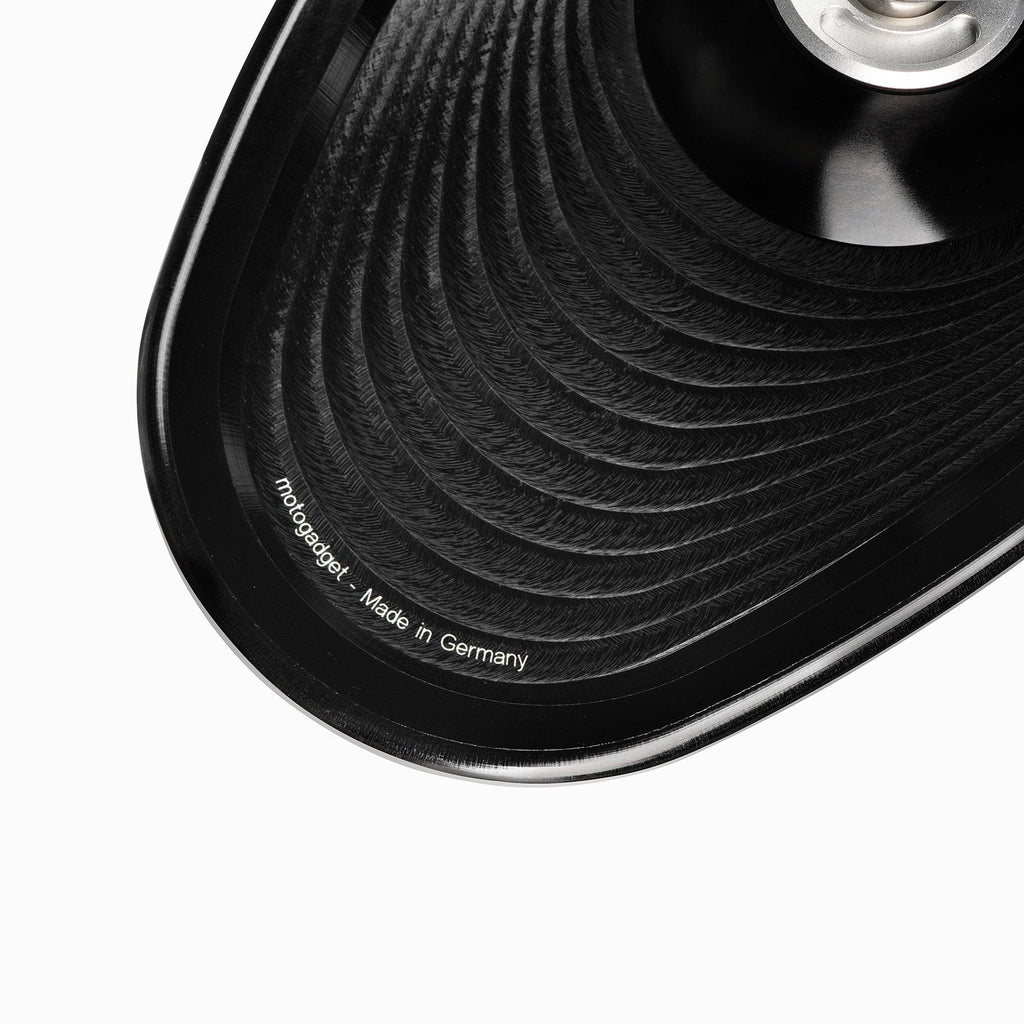

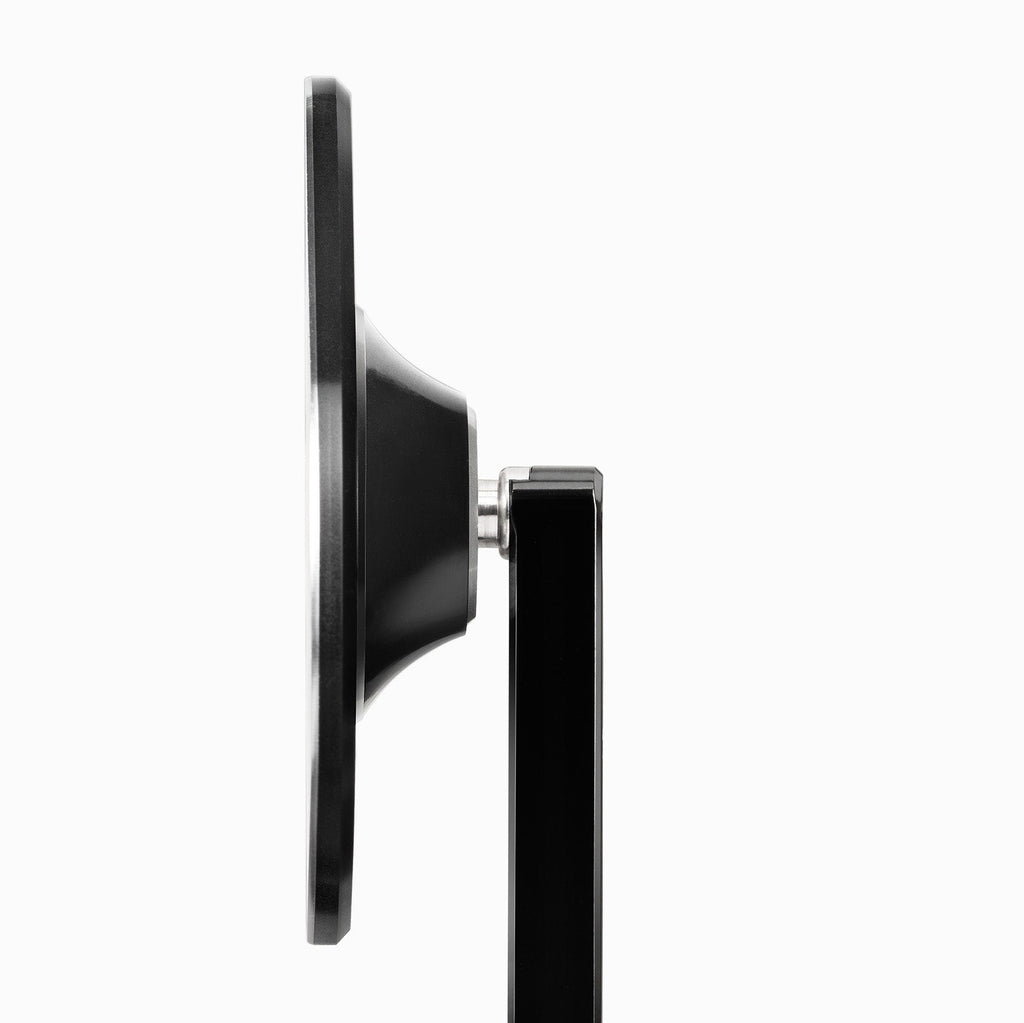

The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame. The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

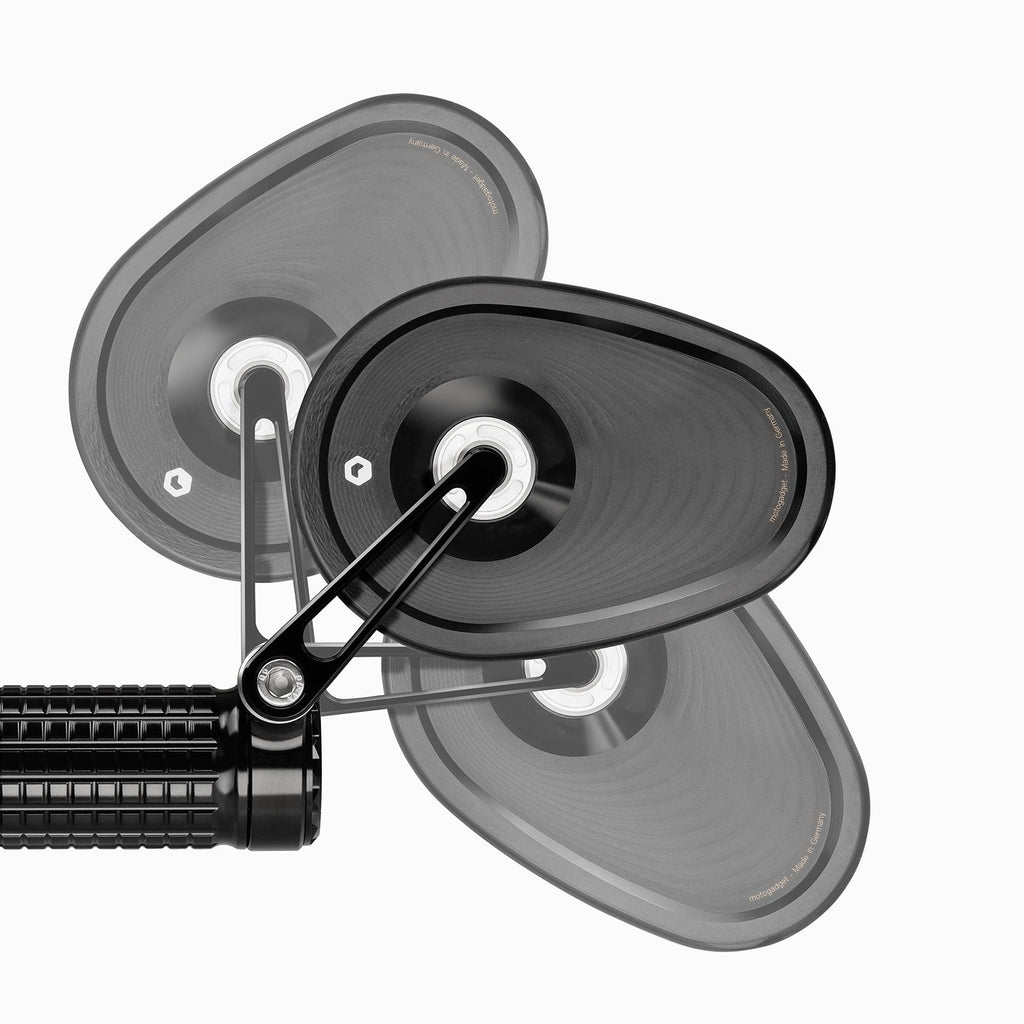

A special feature of the flip series mirrors is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.

Extremely practical for narrow passages, space problems in the garage or for transportation. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate even at high speeds when fitted correctly.

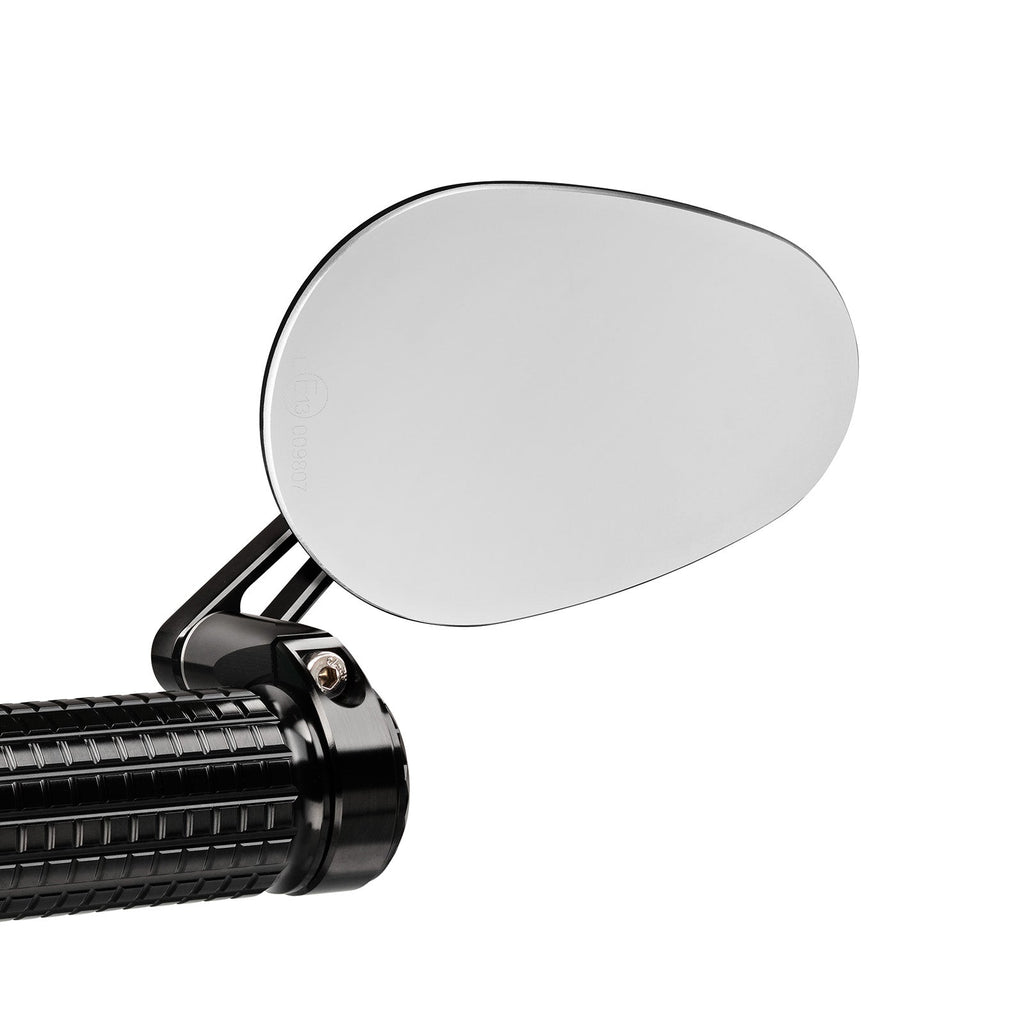

The mirror can be mounted either above or below the handlebars and is suitable for both the right and left sides. It mounts directly onto the handlebar end (22 mm and 1 inch) or, if the grips and controls cannot be moved, using a mo.view adapter.

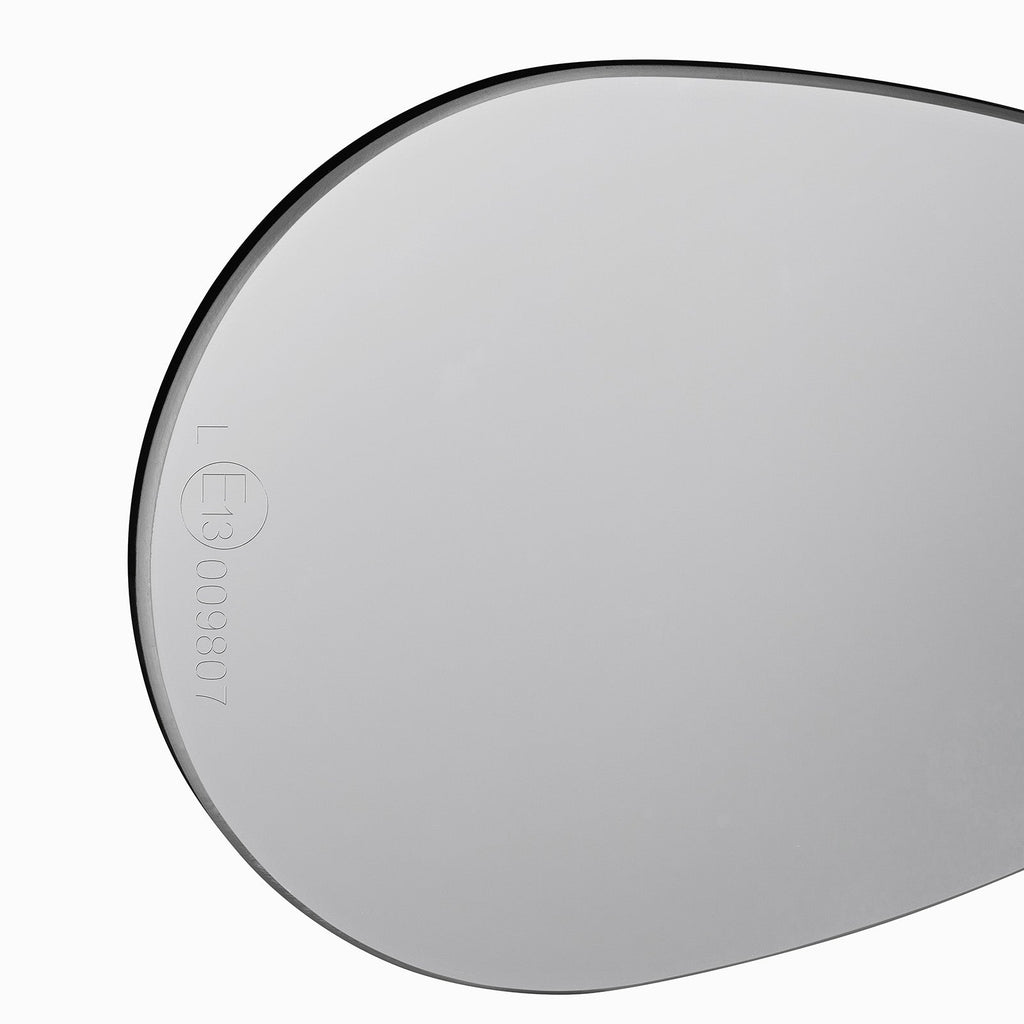

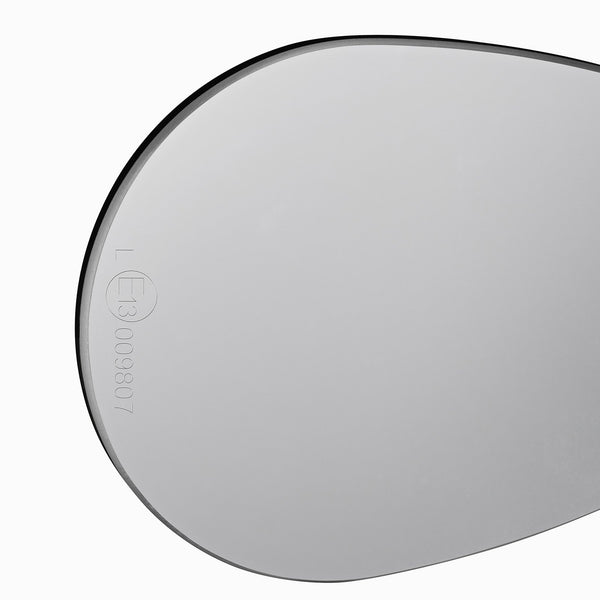

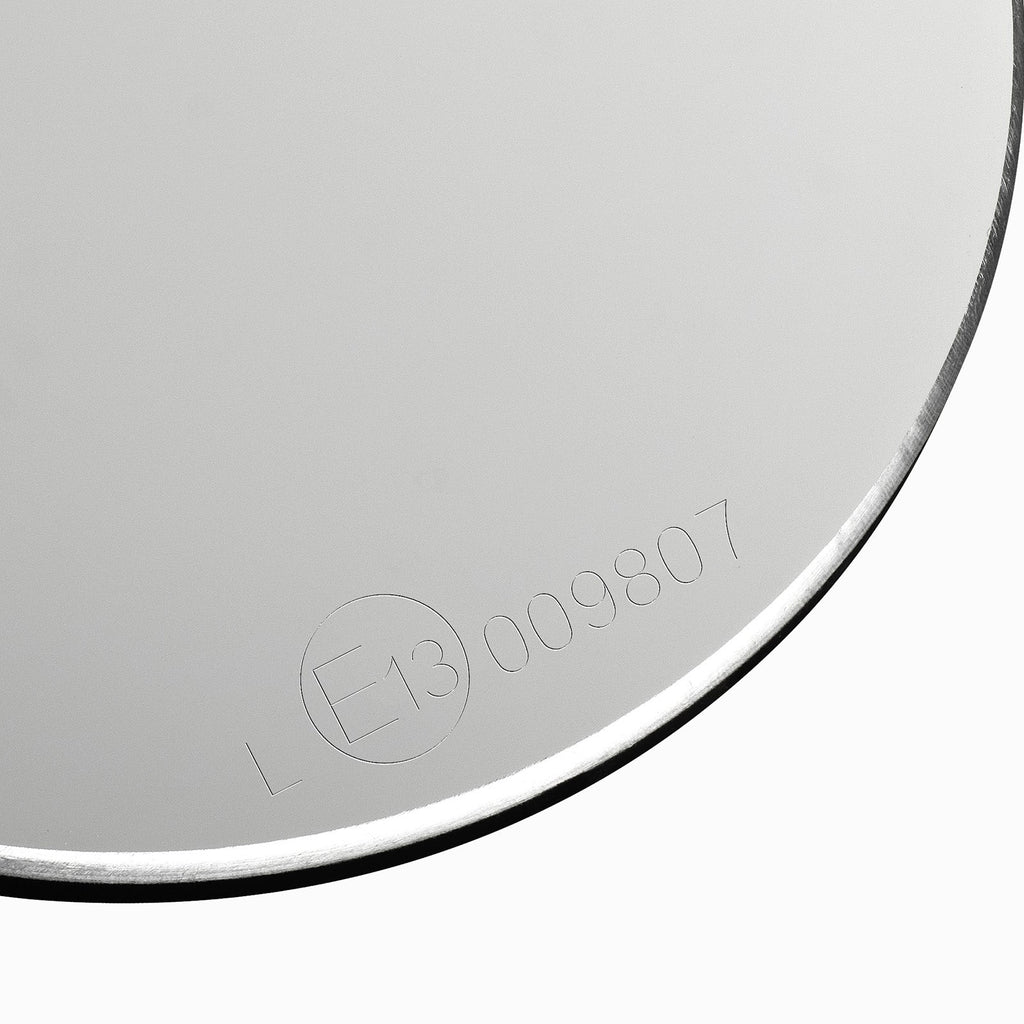

The size of the mirror surface corresponds to the StVZO and it has an ECE marking. This makes it suitable for any motorcycle without registration.

• Width of the mirror body: 114 mm
• Height of the mirror body: 80 mm
• Thickness of the mirror body without ball head: 4.5 mm
• Length of the mirror arm: 72 mm
• Clamp diameter: can be used for 22 mm and 1 inch handlebars
• Width of the clamp: approx. 12 mm
• Weight: 150 g

• 1 mo.view club 60 flip rearview mirror (with ECE certification) with arm
• 1x clamp
• QR code for installation and operating instructions
