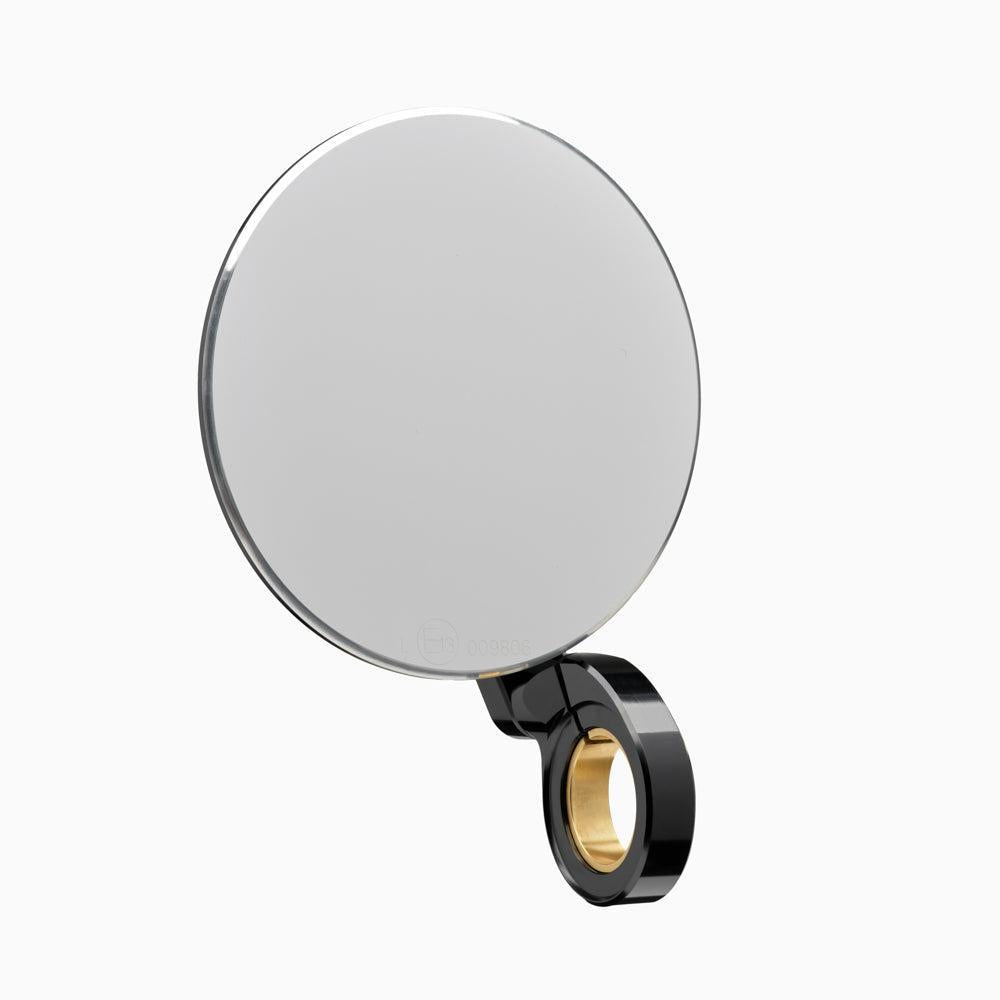

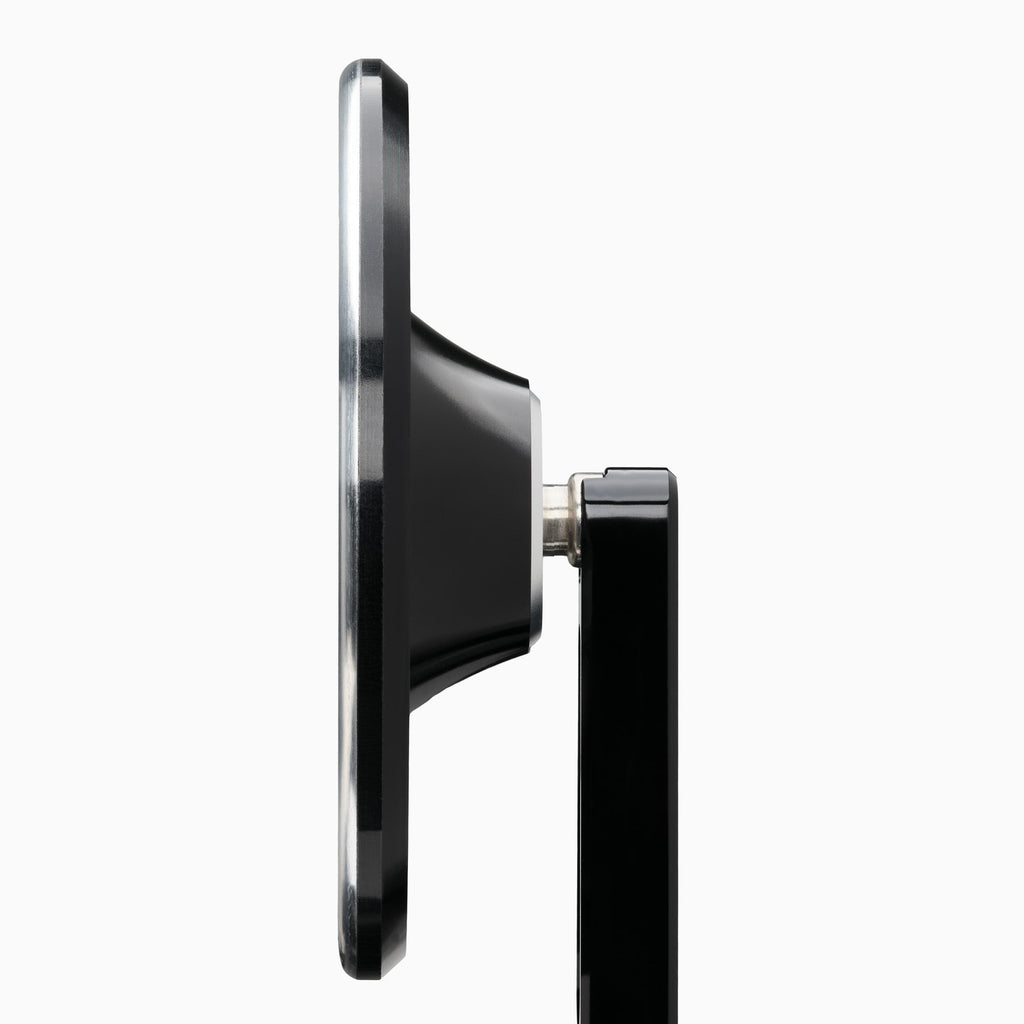

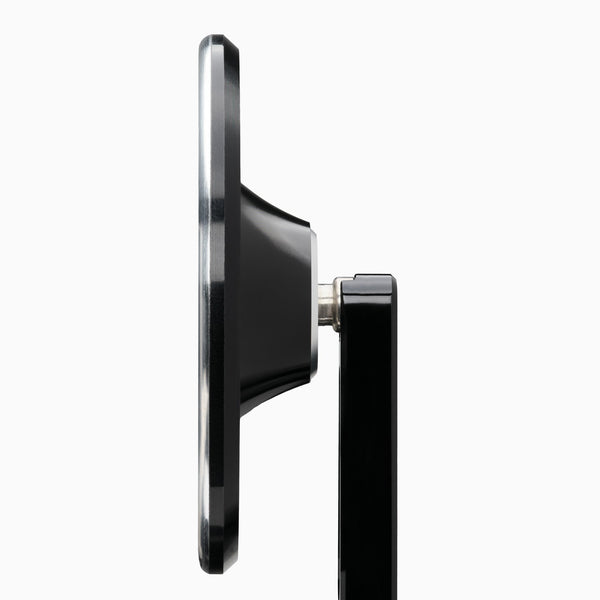

MOTOGADGET mo.view 60

Our mo.view series of frameless mirrors is unique worldwide. What makes our mirrors special is the patented mirror surface, which is machined directly from the metal of the frame. The aluminum itself serves as the mirror surface! The mirror frame is extremely thin and lightweight, resulting in a weightless design without a border or frame.

The convex mirror surface is manufactured in Berlin using fly-cutting with diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion, and abrasion through a complex plasma coating process in a vacuum.

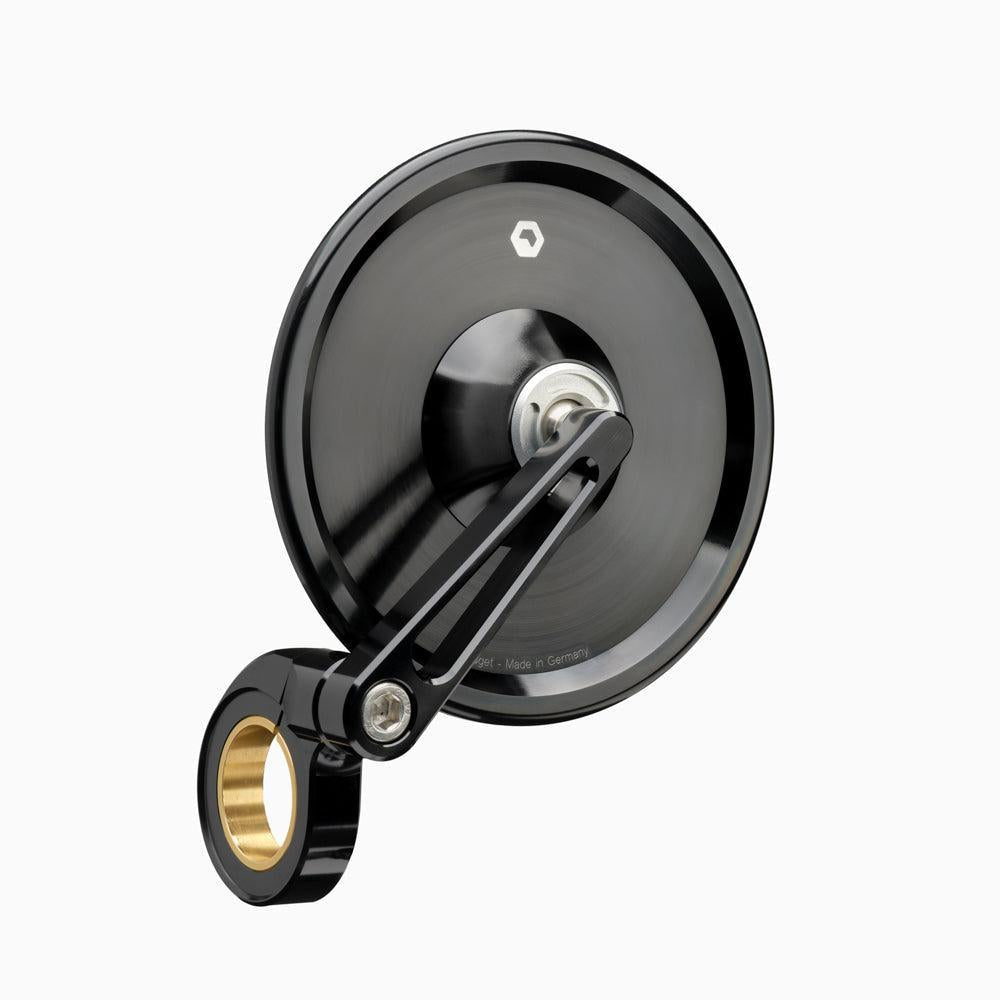

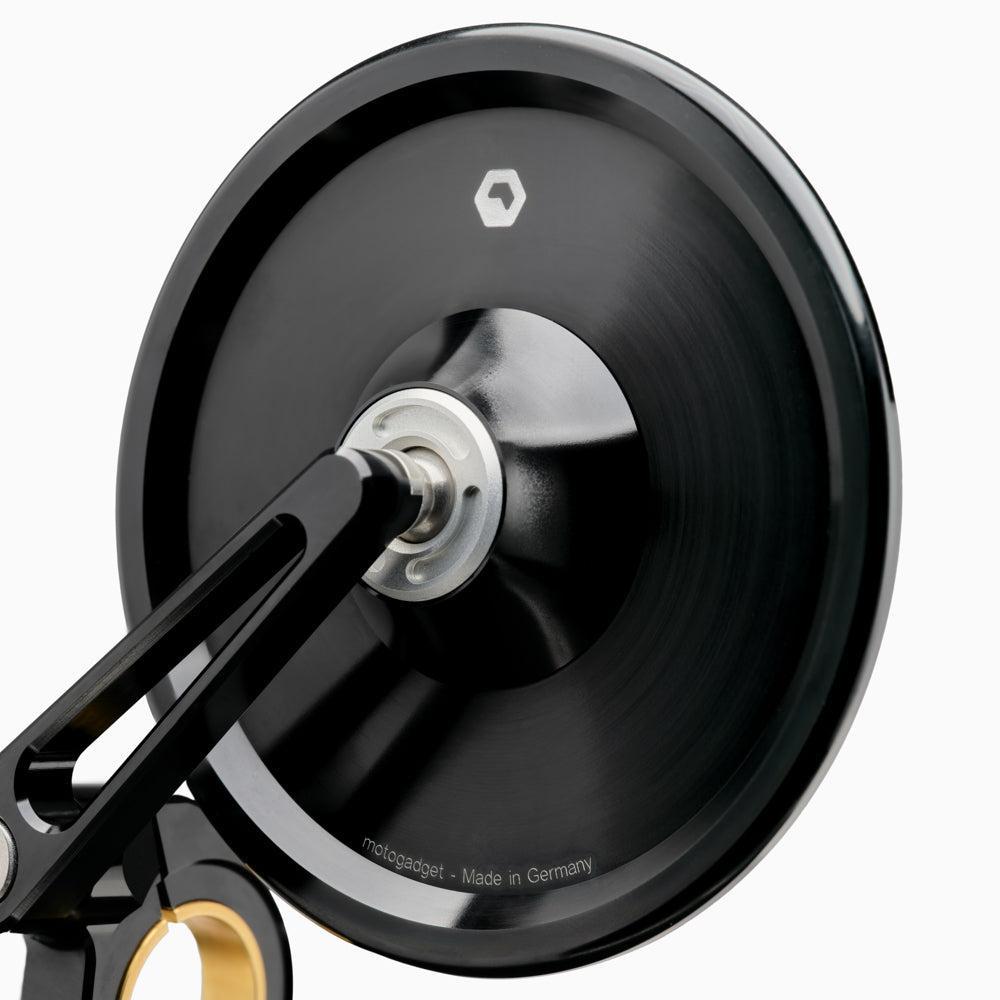

The mirror body, mirror arm, and handlebar-end clamp are milled from solid aluminum on CNC machines and feature a high-quality anodized finish. All screws are made of stainless steel. The precise ball joint allows for comfortable and very stable adjustment of the mirror. Broken glass or fallen lenses are simply not possible!

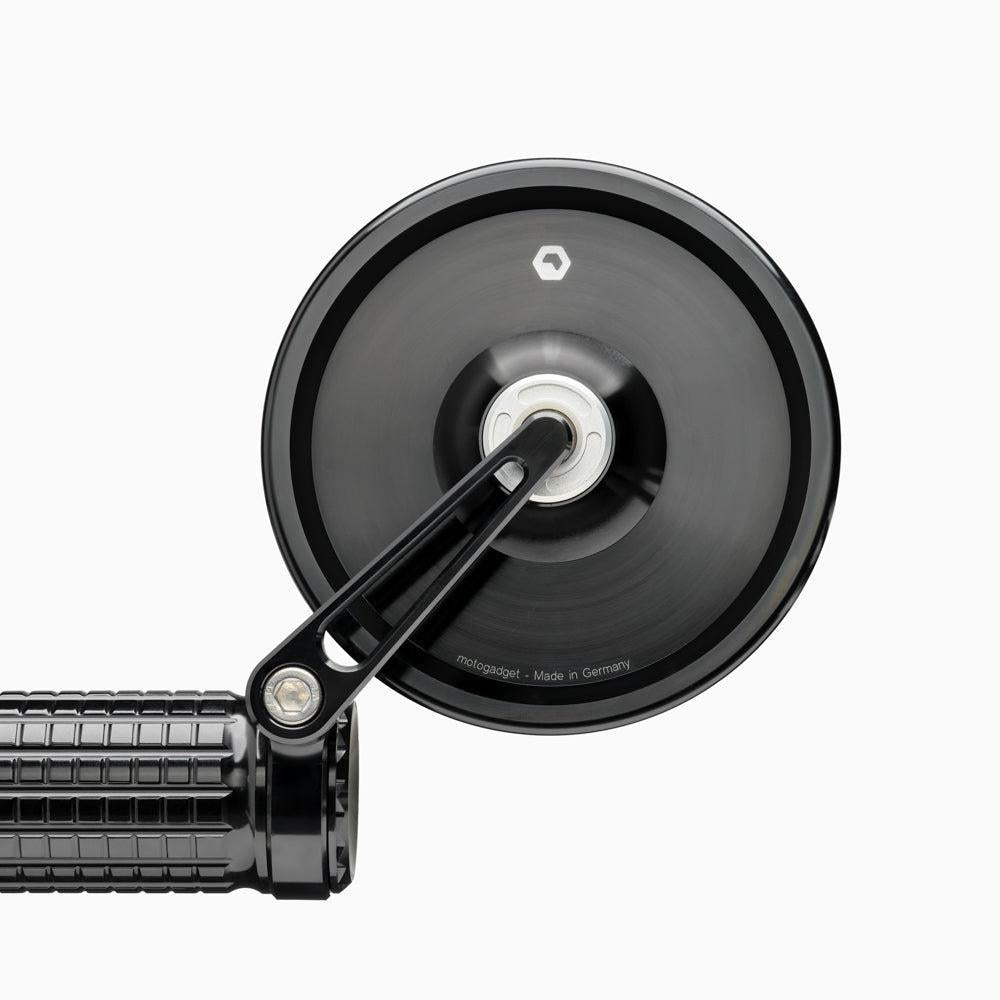

The handlebar-end mirror can be mounted above or below the handlebars. The
short arm is adjustable. The mirror is suitable for both the right and left sides. It mounts directly onto the handlebar end (22 mm and 1 inch) or, if the grips and controls cannot be moved, using the mo.view bar adapter.

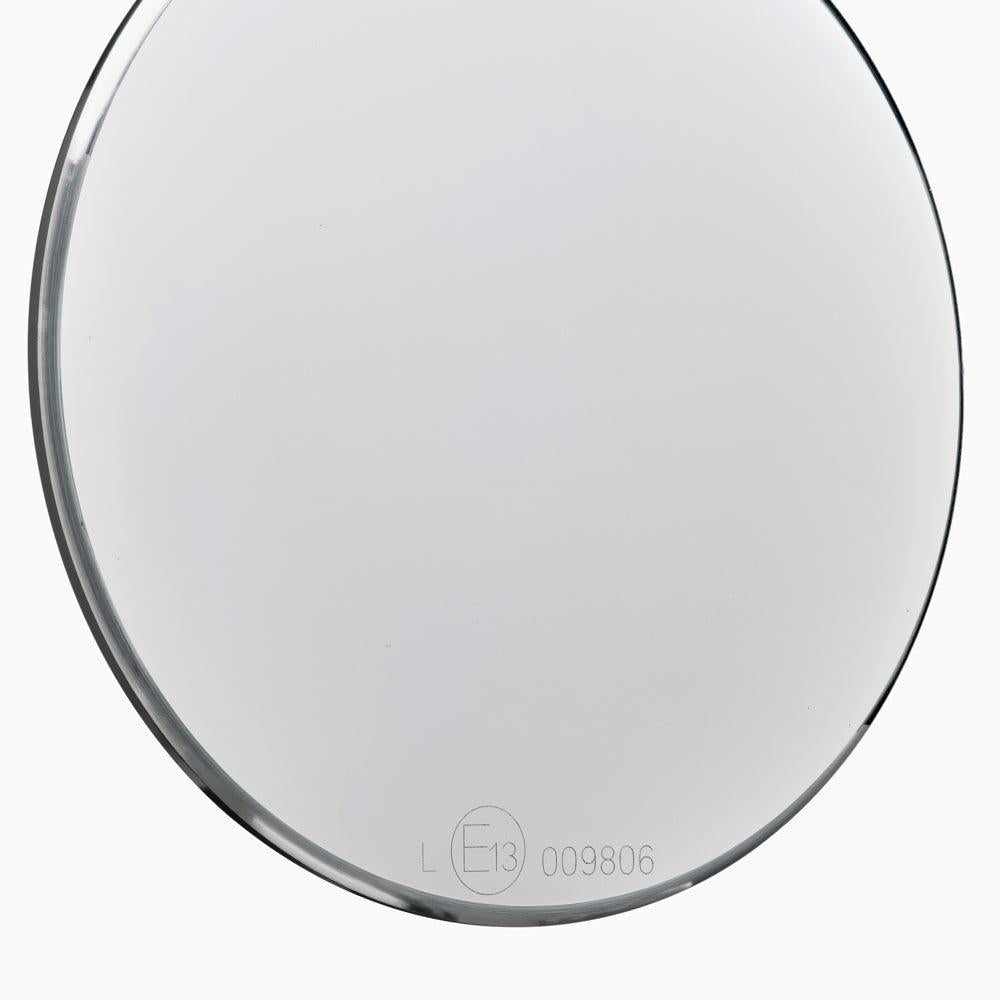

The size of the mirror surface corresponds to the StVZO and it has an ECE marking. This makes it suitable for any motorcycle without registration.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove
dirt, dust and other residues from the surface of the mirrors.
Avoid abrasive cleaning agents that could damage the surface.
surface.

• Diameter of the mirror body: 99 mm
• Thickness of the mirror body without ball head: 4.2 mm
• Length of the mirror arm: 72 mm
• Clamp diameter: can be used for 22 mm and 1 inch handlebars
• Clamping width: 10 mm
• Weight: 125 g

• 1x mo.view classic 60 rearview mirror (with ECE certification) with arm
• 1x clamp
• QR code for installation and operating instructions
