MOTOGADGET mo.view 60 flip

Our frameless mirror series, mo.view, is unique worldwide. What makes our mirrors special is the patented mirror surface, which is machined directly from the metal of the frame. The aluminum itself is the mirror surface!

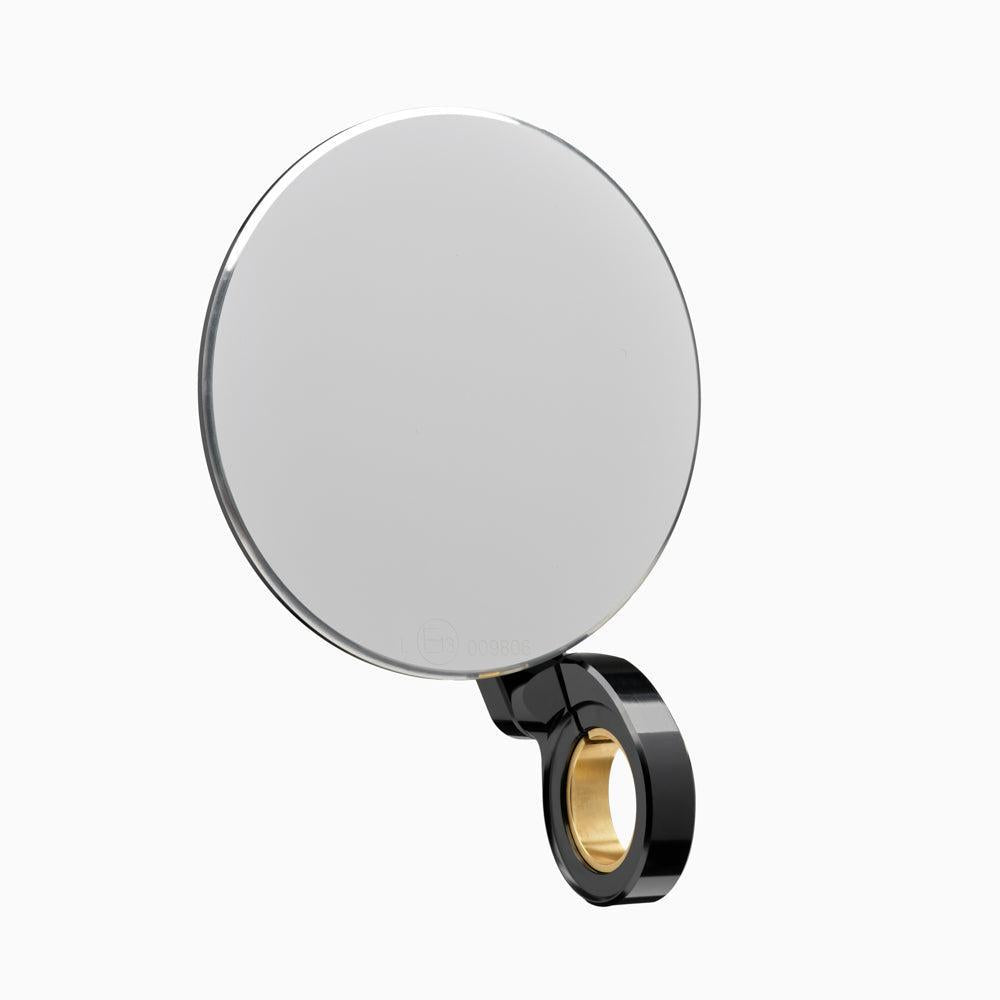

The mirror body itself is very thin and lightweight, resulting in a weightless design without a frame or bezel. The convex mirror surface is manufactured using fly-cutting with diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion, and abrasion through a complex plasma coating process in a vacuum.

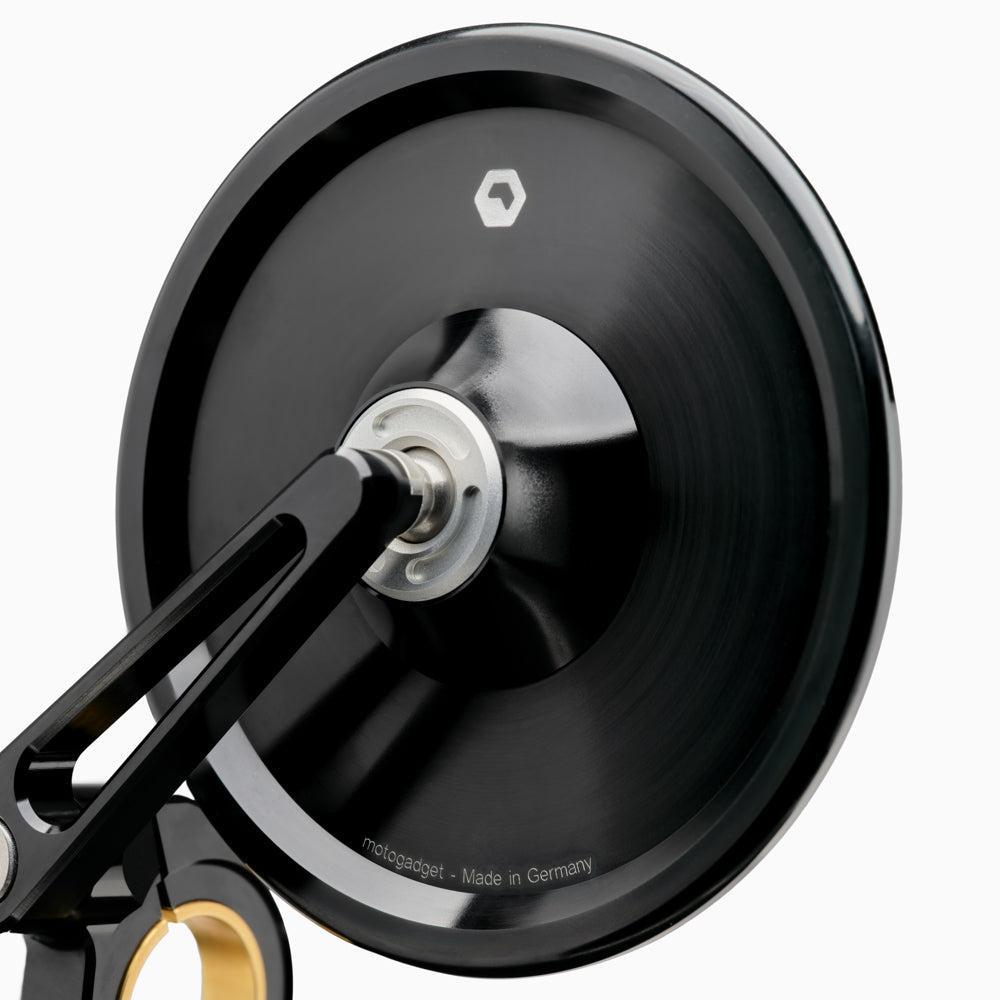

The mirror body, mirror arm, and handlebar-end clamp are milled from solid aluminum on CNC machines and feature a high-quality anodized finish. All screws are made of stainless steel. The precise ball joint allows for comfortable and very stable adjustment of the mirror. Broken glass or mirrors falling out are simply not possible!

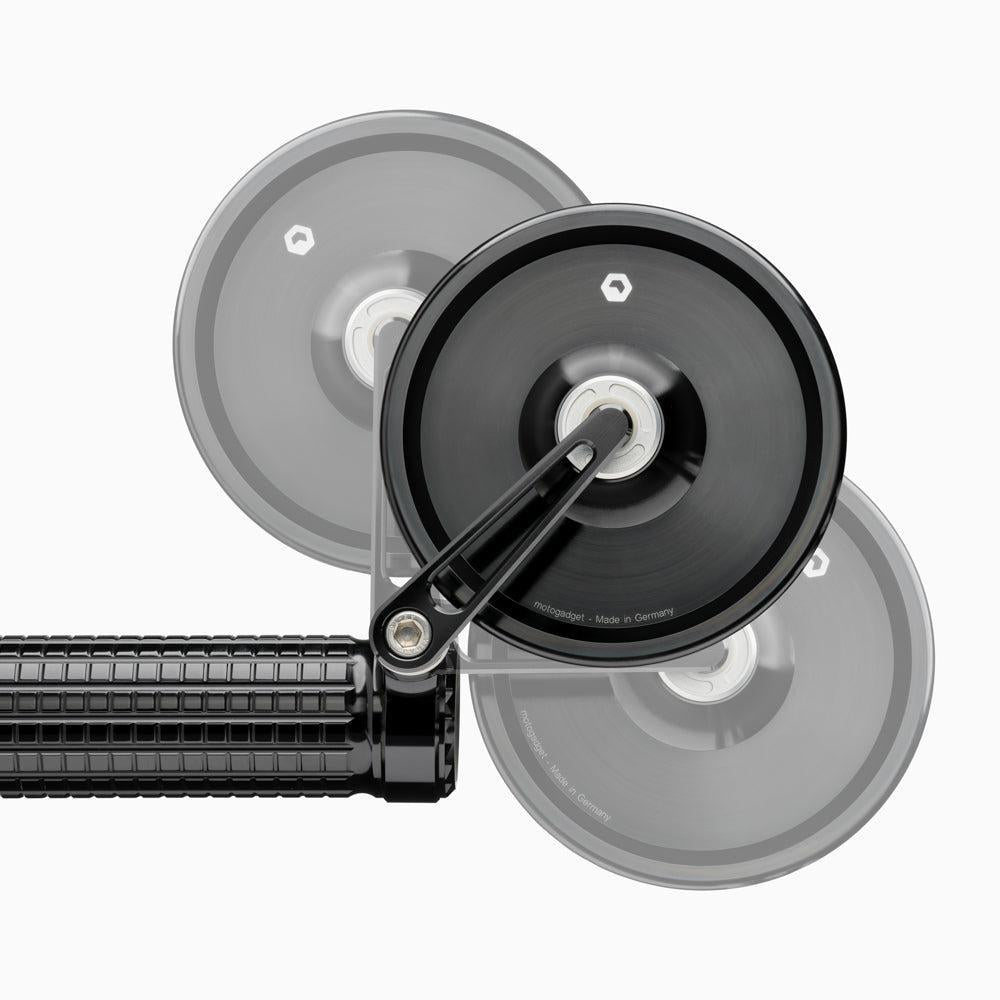

A special feature of the flip series mirrors is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.

Extremely practical for narrow passages, space problems in the garage or for transportation. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate, even at high speeds, if fitted correctly.

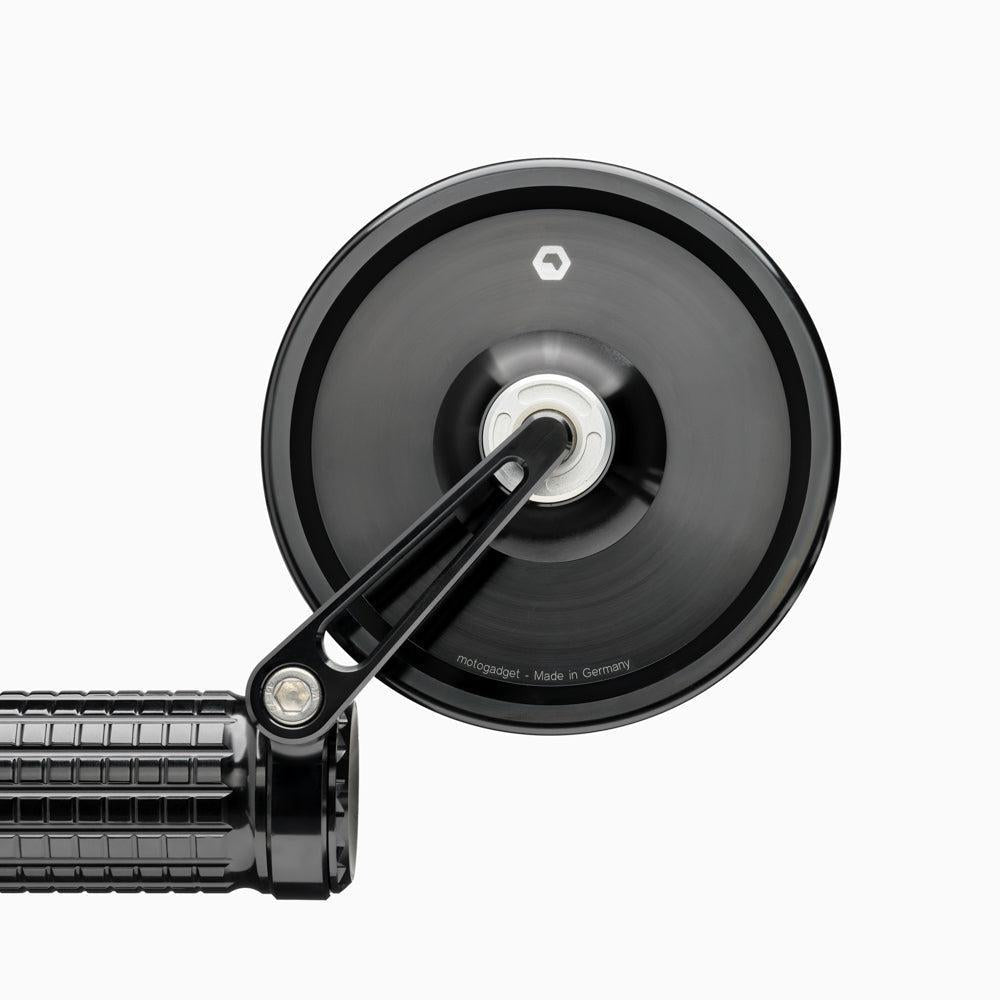

The mirror can be mounted either above or below the handlebars and is
suitable for both the right and left sides. It mounts directly onto the handlebar end (22 mm and 1 inch) or, if the grips and controls cannot be moved, using a mo.view bar adapter.

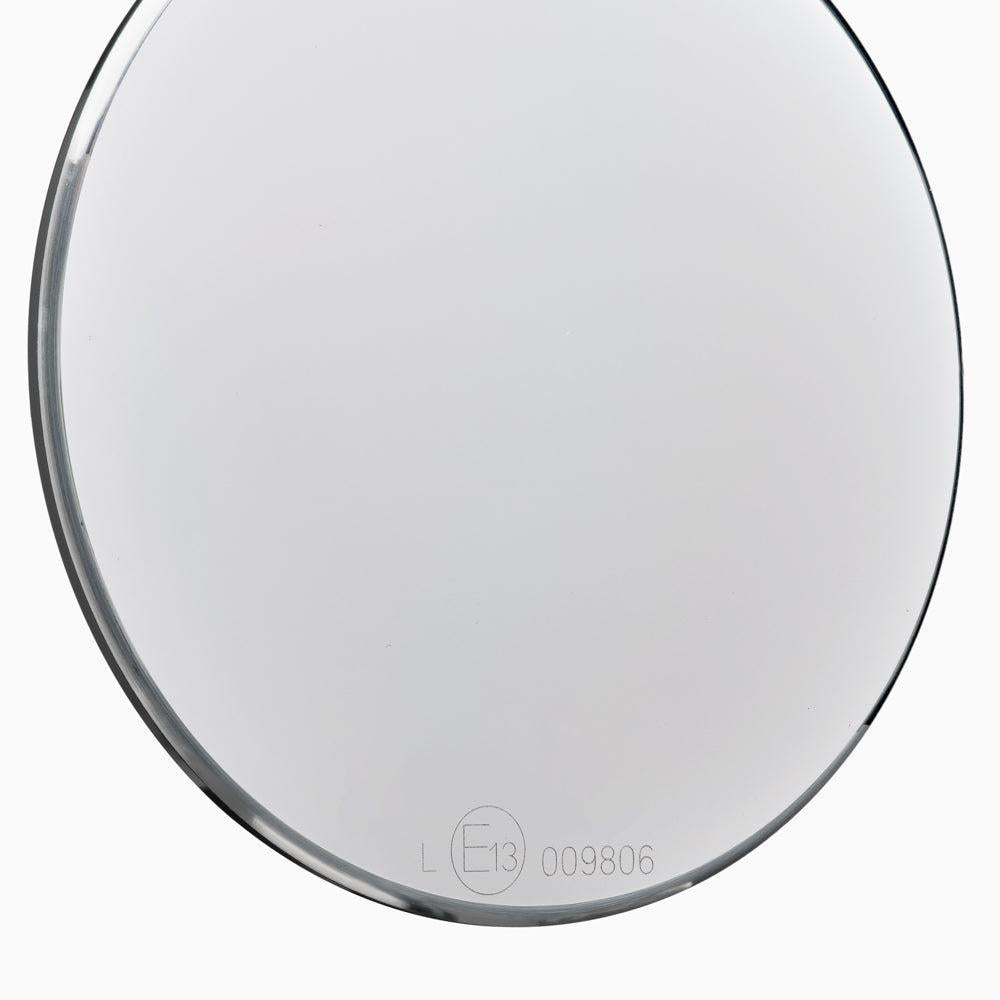

The size of the mirror surface corresponds to the StVZO and it has an ECE marking. This makes it suitable for any motorcycle without registration.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove
dirt, dust and other residues from the surface of the mirrors.
Avoid abrasive cleaning agents that could damage the surface.
surface.

• Diameter of the mirror body: 99 mm

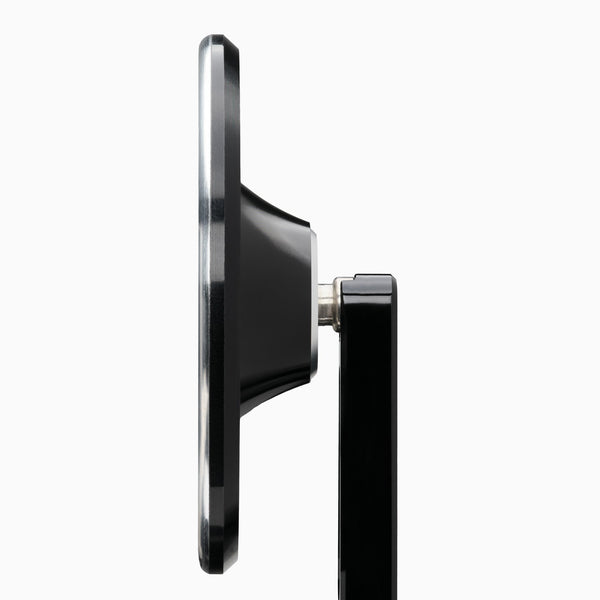

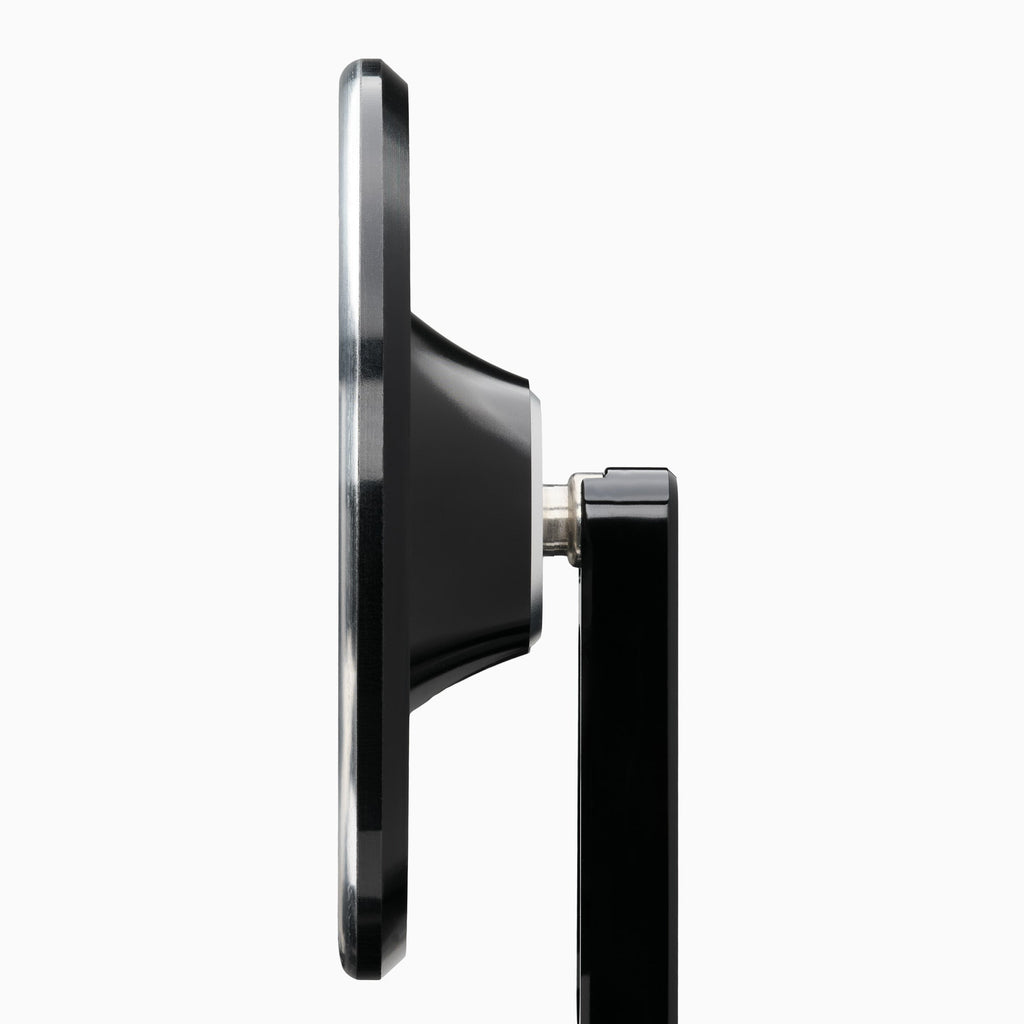

• Thickness of the mirror body without ball head: 4.2 mm
• Length of the mirror arm: 72 mm
• Clamp diameter: can be used for 22 mm and 1 inch handlebars
• Clamping width: 12 mm
• Weight: 150 g

• 1 mo.view classic 60 flip rearview mirror (with ECE certification) with arm
• 1x clamp
• QR code for installation and operating instructions
