MOTOGADGET mo.view

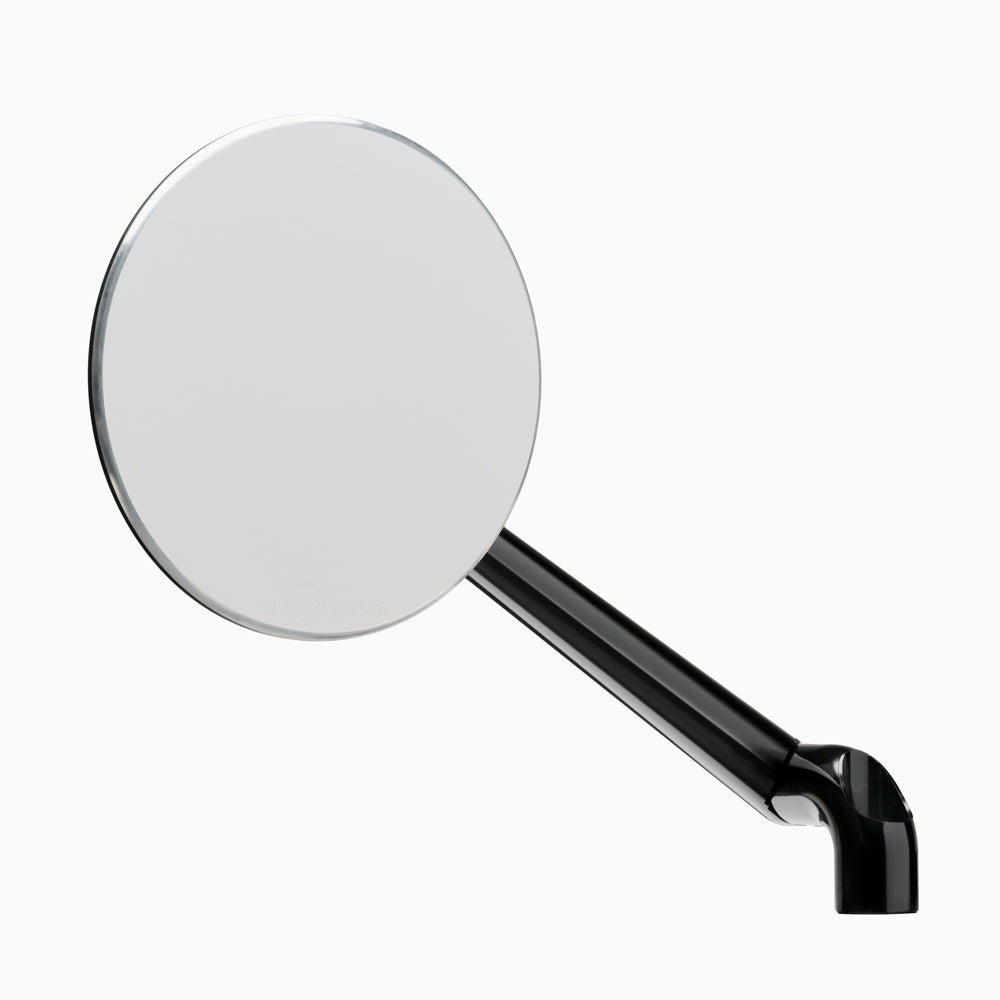

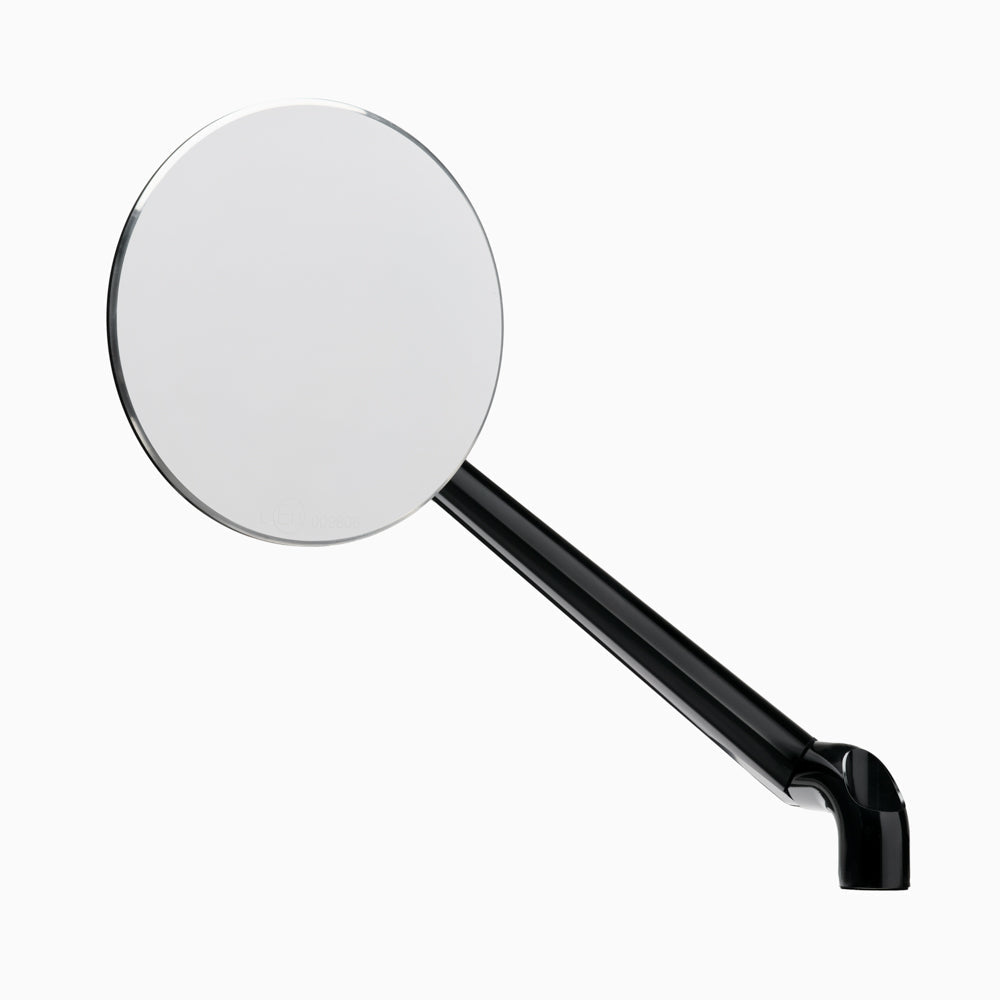

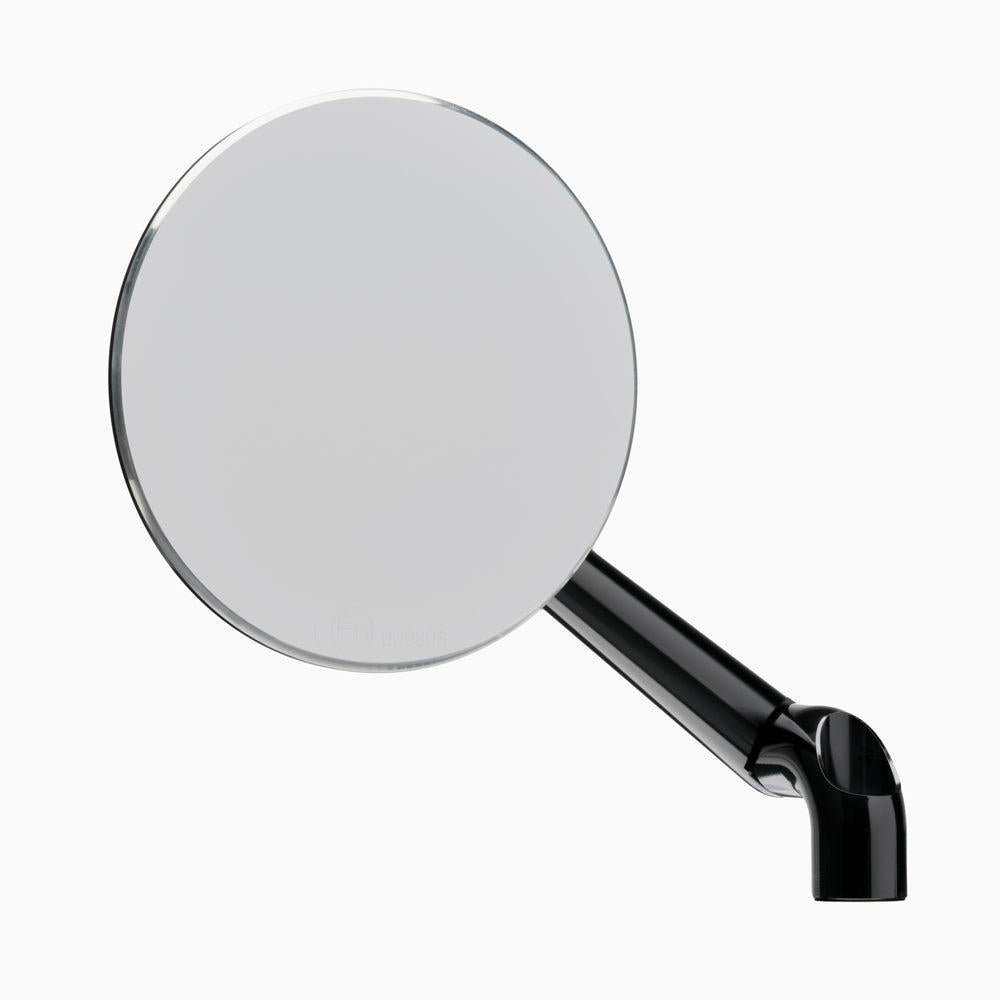

Our mo.view series of frameless mirrors is unique worldwide. What makes our mirrors special is the patented mirror surface, which is machined directly from the metal of the frame. The aluminum itself is the mirror surface!

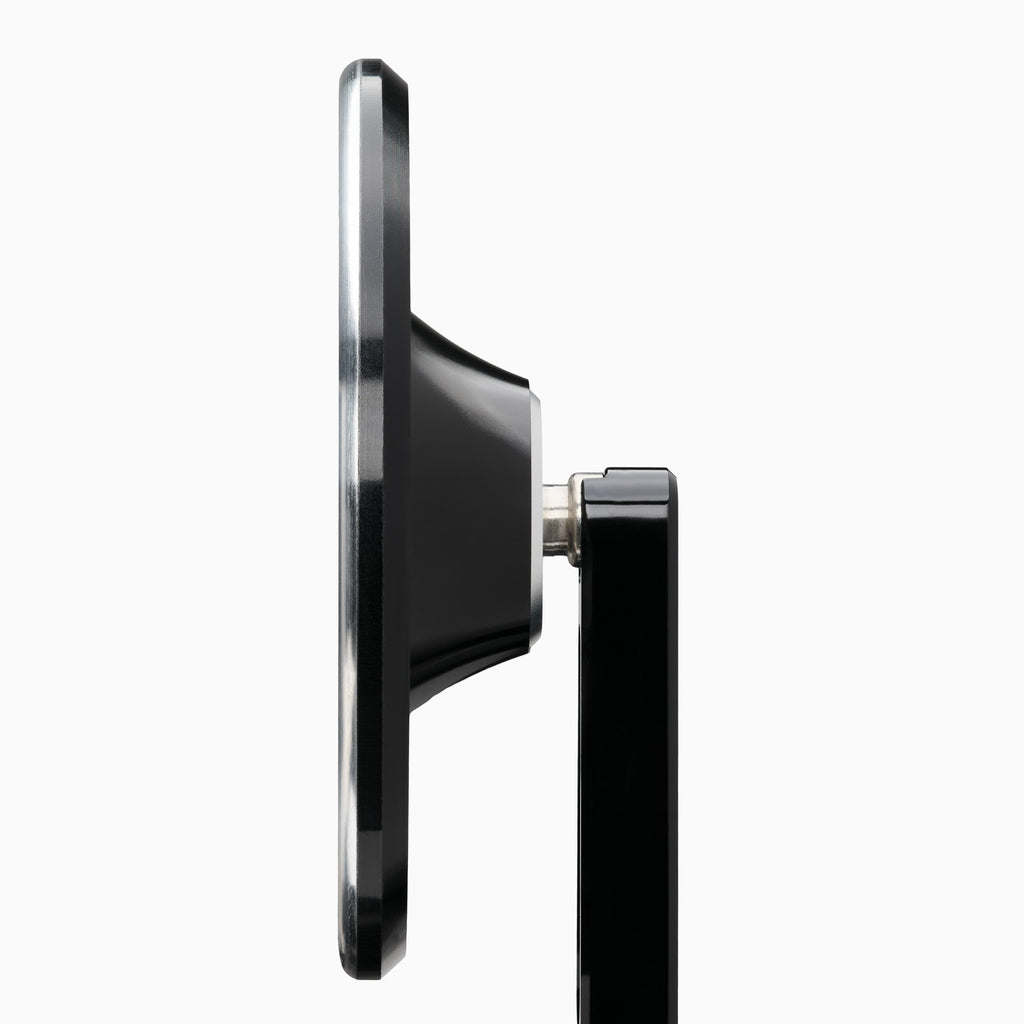

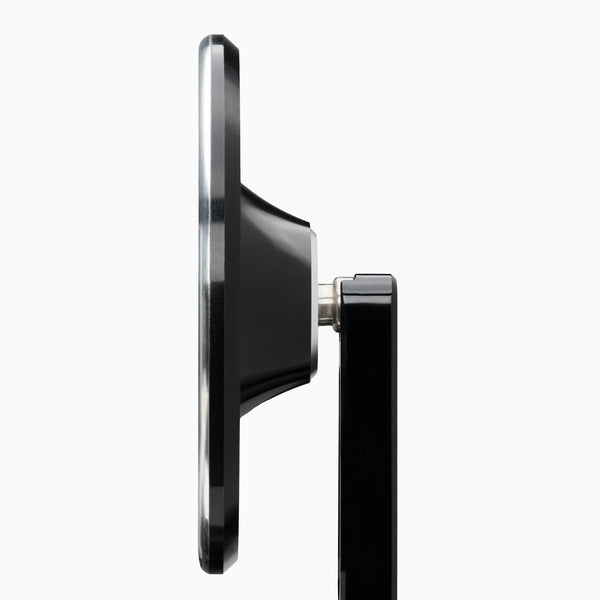

The mirror frame itself is very thin and lightweight, resulting in a weightless design without a rim or frame.

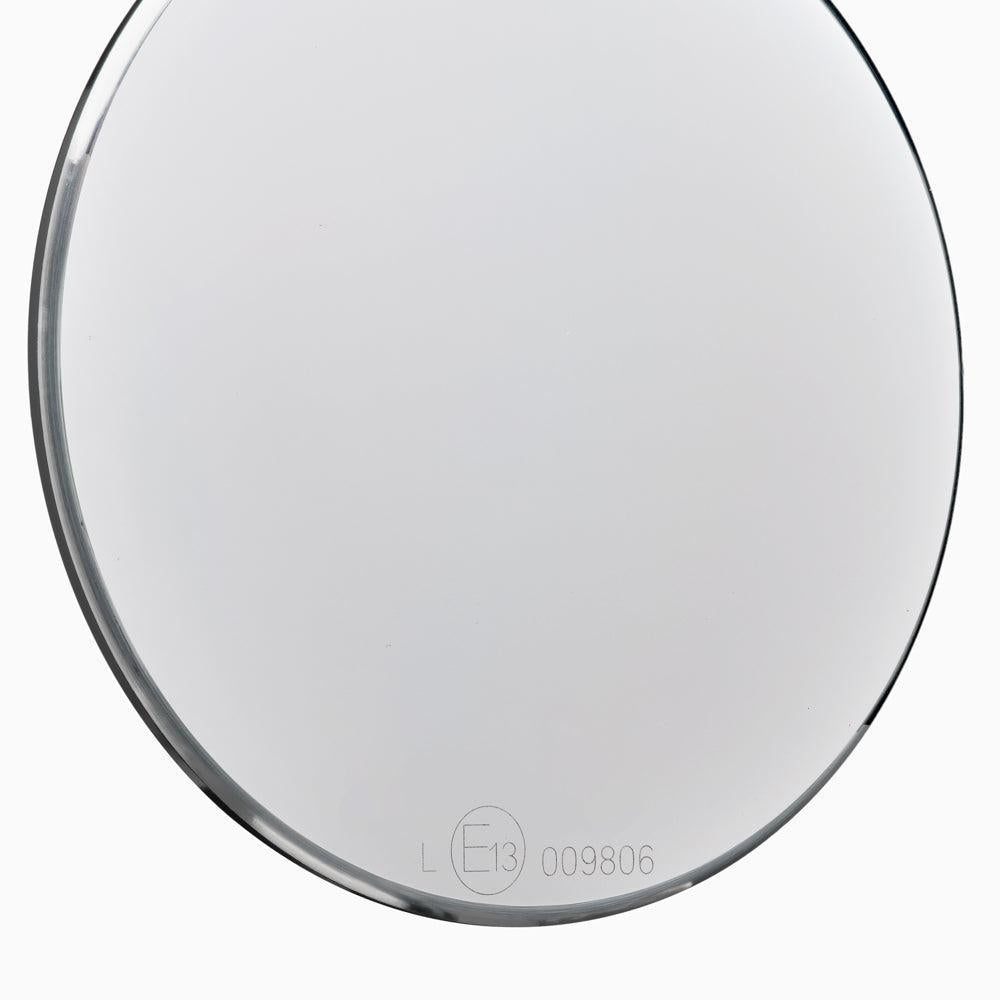

The convex mirror surface is manufactured using fly-cutting with diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion, and abrasion through a complex plasma coating process in a vacuum.

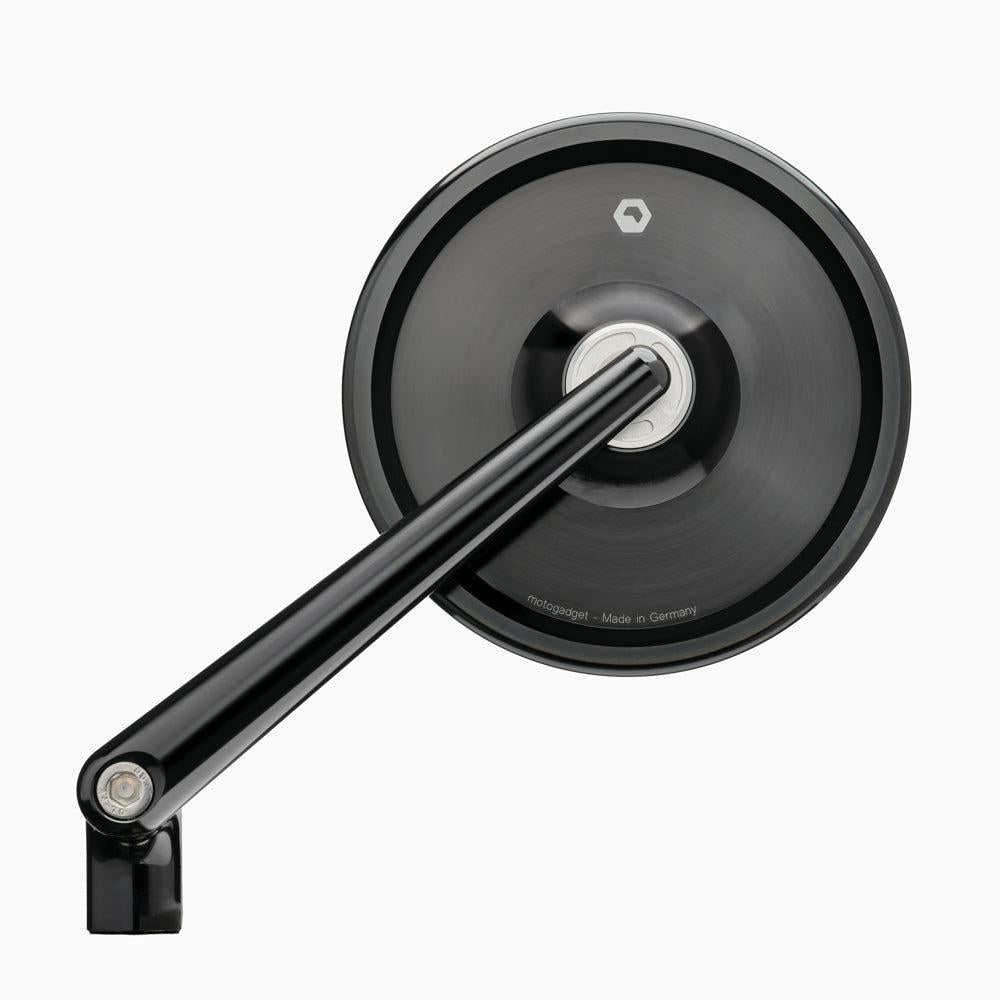

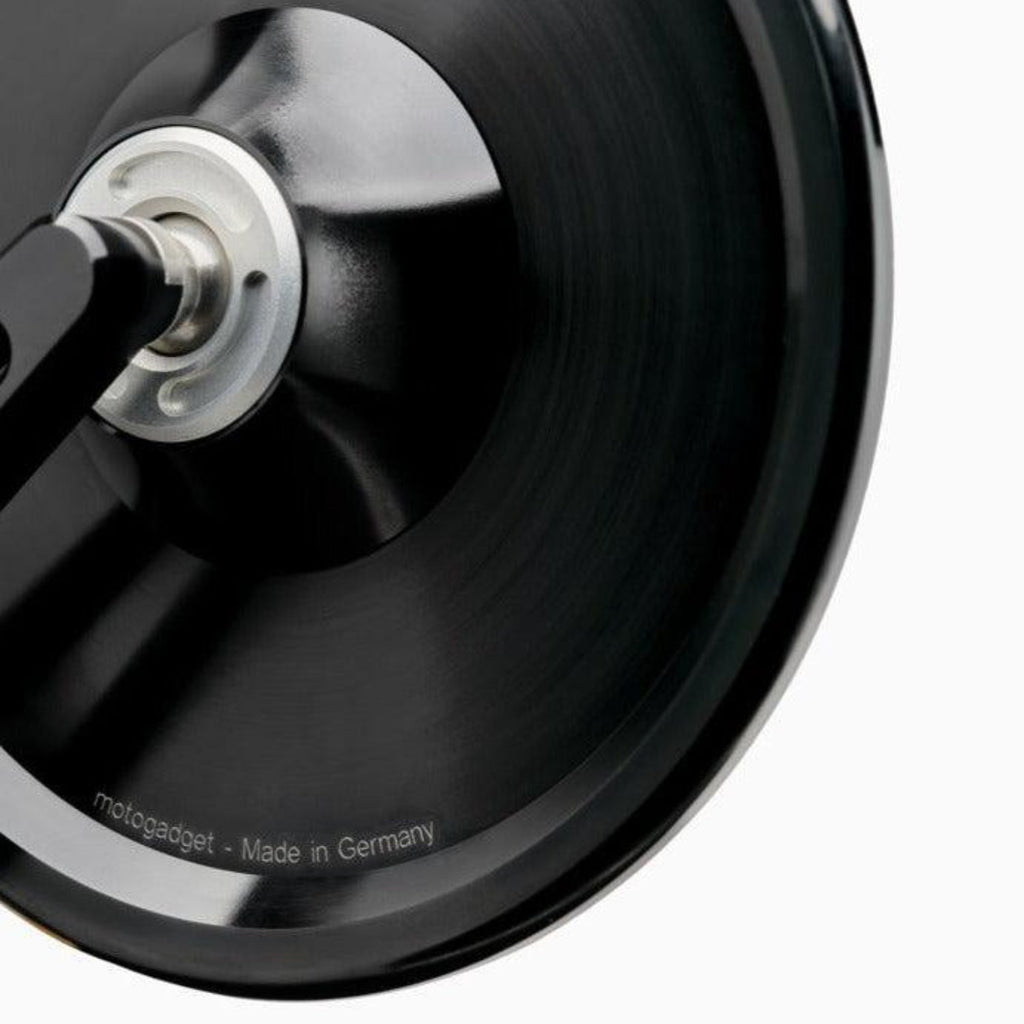

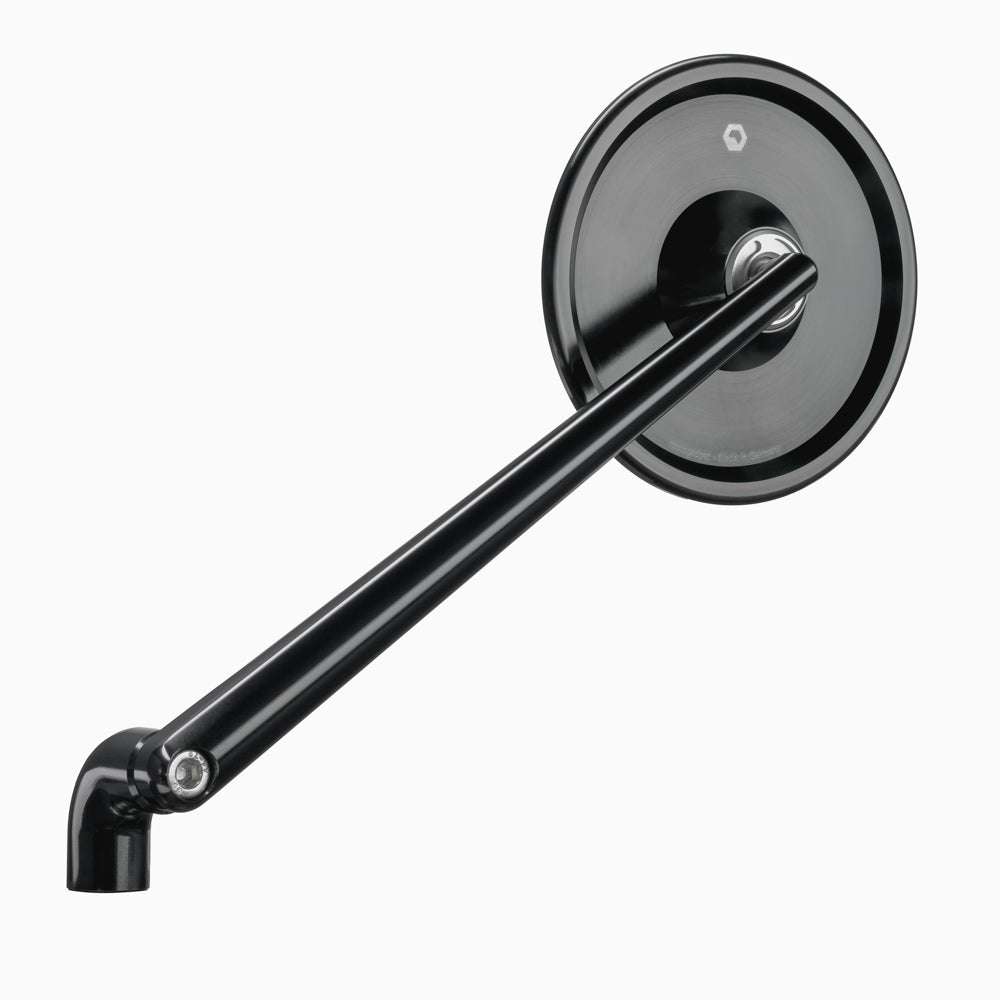

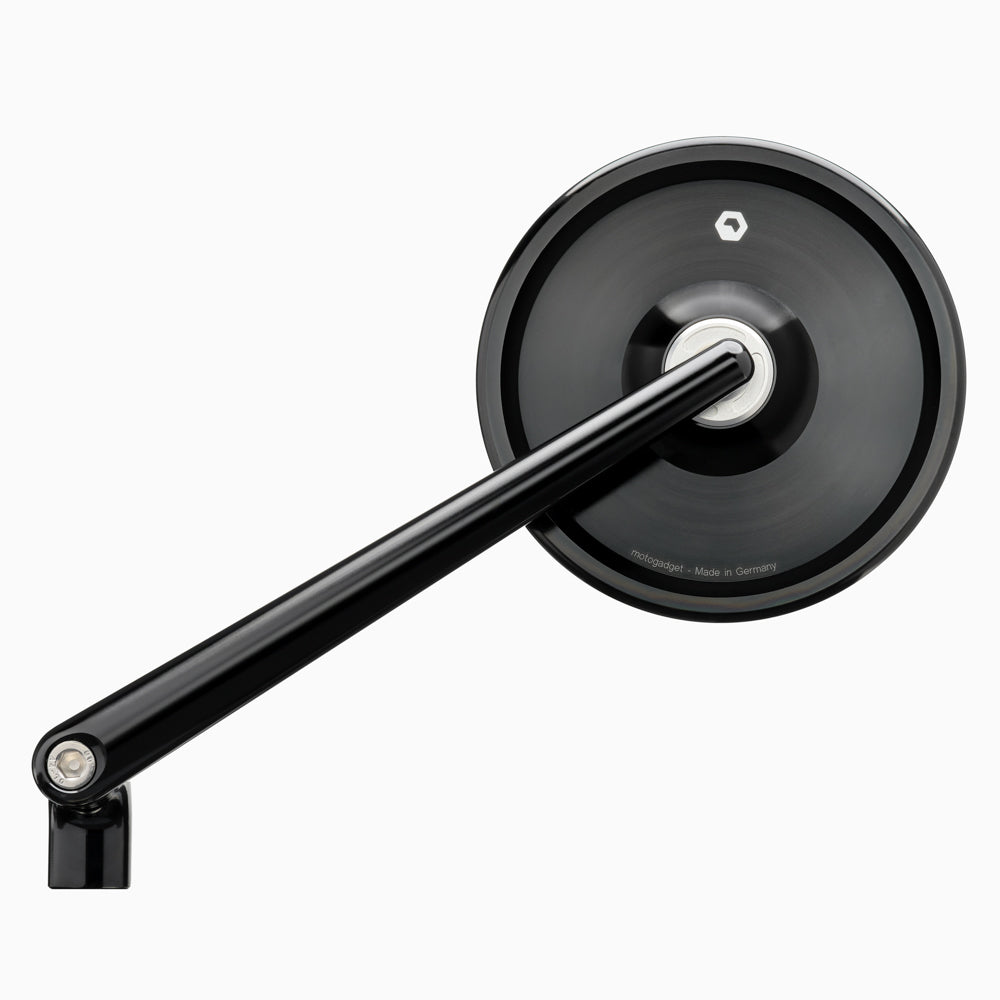

The mirror body, mirror arm, and handlebar-end clamp are milled from solid aluminum on CNC machines and feature a high-quality anodized finish. All screws are made of stainless steel. The precise ball joint allows for comfortable and very stable adjustment of the mirror. Broken glass or fallen lenses are simply not possible!

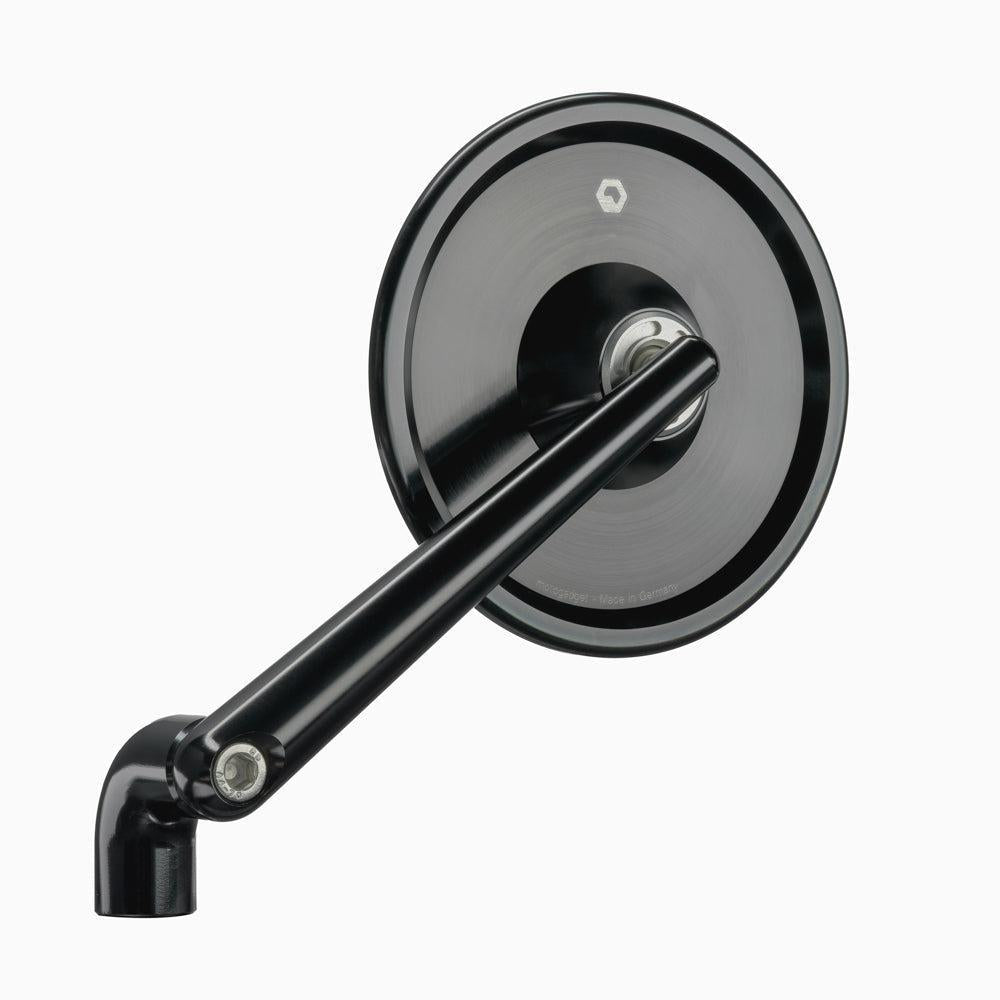

The mo.view classic mounting mirror can be mounted on any M10 mirror thread on the handlebar
. Three mounting screws with different
threads are included. The mirror is suitable for both the left and right sides.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove
dirt, dust and other residues from the surface of the mirrors.
Avoid abrasive cleaning agents that could damage the surface.
surface.

• Diameter of the mirror body: 99 mm
• Thickness of the mirror body without ball head: 4.5 mm

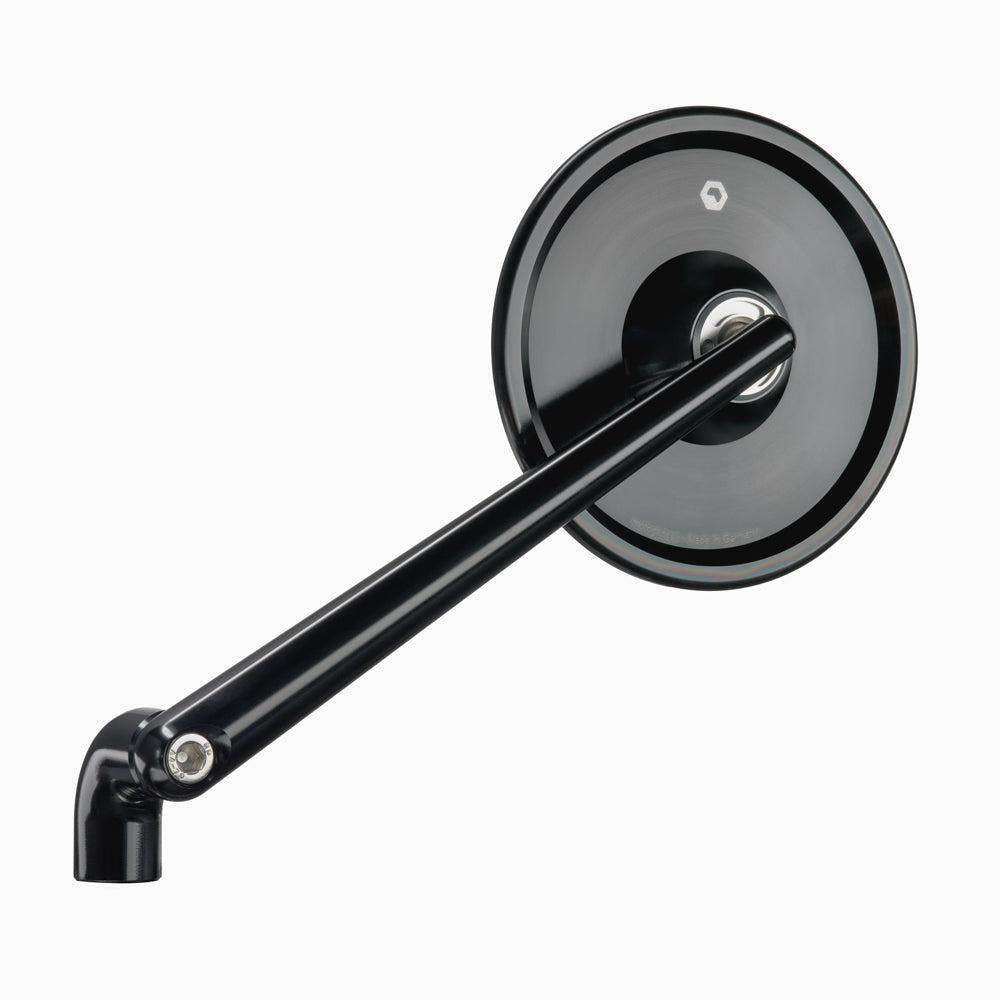

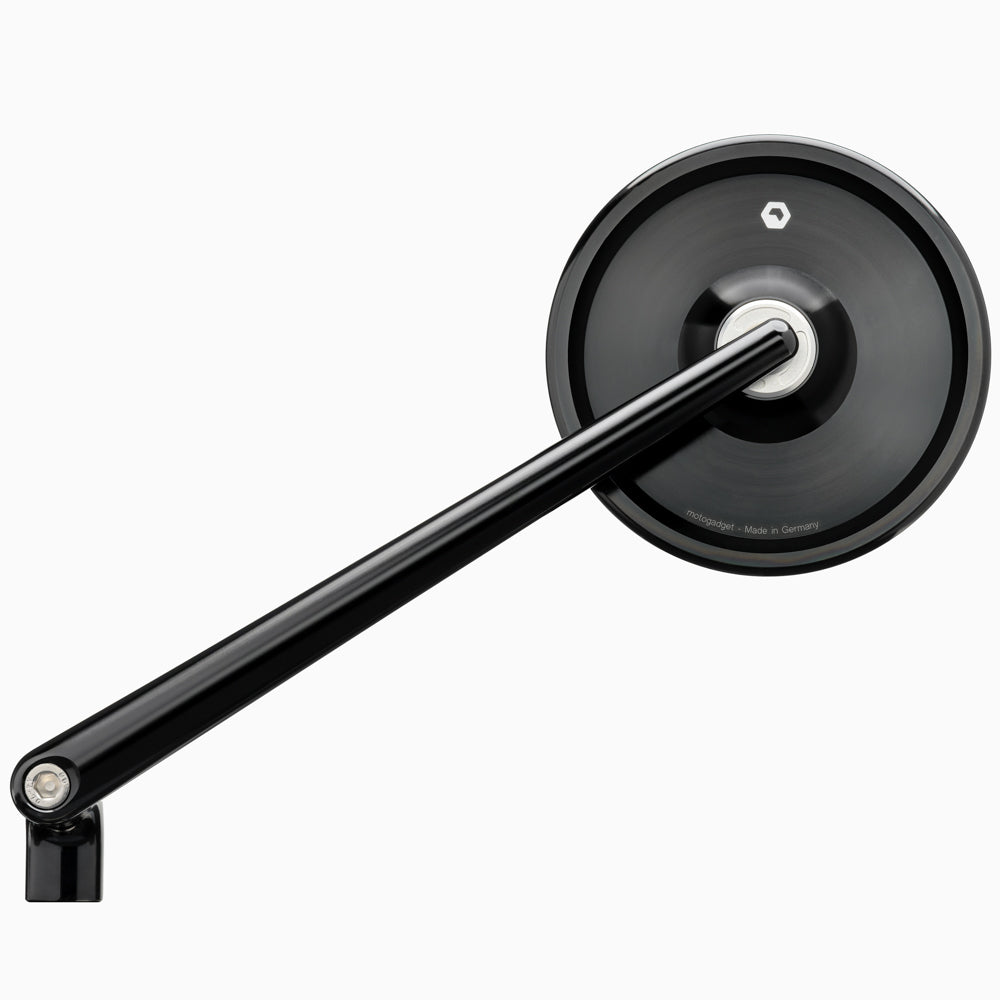

• Length of the mirror arm: 110 mm / 150 mm / 180 mm
• Weight: 150 g

• 1 mo.view classic side-view mirror (with ECE certification) with arm
• 1 x M10 x 1.5 screw
• 1 x screw M10 x 1.25 right-hand thread
• 1 x screw M10 x 1.25 left-hand thread
• QR code for installation and operating instructions
