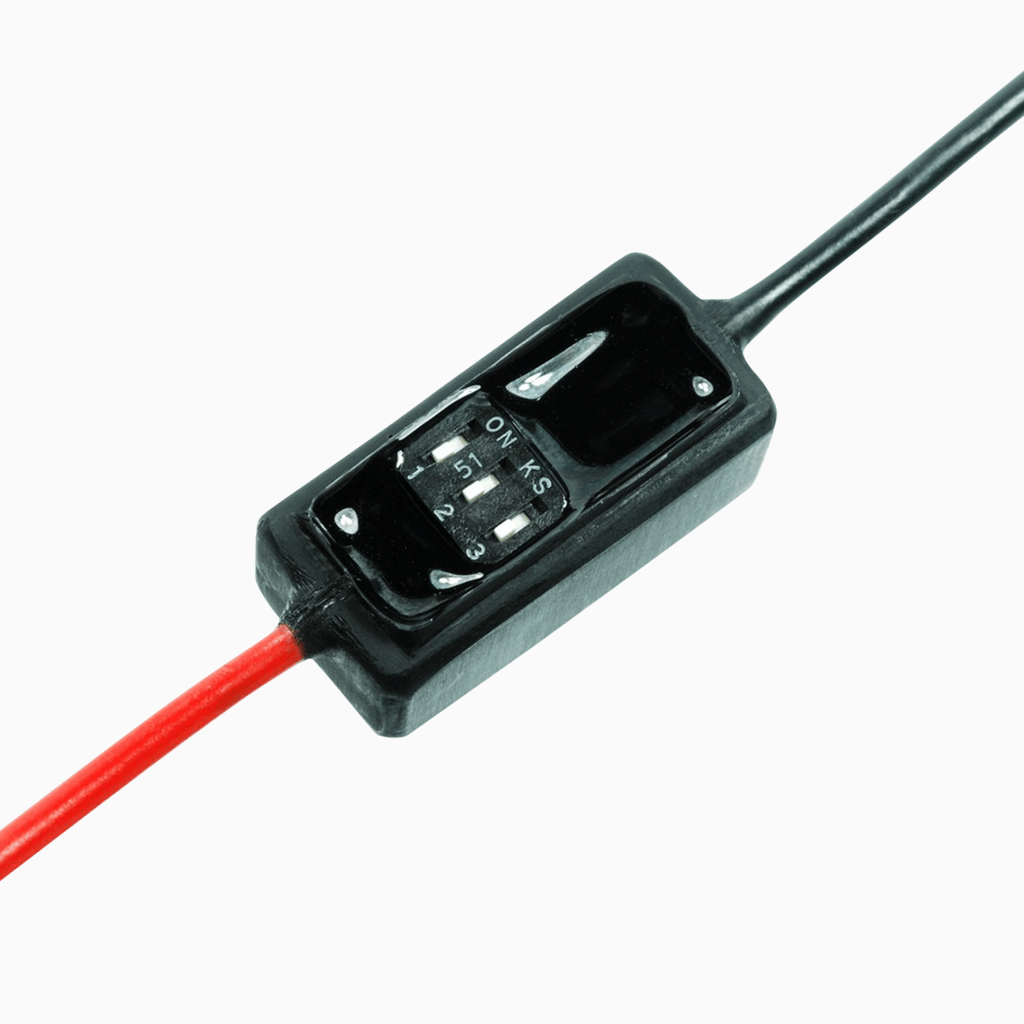

MOTOGADGET mo.stop

In some cases, the principle is already integrated in cars with upmarket equipment ex works (adaptive brake light). In other countries, such as the USA, it is also widely used on motorcycles. Unfortunately not (yet) approved in Germany. In the event of an emergency, the mo.stop does not have to be removed. Simple reprogramming using a dip switch is sufficient. The mo.stop can also be used as a flasher relay with automatic switch-off.

Safety aspect: flasher unit automatically switches off the blinker(s) after 20 seconds if set accordingly. No more accidental continuous flashing.

Use as brake light control

• Ultra small and lightweight, practically just a piece of cable with a tiny candy-sized device
• Routing in the wiring harness simply in series with the brake light
• 6 different light/flashing variants adjustable for brake light
• Virtually load-independent - therefore suitable for almost all LED brake lights (from 1 W) or conventional brake light bulbs
• Super simple connection using just two cables - simply connect in series
• Short-circuit-proof - Automatic overload protection - Protection against voltage peaks from the vehicle electrical system
• No heat generation during operation
• Also suitable for 6 V brake light
• Immediate, loss-free response of the brake light - waterproof and vibration-proof

Use as flasher relay (with/without cut-off)

• Almost load-independent (from 1 W)
• Always constant flashing frequency, therefore suitable for almost all LED turn signals (from 1W), all micro turn signals, halogen turn signals, 10 watt turn signals, 21 watt turn signals, etc.
• Ideal for custom bikes and conversions with limited space - no bulky standard relay
• Works e.g. with 4 indicators or 2 handlebar end indicators etc.
• Super simple connection using just two cables - simply connect in series
• Also suitable for 6 V indicators
• Adjustable as flasher relay with automatic switch-off

• Housing L x W x H: 26 mm x 12 mm x 10 mm
• Length of connection cable: approx. 2 x 50 mm
• Weight: approx. 6 g
