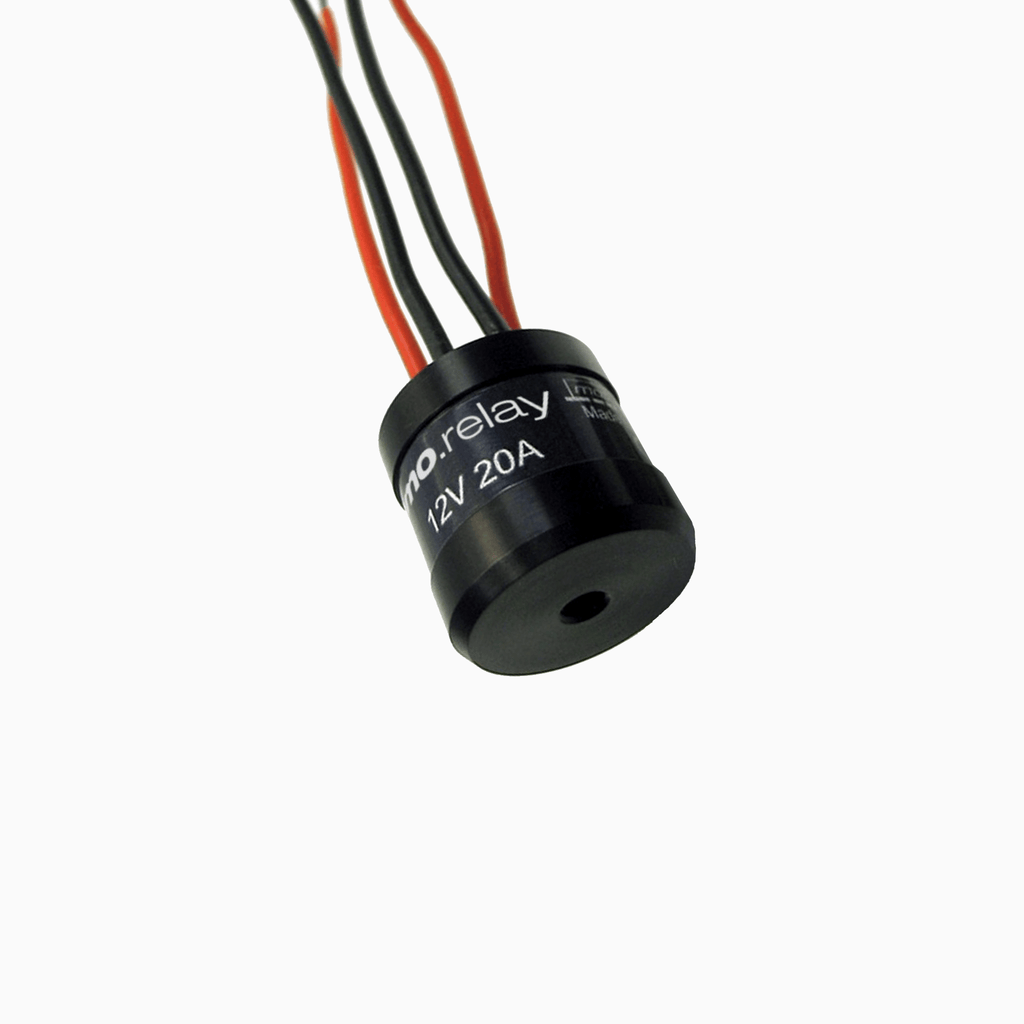

MOTOGADGET mo.relay standard
The mo.relay is a very small relay for controlling almost all consumers. High beam, low beam, horn, ignition etc. can be switched easily and almost loss-free. Larger operating currents are therefore placed close to the consumer (e.g. lamp). Only a minimal control current needs to be routed via the ignition lock and/or handlebar switch. Failures and burnt contacts are a thing of the past. In addition, the brightness of the lighting, for example, is noticeably improved by reduced line losses - a clear plus in terms of safety.
Product details
A central threaded hole on the upper surface of the housing allows for easy installation in almost any location, even when mounting multiple mo.relays. The mo.relay housing is machined from solid aluminum and black anodized. It is completely waterproof and vibration-resistant.
Note: The mo.relay is not suitable for push-button control. For this, see mo.unit. The mo.relay is not suitable as a flashing relay. For this, see mo.flash, mo.wave, mo.stop, or, with push-button control, mo.relay+.
The small and lightweight aluminum housing is black anodized and has a practical M3 mounting thread. Flying mounting with cable ties is also possible. Ideal for conversions and custom bikes with limited space. The electronics are completely waterproof, vibration-resistant, and have overload protection.
Technical data
- Diameter without cable: 19 mm
- Height: 19 mm
- Thread size: M3
Manufacturer: MOTOGADGET
Official source: motogadget.com
