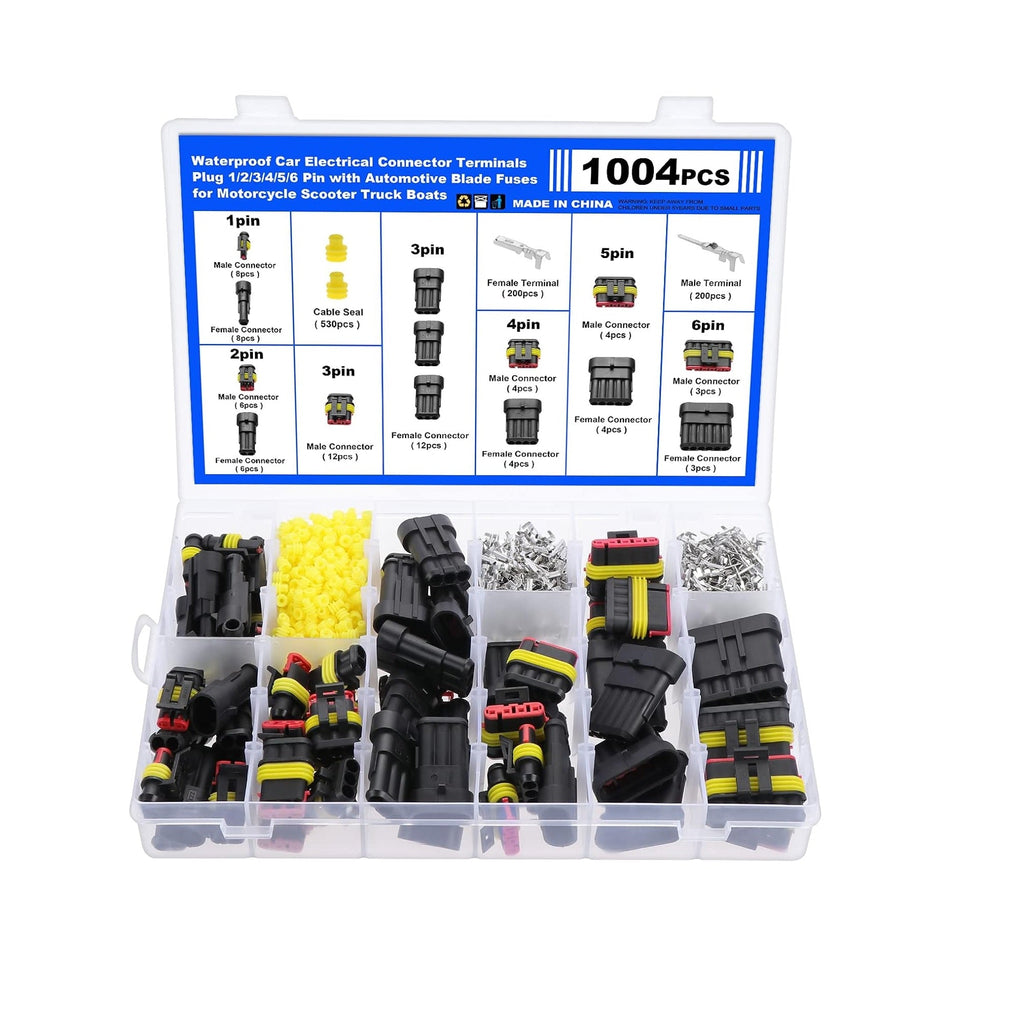

MOTOGADGET Complete set of automotive connectors

These waterproof automotive connectors have been specially developed for use in the most extreme conditions. They offer reliable performance in the event of heavy shocks, intense vibrations, extreme temperature fluctuations and contact with water, mud or dust.

Manufactured from high-quality, resistant materials such as nylon PA66 and PA6, the connectors are characterized by their high rigidity and durability. The housings offer excellent protection against chemical influences such as fuels, oils and UV radiation.

The sophisticated snap-in design guarantees absolutely secure locking and a stable electrical connection - even under constant high mechanical loads.

The plug contacts are designed to ensure optimum electrical conductivity. The system is complemented by high-quality silicone seals that ensure maximum dust and water resistance in accordance with IP68.

• Voltage: 300 V
• Rated current: 12 A
• Cable cross-section: 1.5 mm²
• Plug poles in set: 1/2/3/4/5/6
• Working temperature: -25°C - 85°C
• Rating: IP68
• Material: PA66, PA6, silicone

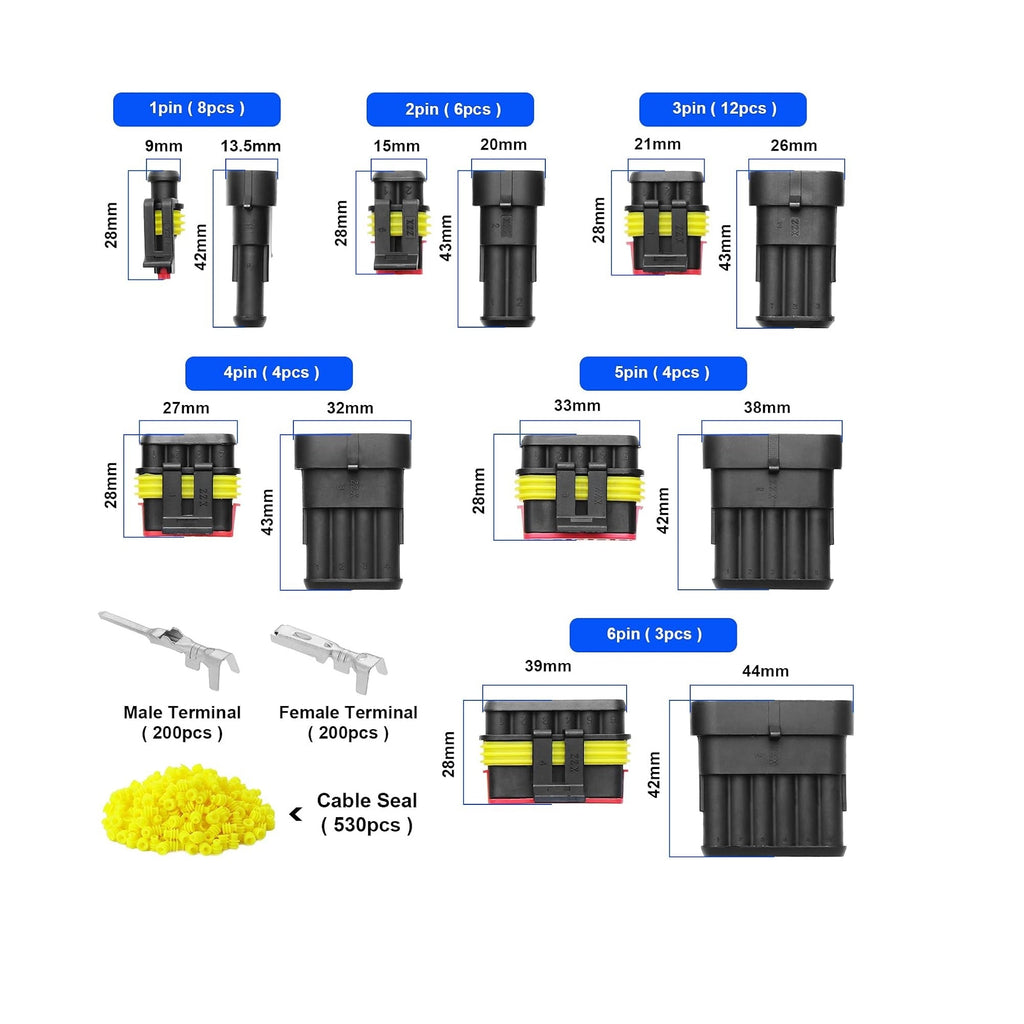

1-pin set of waterproof plugs:
8 x one-pin male connector housing and insert;
8 x one-pin socket housing and insert

2-pin set of waterproof plugs:
6 x two-pin plug housing and insert
6 x two-pin socket housing and insert

3-pin set of waterproof connectors
12 x three-pole plug housing and insert
12 x three-pin socket housing and insert

4-pole set of waterproof connector plugs
4 x four-pole plug housing and insert
4 x four-pole socket housing and insert

5-pin set of waterproof connector plugs
4x 5-pin plug housing and insert
4 x five-pin socket housing and insert

6-pin set of waterproof connector plugs
3x six-pin plug housing and insert
3 x six-pin socket housing and insert

530 pieces silicone rubber cable seal
200 x male connector
200 x female terminal
