MOTOGADGET Compact connectors

$17.00

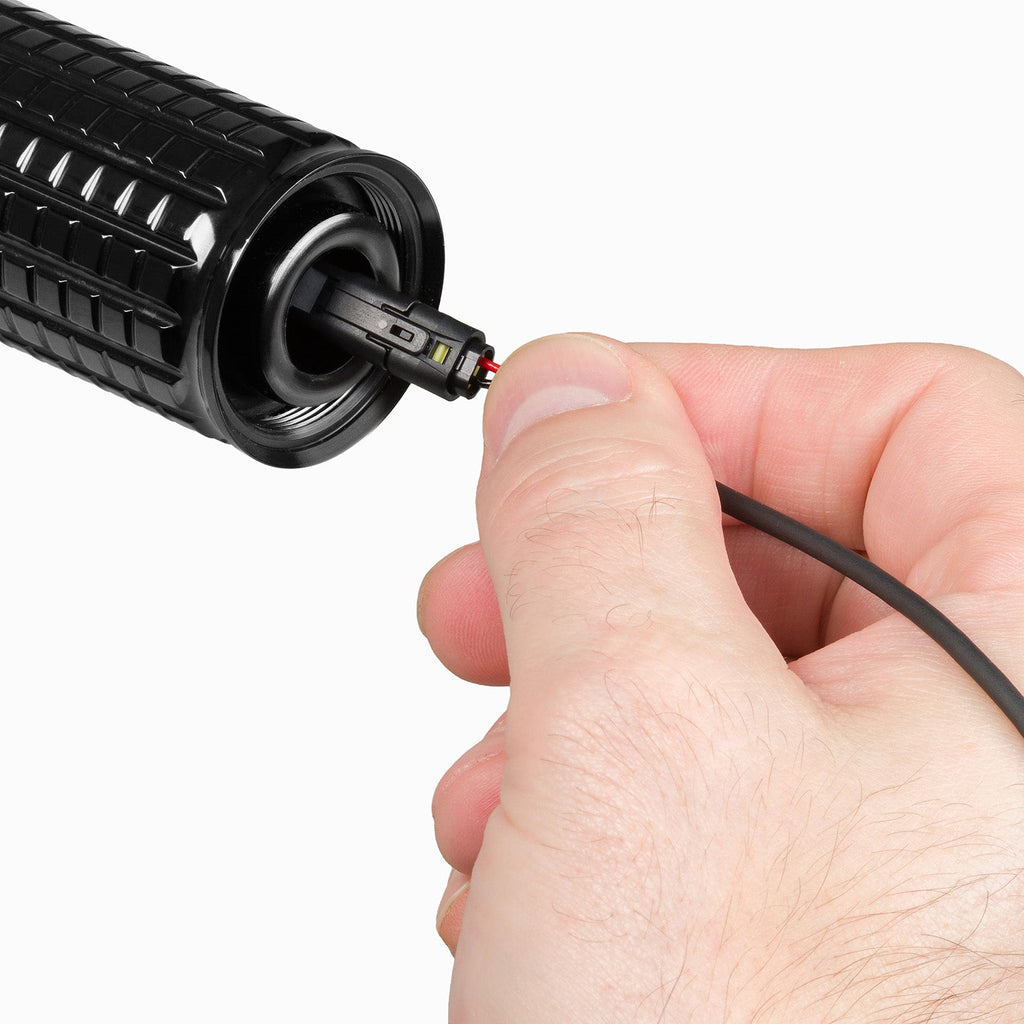

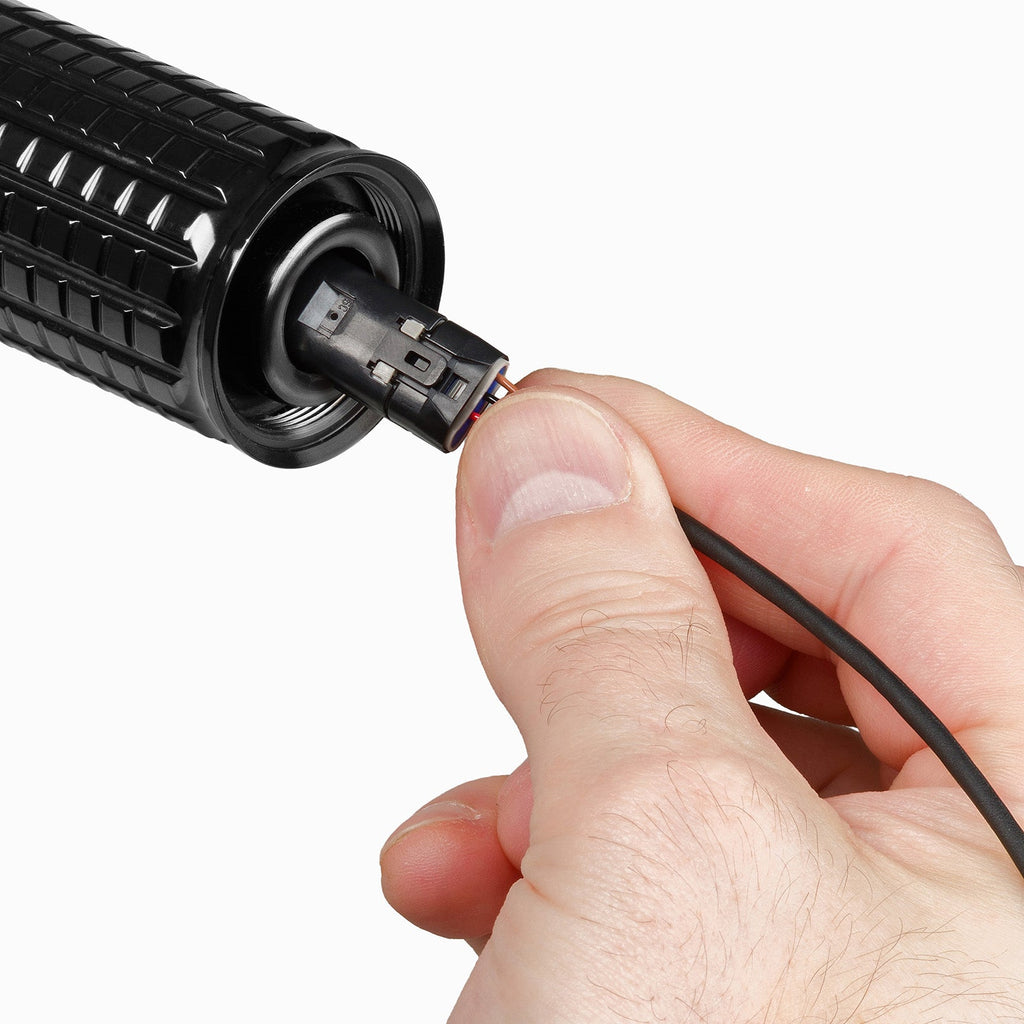

Ultra-compact connectors for space-constrained applications. IP67-certified for reliable protection against water and dust—ideal for high-quality, minimalist wiring of our lights, instruments, or other components.

Recommendations:

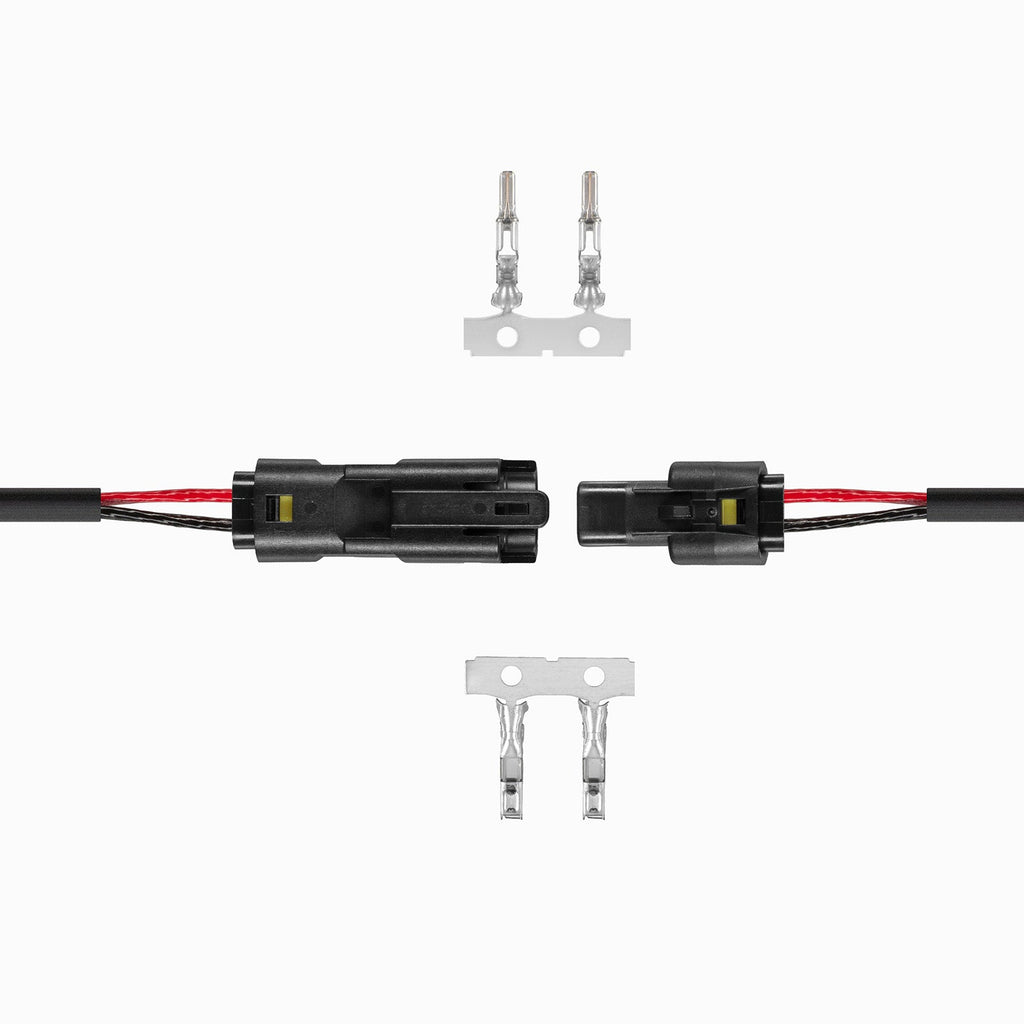

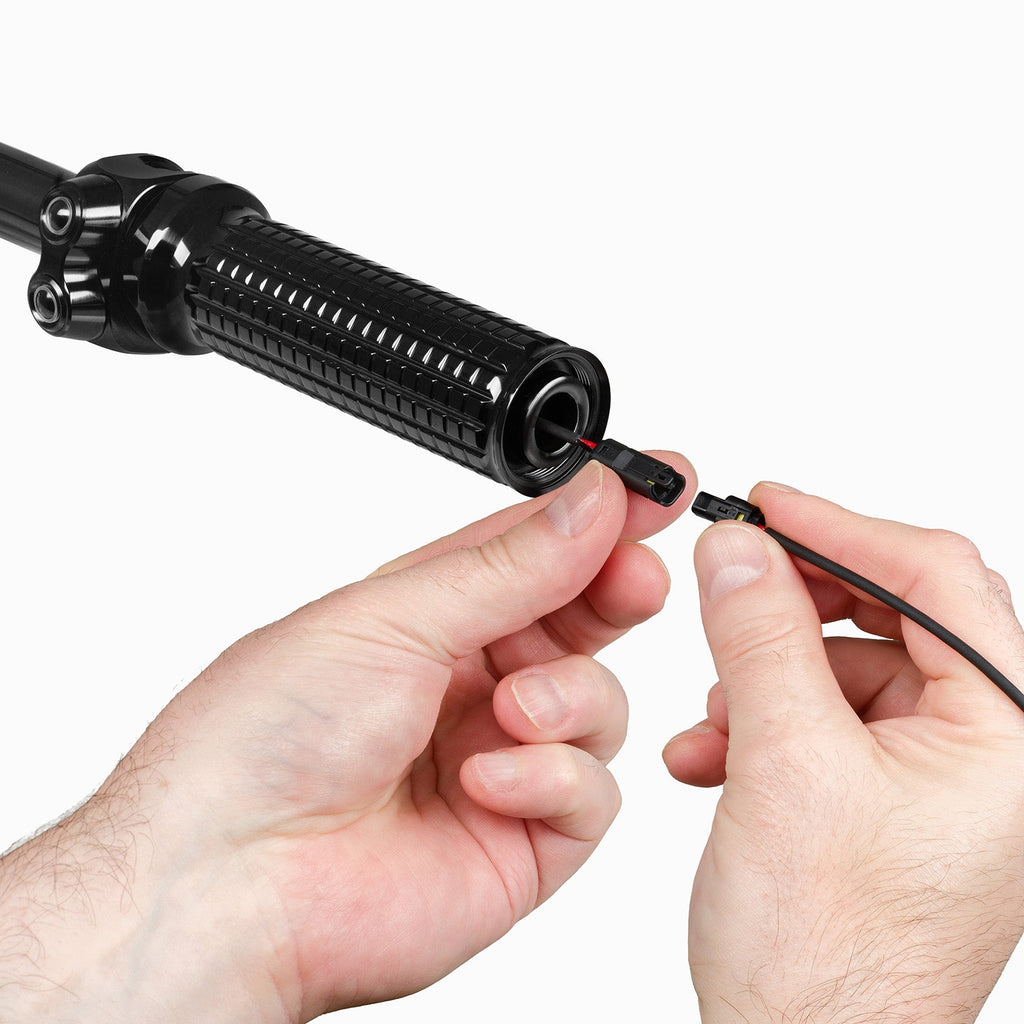

2-pin: mo.blaze pin, mo.blaze ice, mo.blaze disc / cone, mo.blaze tens1, tens5

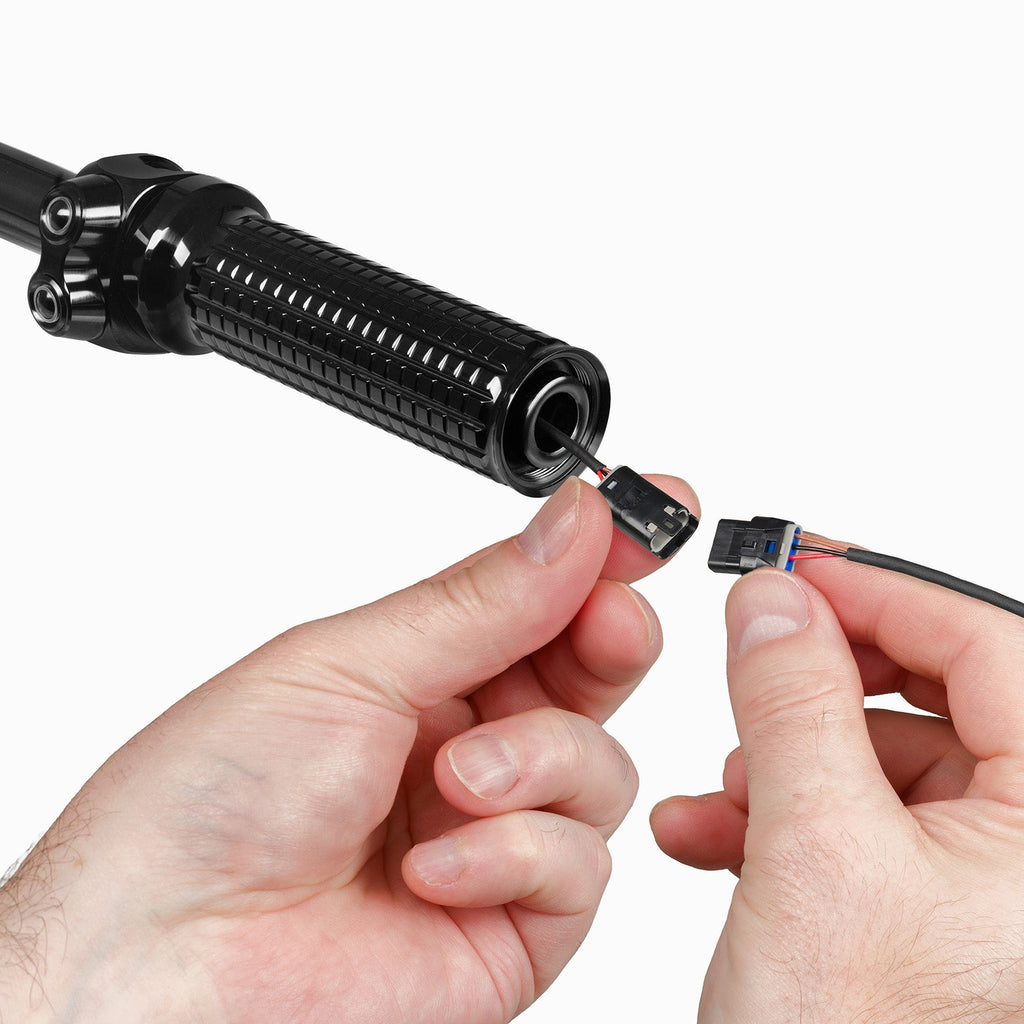

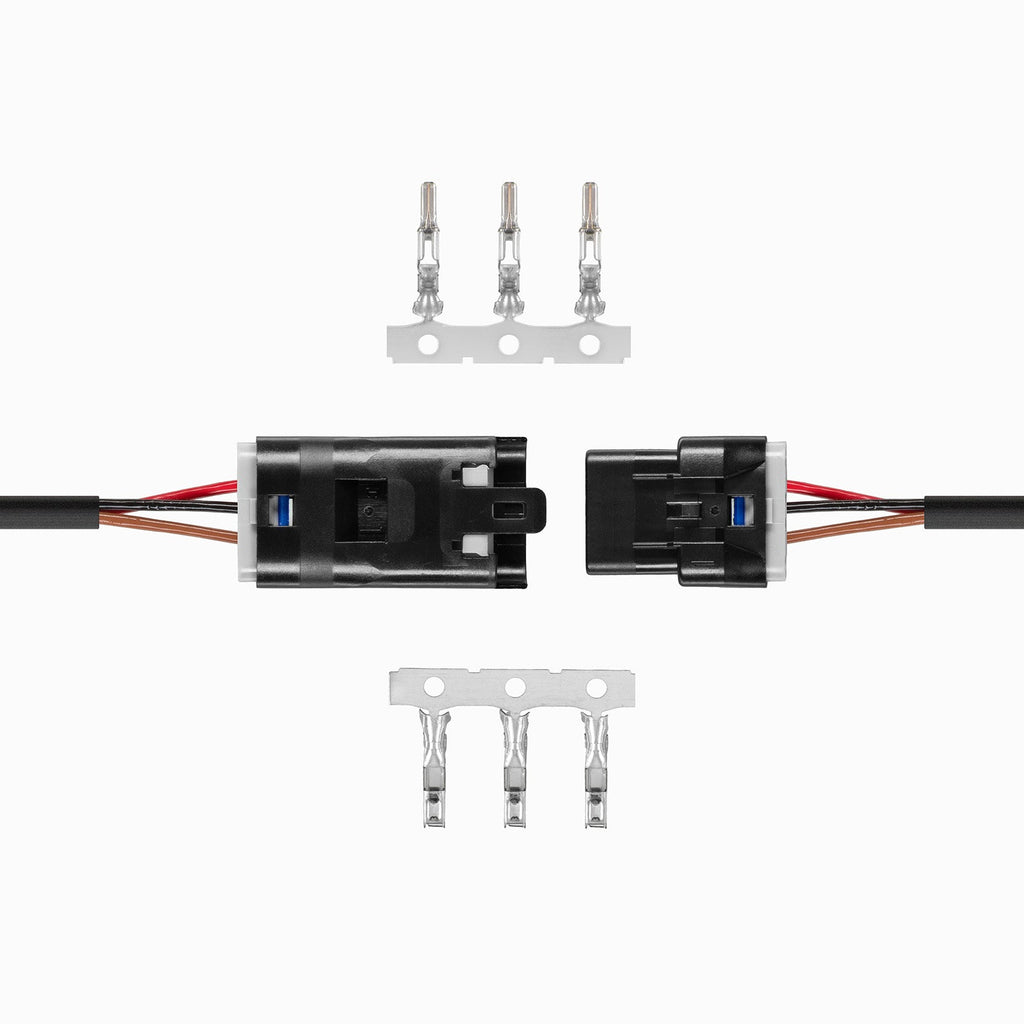

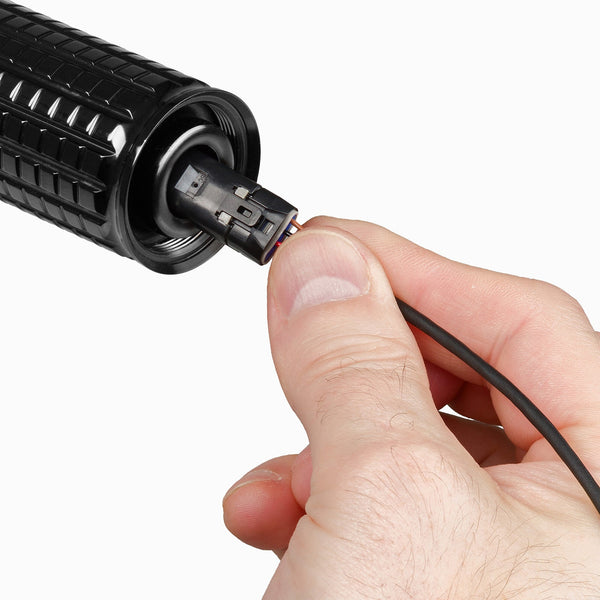

3-pin: mo.blaze tens2, tens4, mo.lock NFC, inductive tachometer sensor

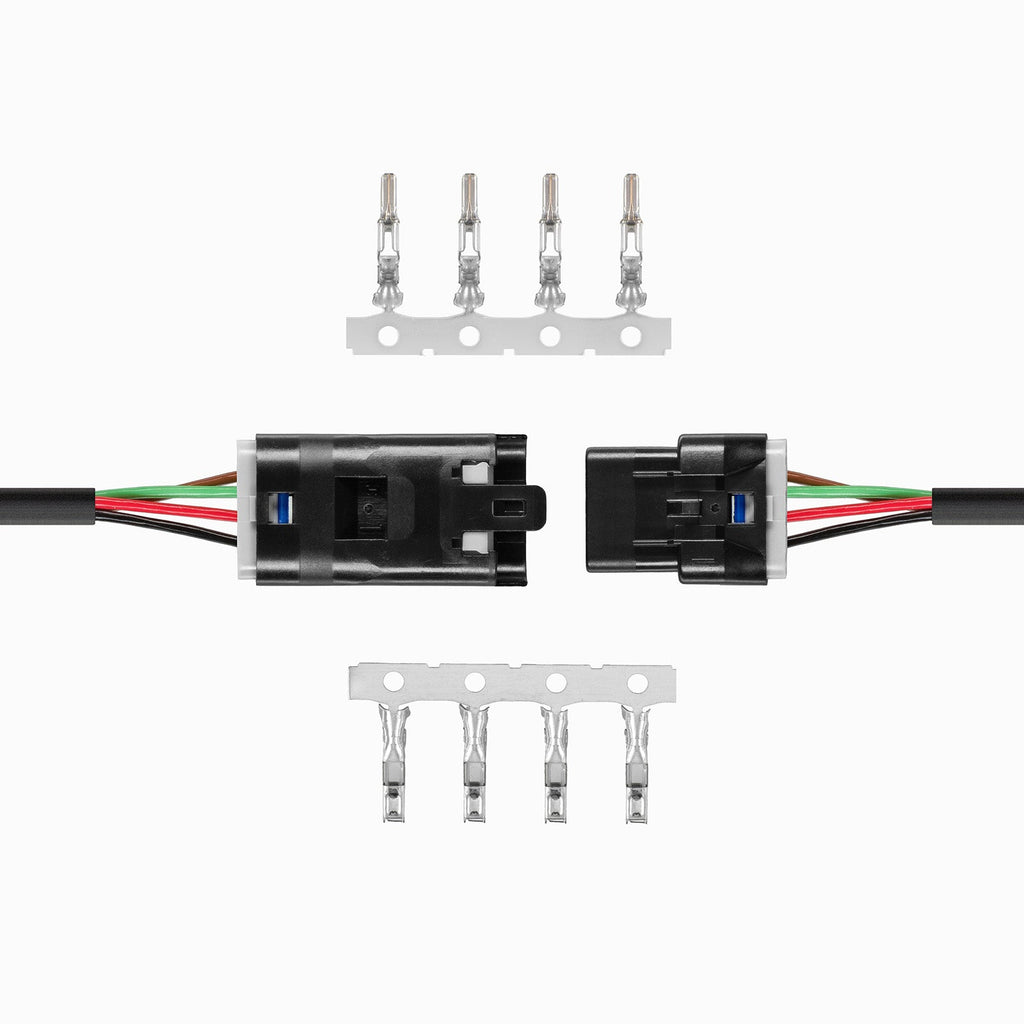

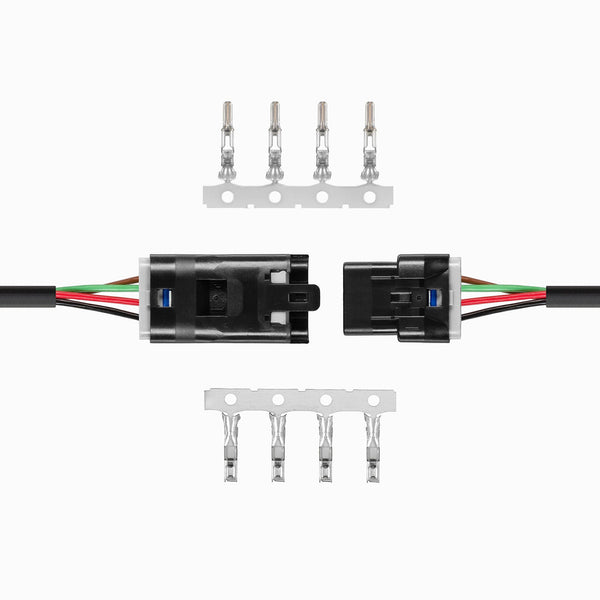

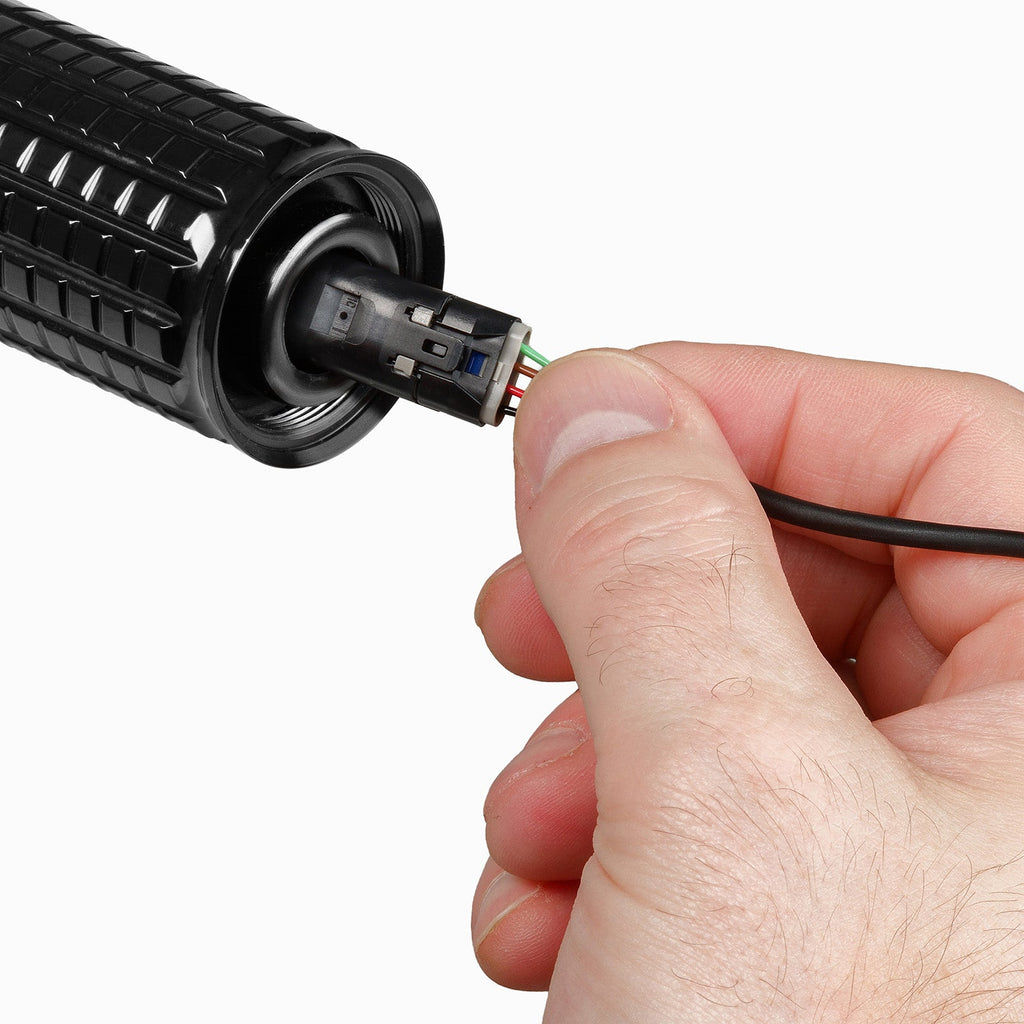

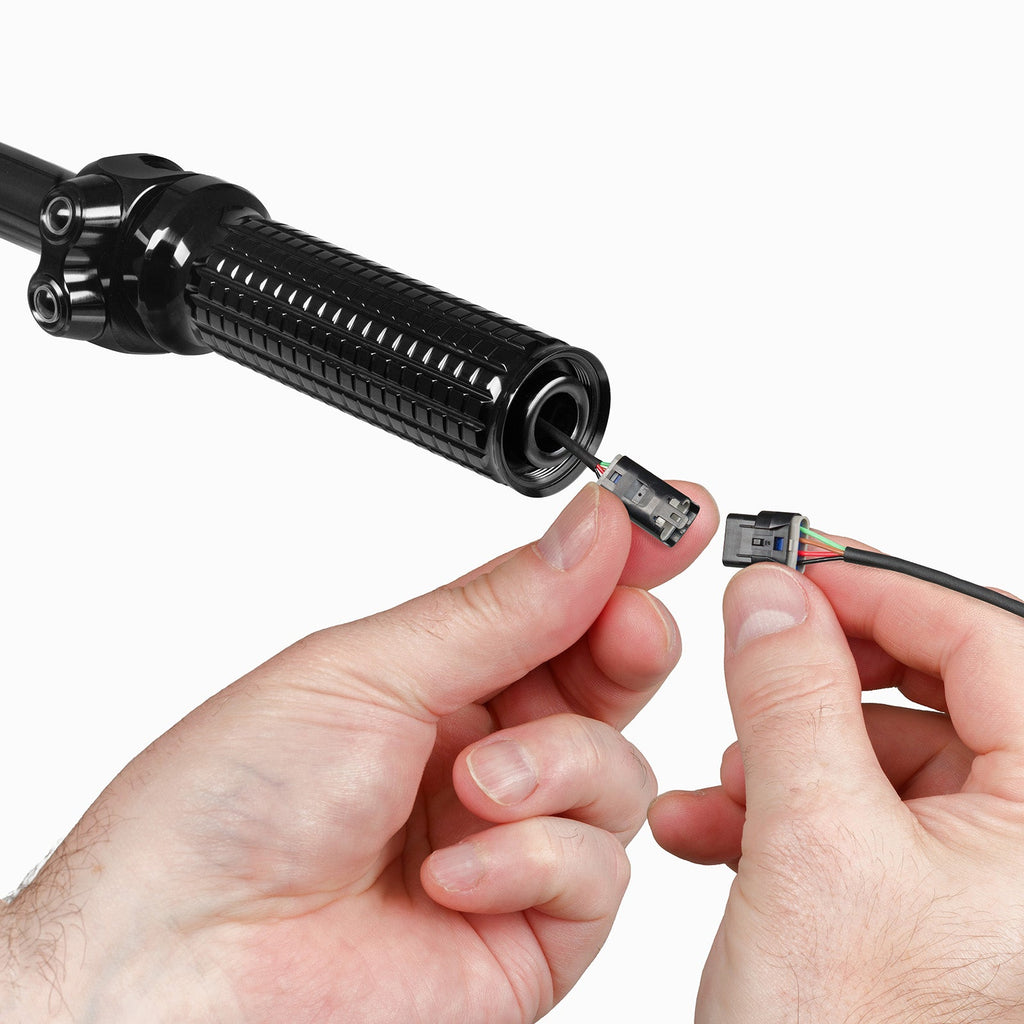

4-pin: mo.blaze tens3

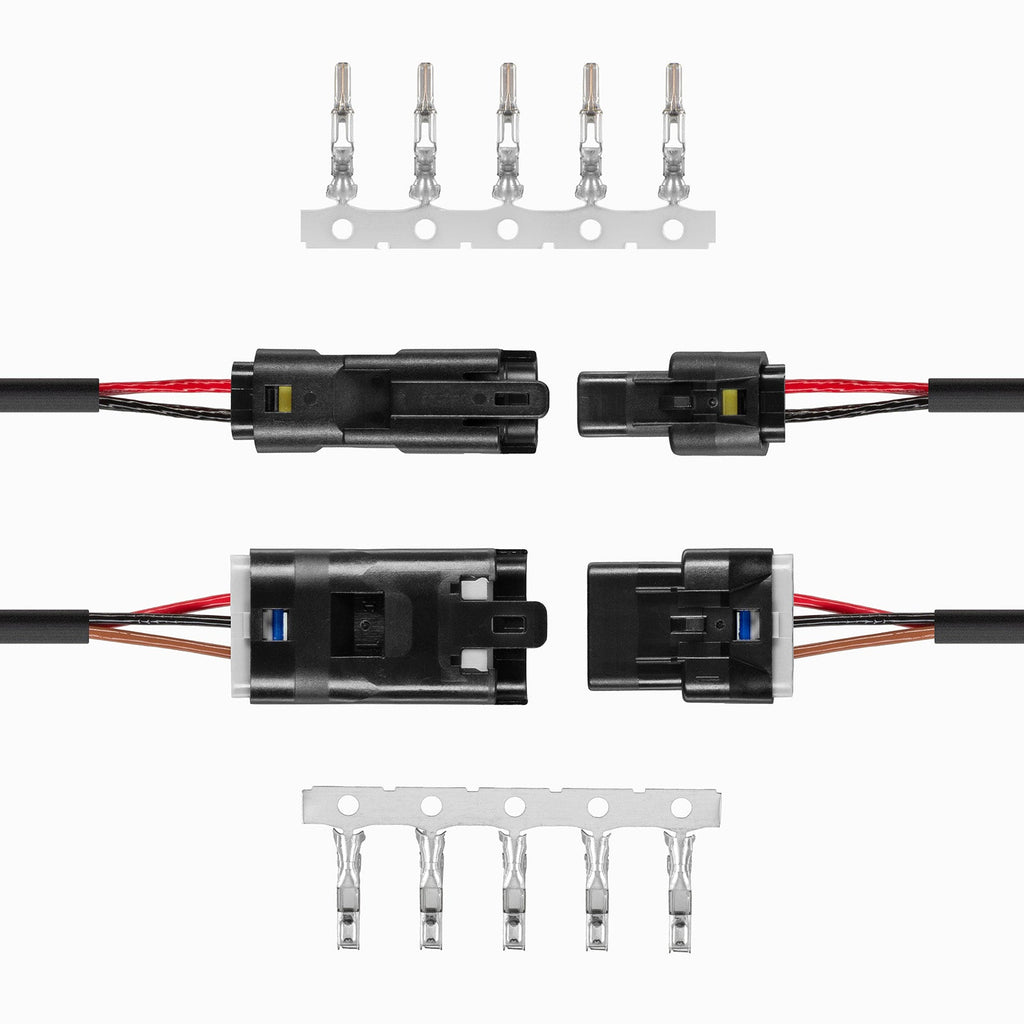

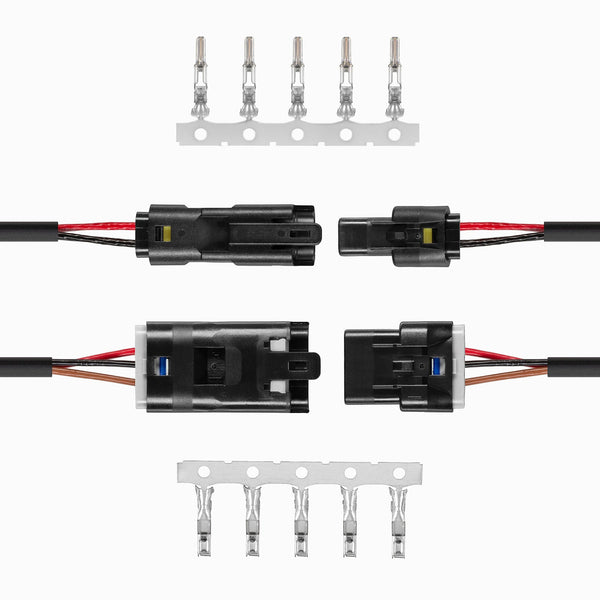

2-pin and 3-pin set: mo.rear, motoscope mini

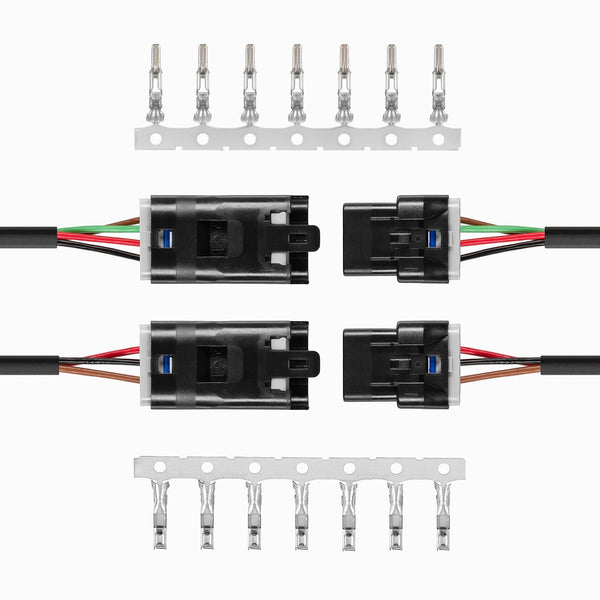

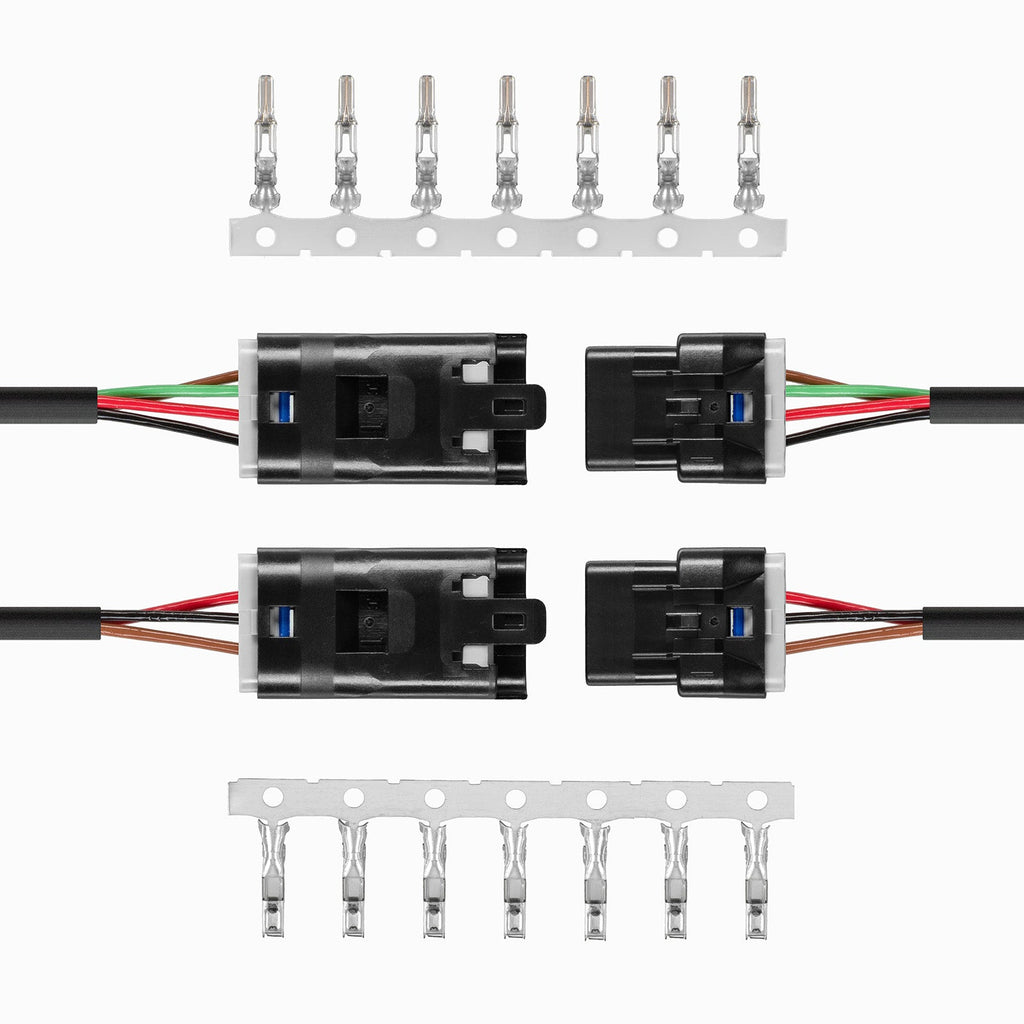

3-pin and 4-pin set: motoscope pro, motoscope tiny, Chronoclassic

Technical data

Connection system: Wire-to-wire
Grid spacing: 2.50 mm

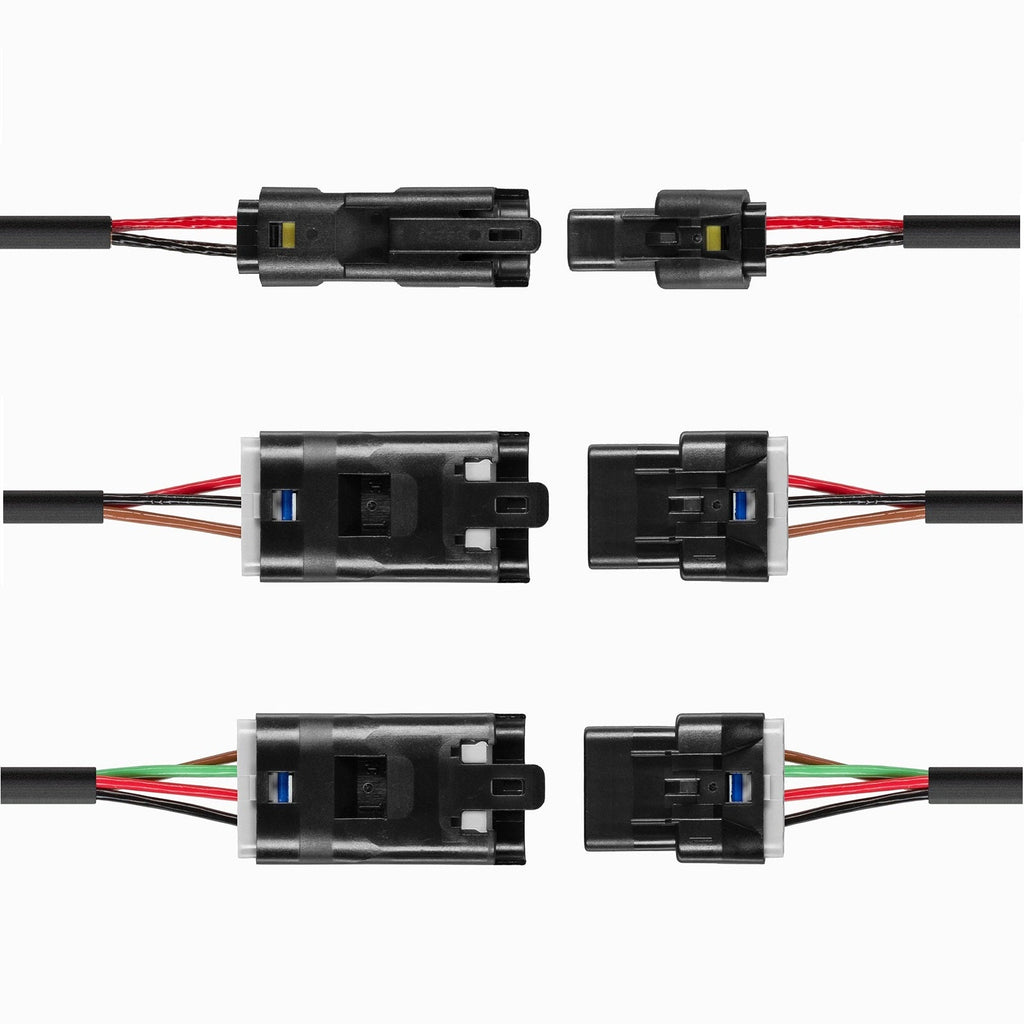

Number of poles: 2-pole / 3-pole / 4-pole
Protection rating: IP67 (dust- and waterproof)
Design: ultra-compact, inline
Locking mechanism: mechanical snap-fit connection
Connection: Crimp terminals
Wire gauge: typically 20–22 AWG

Dimensions L/W/H:

2-pin: 30 mm x 8.2 mm x 7.2 mm
3-pin: 30 mm x 12.2 mm x 7.2 mm
4-pin: 30 mm x 12.2 mm x 7.2 mm

Scope of delivery

Male and female connector housings in the respective pin configurations, plus contacts

Manufacturer: MOTOGADGET
Official source: motogadget.com
