MOTOGADGET
MOTOGADGET Breakout box
$79.00
Can’t find the part or product you need?
Send us a product link, photo, part number, drawing or specification. We can help source products across Taiwan, Hong Kong and Mainland China.
Request Product Sourcing →
INTERNATIONAL ORDERS
Customs duties, import taxes, VAT/GST, brokerage fees and other destination-country charges are not included unless explicitly stated otherwise.
Part Numbers
| Option | Manufacturer Part Number |
|---|---|
| Type B | 1005041 |
| Type A | 1005040 |
Universal interface for connecting indicator lights and sensors to the motoscope pro & motoscope chronoclassic 2
Central connection of all signal cables for indicator lights as well as temperature and pressure sensors. Convenient screw terminals make connection work quick and easy. The small dimensions of the box allow it to be concealed on the vehicle.
Product details
Data is exchanged from the breakout box to the instrument via a single cable. The breakout box is waterproof (IP69) and insensitive to vibration.

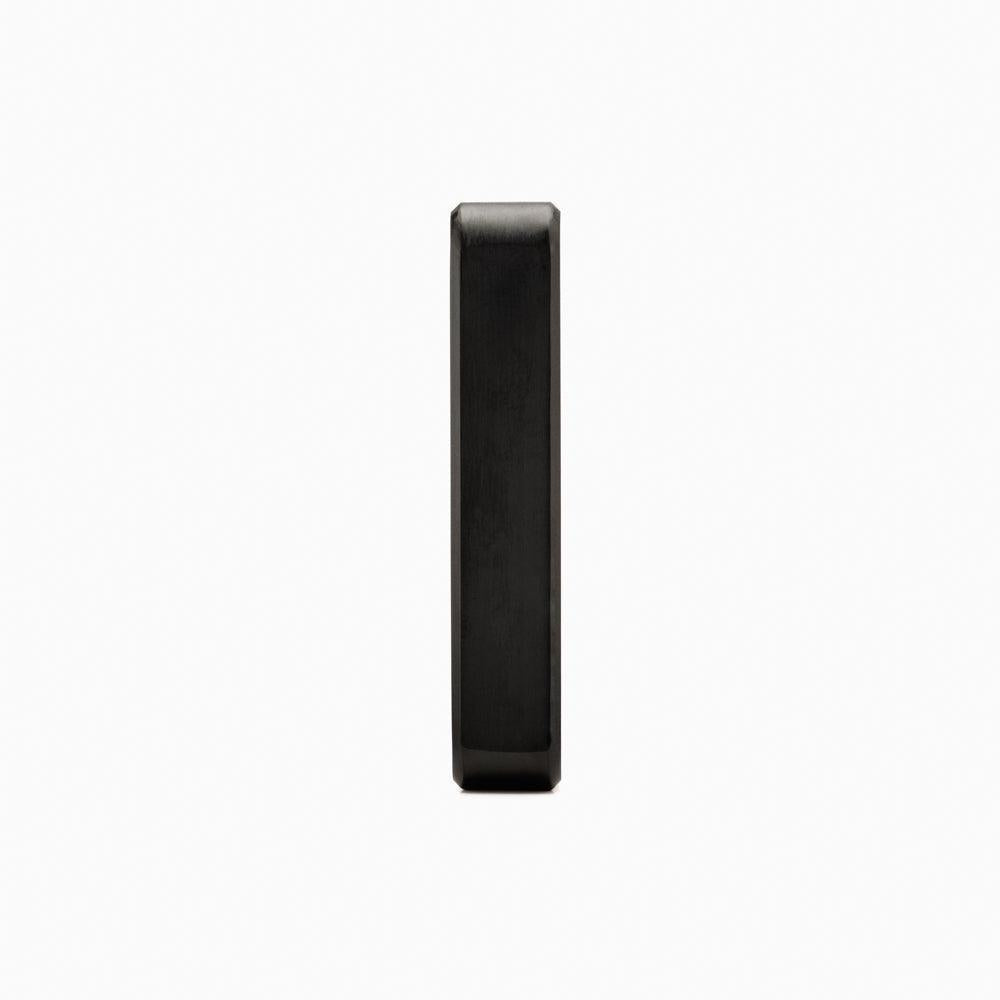

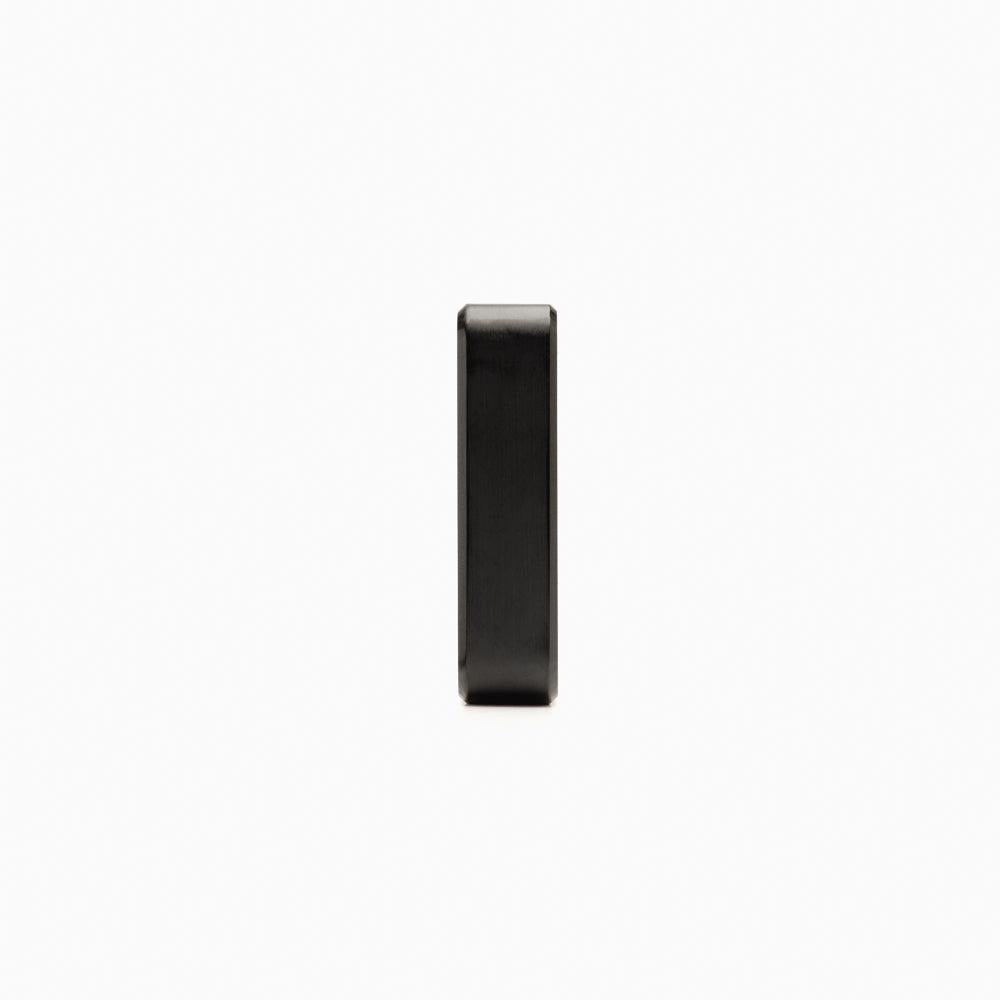

- Dimensions type A: 28 x 39 x 10 mm
Dimensions type B: 28 x 53 x 10 mm

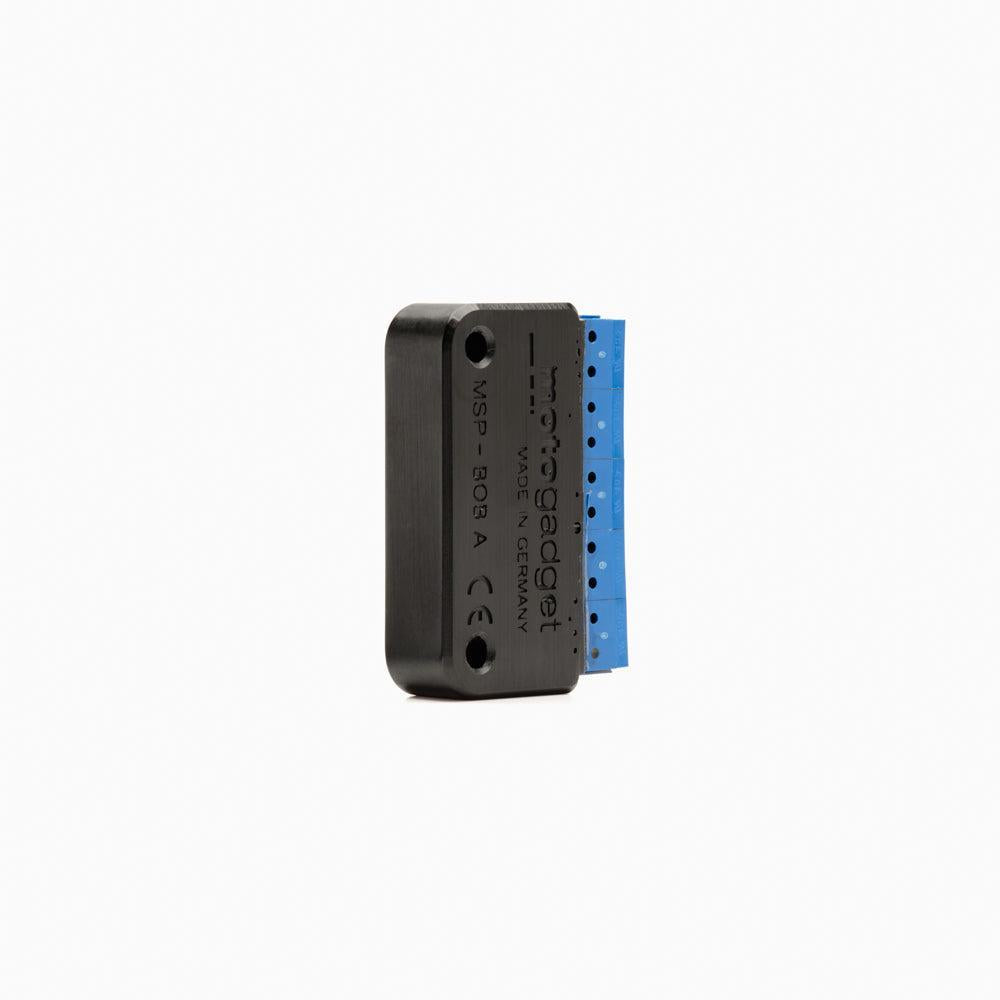

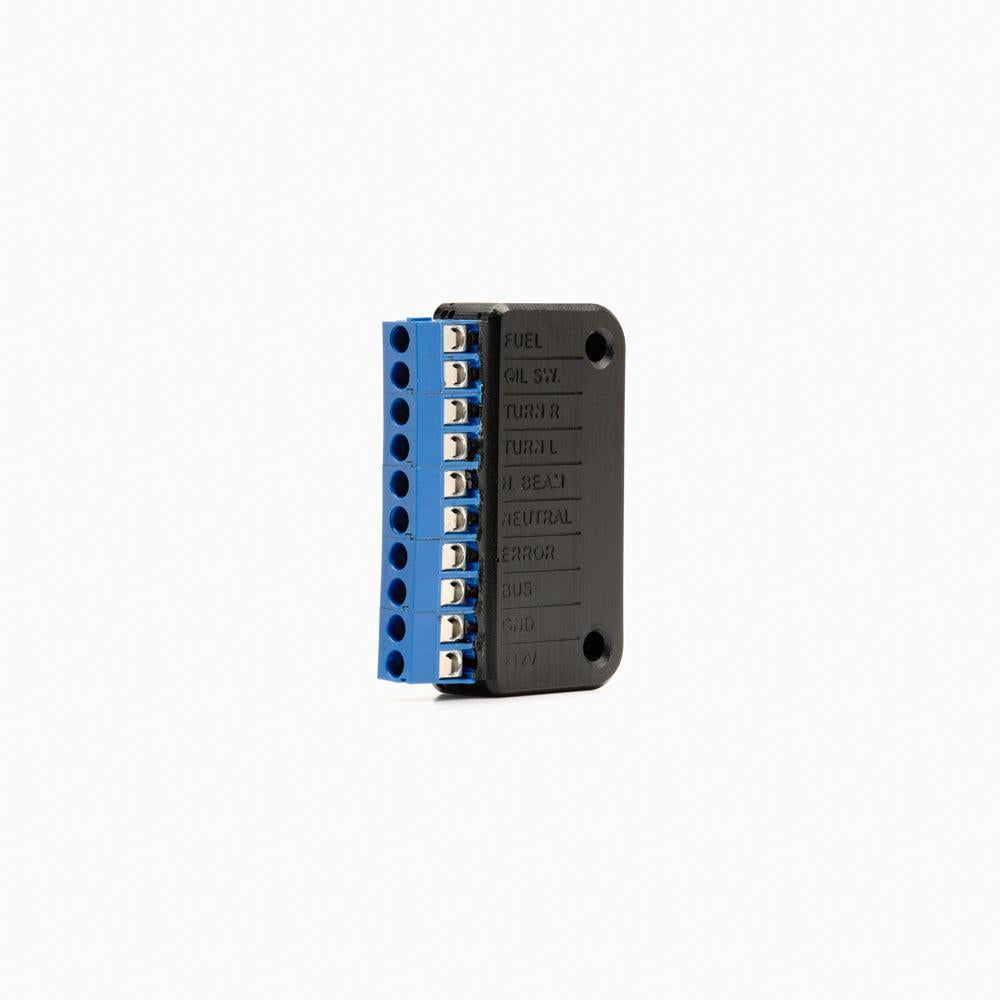

Breakout box A
- Tank content/reserve
- Oil pressure switch
- Blinker right
- Turn signal left
- High beam
- Neutral
- Motor warning light

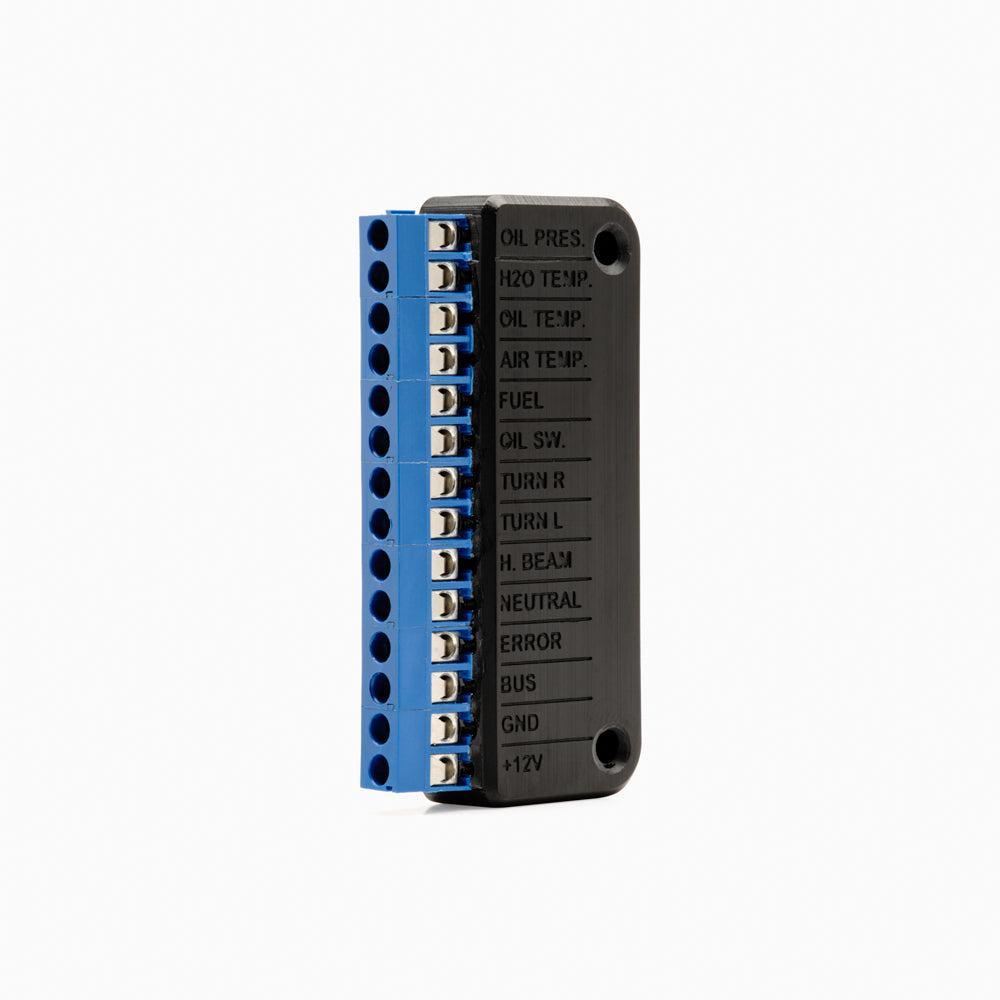

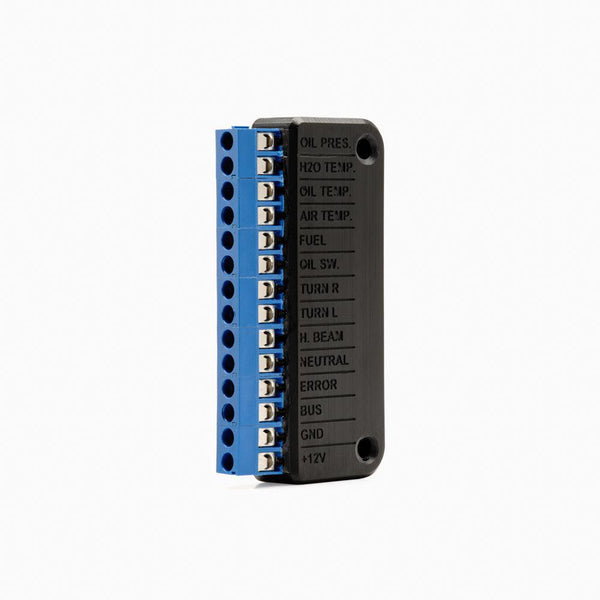

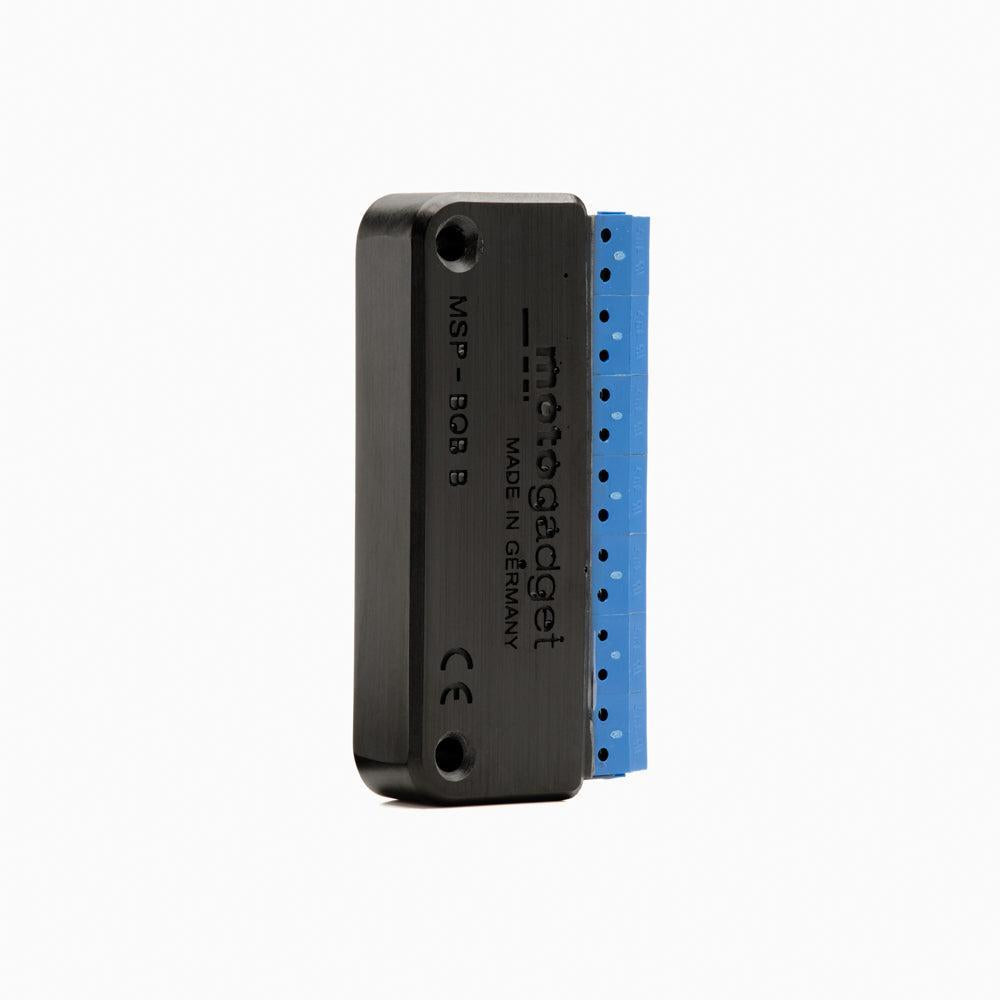

Breakout box B
- Tank content/reserve
- Oil pressure switch
- Blinker right
- Turn signal left
- High beam
- Neutral
- Motor warning light
- Oil temperature sensor
- Water temperature sensor
- Air temperature sensor
- Oil pressure sensor
Manufacturer: MOTOGADGET
Official source: motogadget.com
