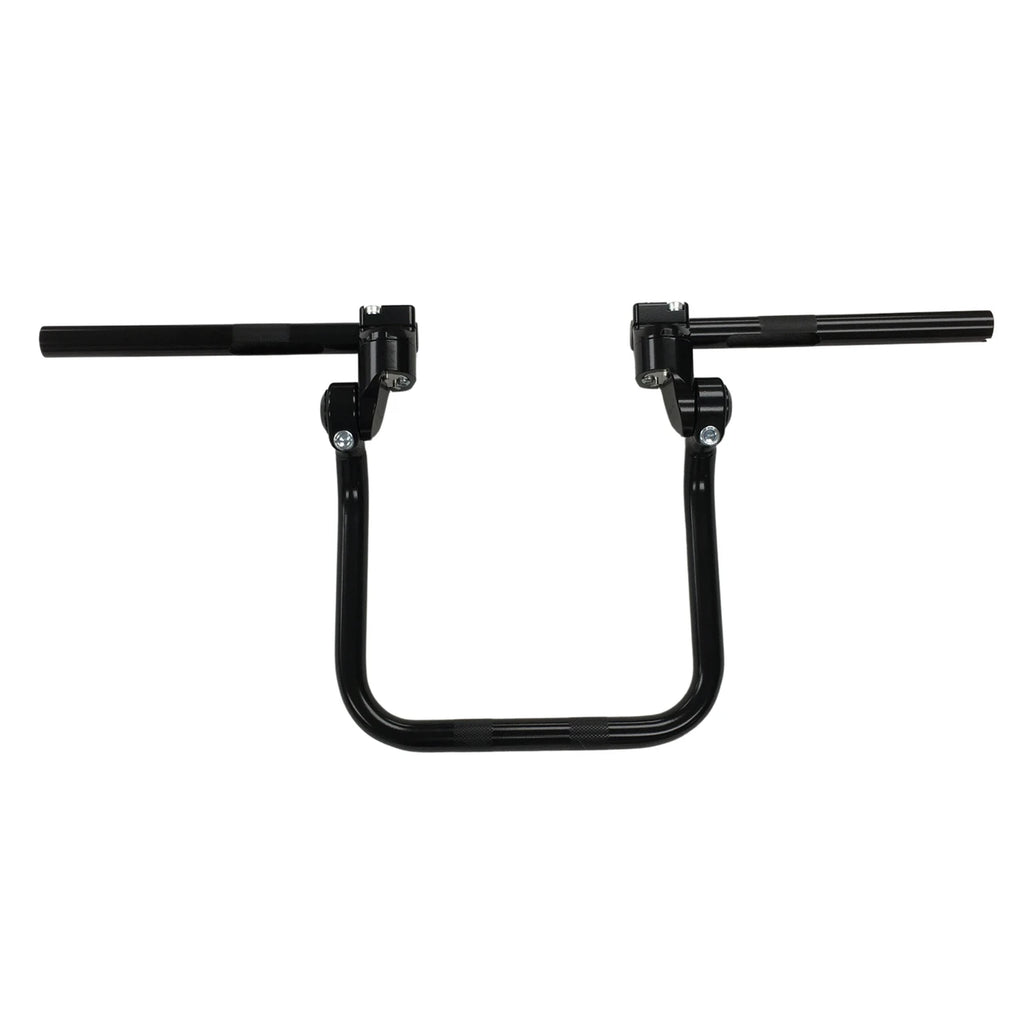

HeliBars Horizon Road King multi-axis adjustable handlebar system for Harley Davidson

Part number: HZ10156

HeliBars® Horizon™ Late Model Road King 2014+ Multi Adjustable Replacement Handlebar System for Cruisers and other bikes with a 1" (25mm) diameter handlebar

• Positioning adjustable in no less than 3 ways: Bars rotate up and down, forwards and backwards, inwards and outwards
• Grip wrist angle adjustable for ultimate fit and long-range comfort
• Brake and clutch lever angles adjustable for perfect reach
• Taller and more rearset than the manufacturer's or any after market bar
• Ultimate touring comfort. No more wrist, shoulder, neck or back pains caused by reaching out of your comfort zone
• Vastly improved leverage and handling especially at lower speeds
• Exceptional build quality backed by a 30 day money back satisfaction guarantee

• 2" to 6" (5 cm to 15 cm) rear-adjustable offset**
• Width adjusts from 27" to 32" depending on wrist angle adjustment.
• Knurling is 3.5" (9 cm) width - this is the distance between the center lines of the 2 knurled (cross hatched) sections which prevent bar slip/rotation
• Interior bend to bend width is 10" (25.4 cm) - this is the length of the straight central section of the bar before it bends on each side (the clamped section)
• 1" (25 mm) bar diameter
• Accommodates Electronic Throttle
• 2007 and earlier Harley Davidson models require a flexible brake line
• You may need to change risers and/or cables and hydraulic lines for proper fitting on the Softail or other models.
• American Made

**Please note that these are the true measurements taken at the wrist position, not at the fixing point or fork or triple clamp, the shape and angles of the HeliBars product give the final result required and indicated in the product description.

Full installation instructions are available to download prior to purchase should you wish to see them, if you are unable to find the instructions do not hesitate to contact us and we will happily provide them for you.
