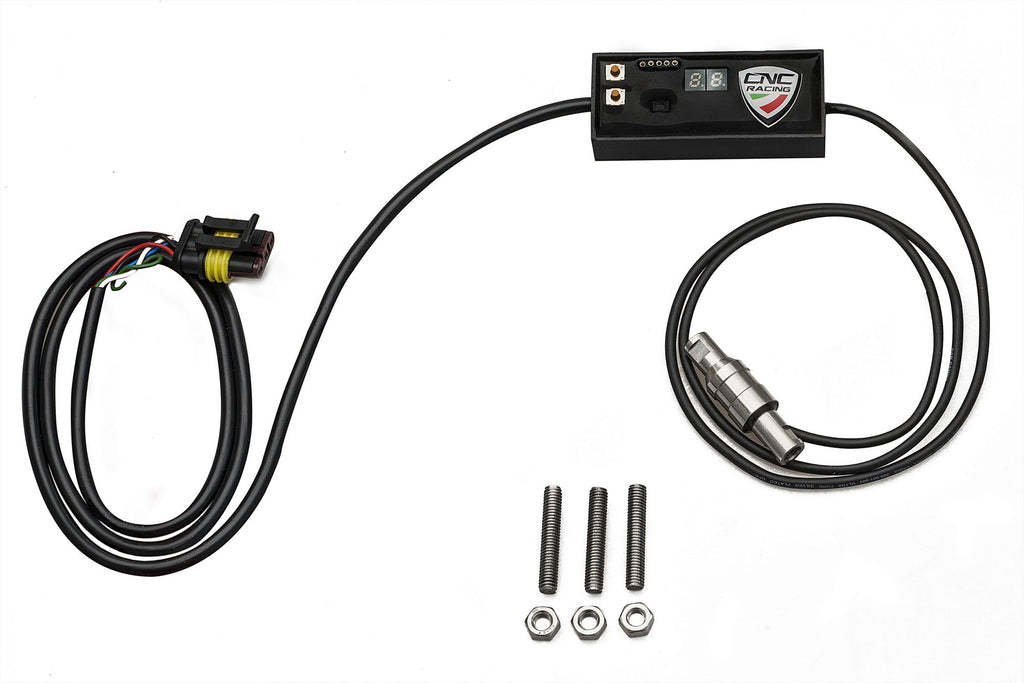

CNC RACING | Universal power shifter

Load cell technology (Strain Gauge)

Able to work both pushing and pulling,

- 2 parallel outputs:
Digital , settable as normally open or normally closed circuit, connection with Dynojet Power Commander and Rapid Bike
Analog ,0-5V,settable in one or both directions. Reading range: 0 100Kgf, connection with Marelli, Motec and similars and Data Loggers,
- Instructions for YEC, HRC and YOSHIMURA ECUs,
- Calibrated and calibratable at any time,
- MAX LOAD recording,
- CURRENT LOAD display,
- Failure Check warning,
- Automatic temperature, vibrations and creep adjustment,
- Set as normally Open/Close,

Eventual Digital output to allow the DIRECT CUT of Injection/Ignition Power

• Plug&Play connectors for most Japanese sports bikes, Ducati, Aprilia, KTM, Triumph, Guzzi BMW, Morini, Bimota, BENELLI. For any other bike an electric wiring scheme is given,
• Compushift feature (switchable off) automatically evaluate the best killtime for each upshift, according to engine conditions, load, rpm and acceleration,making a choice between 500 different killtime in the range 20 180ms,
• Smoothshift feature to ease the shock loads on the gear box and chain and to lessen loss of traction at upshift, Thanks to this it s possible to change gear at full throttle even at maximum tilt angle.
• Programmable on/off rpm threshold.
• Adjustable killtime (40 99ms).
• Dimensions: =15mm,L=55mm,

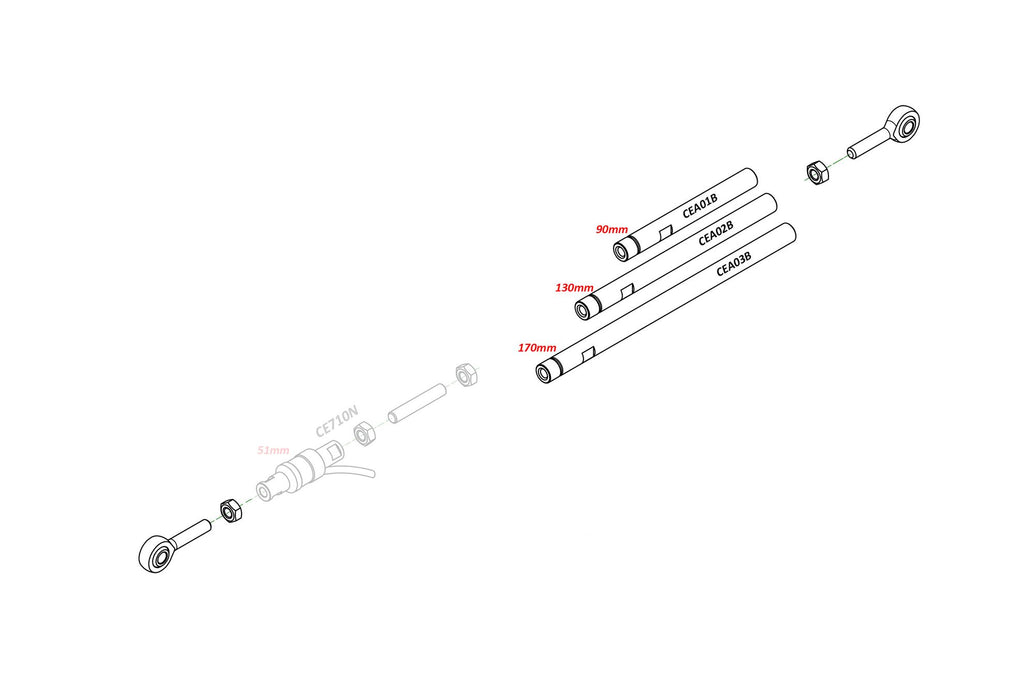

• Provided with rod already holed and threaded,just to be cut. Available either M6 or M8 holes.
• IP65 guaranteed i.e. Water and Dust proof,
• Really 100% reliable: 1,500,

Compatibility

• Aprilia Rsv V2 1000 (2004-2008)
• Aprilia Tuono V2 1000 (2002-2009)
• Bmw S1000 Rr 2009 K46
• Bmw S1000 Rr 2010 K46
• Bmw S1000 Rr 2011 K46
• Bmw S1000 Rr 2012 K46
• Bmw S1000 Rr 2013 K46
• Bmw S1000 Rr 2014 K46
• Ducati Diavel 1200 (2010-2018)
• Ducati Hypermotard 1100 Evo Sp (2010-2012)
• Ducati Hypermotard 1100 Evo (2010-2012)
• Ducati Hypermotard 1100 S (2007-2009)
• Ducati Hypermotard 1100 (2007-2009)
• Ducati Hypermotard 796 (2010-2012)
• Ducati Hypermotard 821 Sp (2013-2015)
• Ducati Hypermotard 821 (2013-2015)
• Ducati Hypermotard 939 Sp (2016-2018)
• Ducati Hypermotard 939 (2016-2018)
• Ducati Hypermotard 950 Sp (2019-2025)
• Ducati Hypermotard 950 (2019-2025)
• Ducati Hypermotard Hyperstrada 821 (2013-2015)
• Ducati Hypermotard Hyperstrada 939 (2016)
• Ducati Monster 1000 (2003-2006)
• Ducati Monster 1100 Evo (2012-2013)
• Ducati Monster 1100 S (2009-2010)
• Ducati Monster 1100 (2009-2010)
• Ducati Monster 1200 R (2016-2019)
• Ducati Monster 1200 S (2014-2021)
• Ducati Monster 1200 (2014-2021)
• Ducati Monster 600 (1994-2002)
• Ducati Monster 620 (2002-2006)
• Ducati Monster 695 (2006-2008)
• Ducati Monster 696 (2008-2014)
• Ducati Monster 750 (1996-2002)
• Ducati Monster 796 (2010-2014)
• Ducati Monster 800 (2003-2005)
• Ducati Monster 821 (2014-2020)
• Ducati Monster 900 (1993-2002)
• Ducati Monster S2R 1000 (2005-2007)
• 其餘車型請依原廠相容資料確認
