CNC RACING | Left handlebar switch - Street use

The switch body is machined from full 7075 aluminium (Ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery. All the buttons compliant with the IP67 military standard that certifies the switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.
Assembly is very easy and plug&play: just dismantle the original switch with the tools recommended by the Manufacturer and the master cylinder clamp; then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.

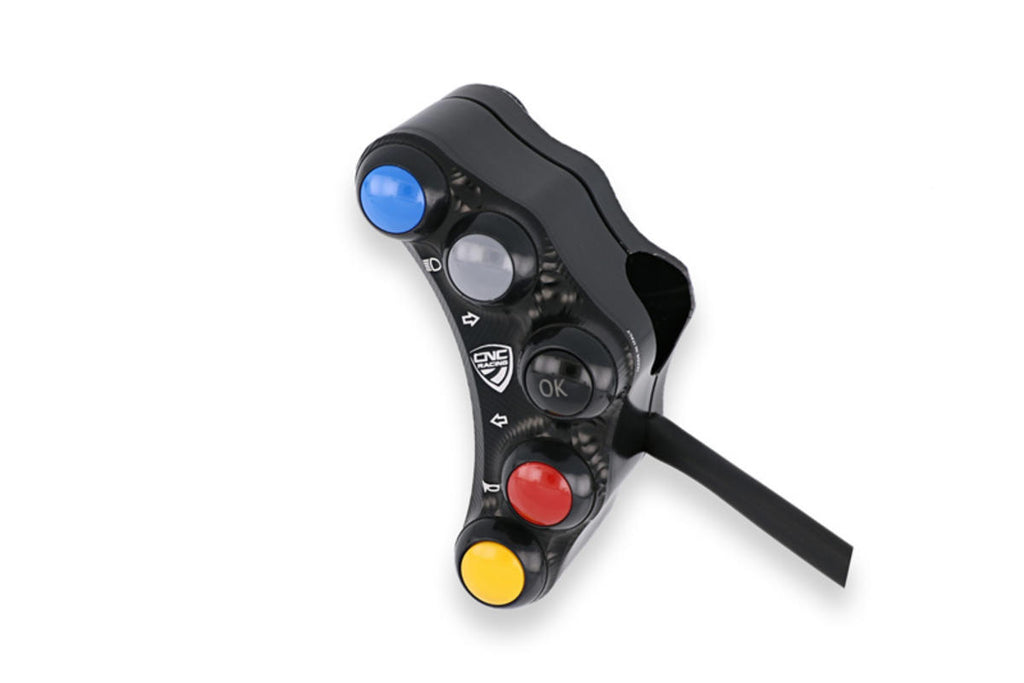

Front buttons
Blue - Beam
Grey - Turn indicator right
Black - OK
Red - Turn indicator right
Yellow - Horn

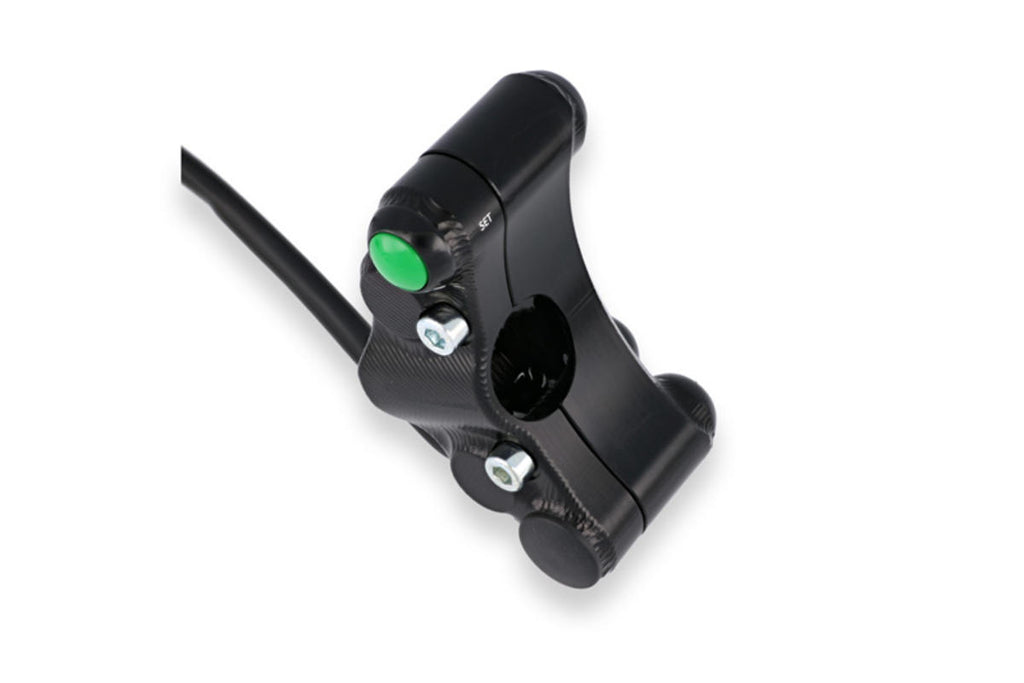

Rear Button
Green - SET

Compatibility

• Mv Agusta Brutale 4 1090 Rr (2010-2011)
• Mv Agusta Brutale 4 750 S (2003-2008)
• Mv Agusta Brutale 4 910 R (2005-2011)
• Mv Agusta Brutale 4 910 S (2003-2008)
• Mv Agusta Brutale 4 920 (2011-2012)
• Mv Agusta Brutale 4 990 R (2009-2012)
• Mv Agusta F4 1000 312 R (2007-2008)
• Mv Agusta F4 1000 R (2010-2012)
• Mv Agusta F4 1000 Rr (2010-2012)
• Mv Agusta F4 1000 (2010-2012)
• Mv Agusta F4 1078 312 Rr (2007-2008)
• Mv Agusta F4 750 1000 (2000-2006)
• Mv Agusta F4 Veltro (2008)
