CNC RACING | Left handlebar switch - Race use

The switch body is machined from full 7075 aluminium (Ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery. All the buttons compliant with the IP67 military standard that certifies the switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.
Assembly is very easy and plug&play: just dismantle the original switch with the tools recommended by the Manufacturer then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.
The racing handlebar switch maintains the functions of the Joystick (5 front buttons) and of the TC control/Pitlane (3 rear buttons); all the other functions of the original switch are not present on this version dedicated to the track:

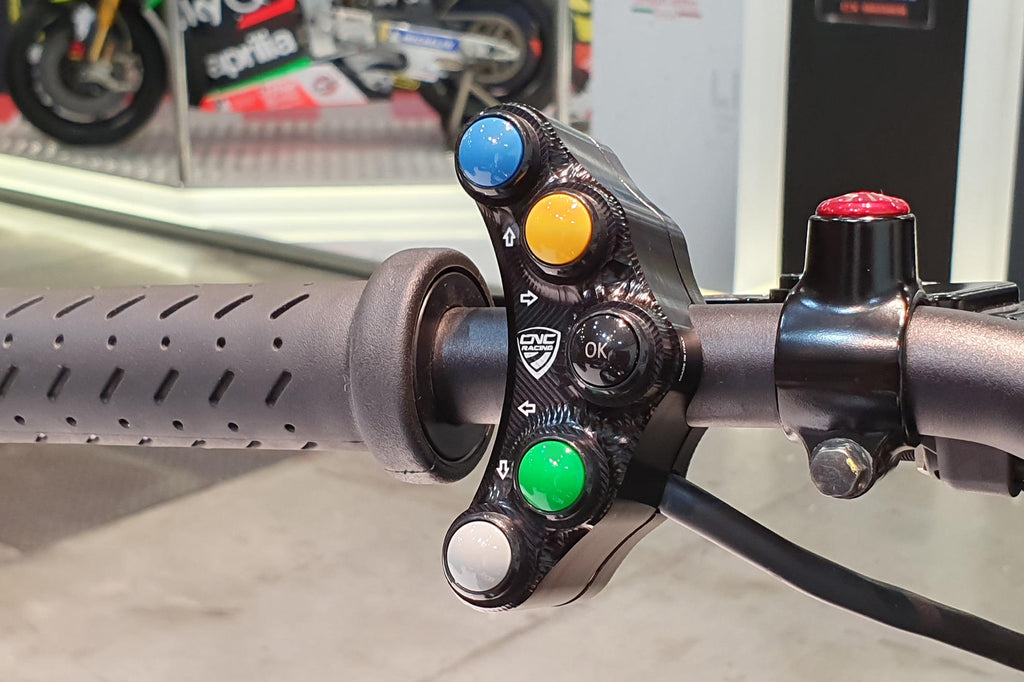

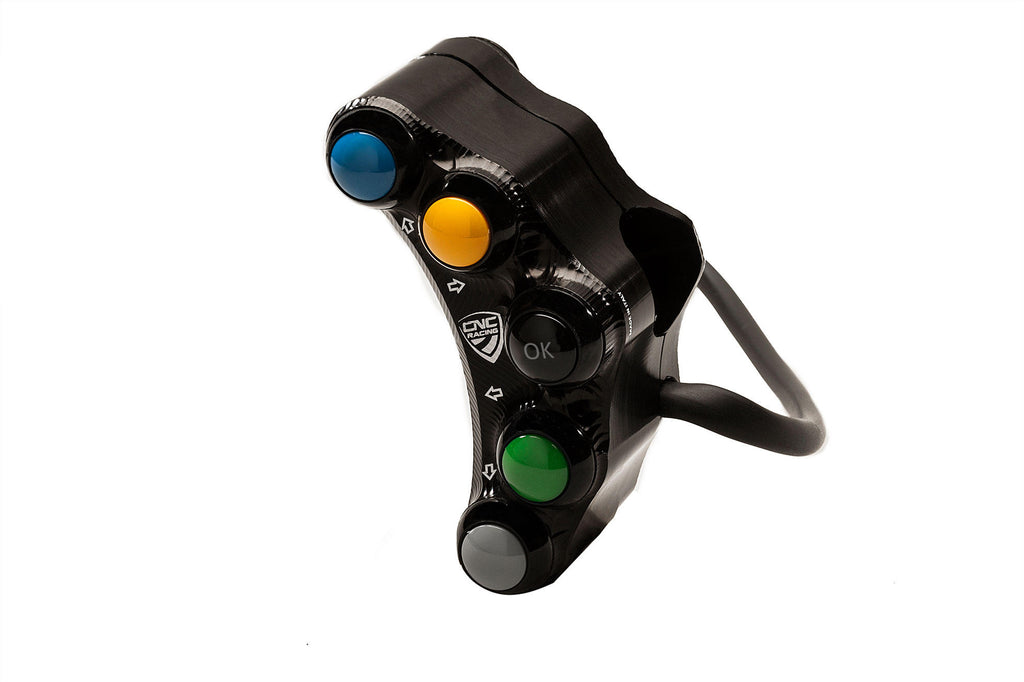

Front buttons
Blue - Up
Yellow - Right
Black - OK
Green - Left
Grey - Down

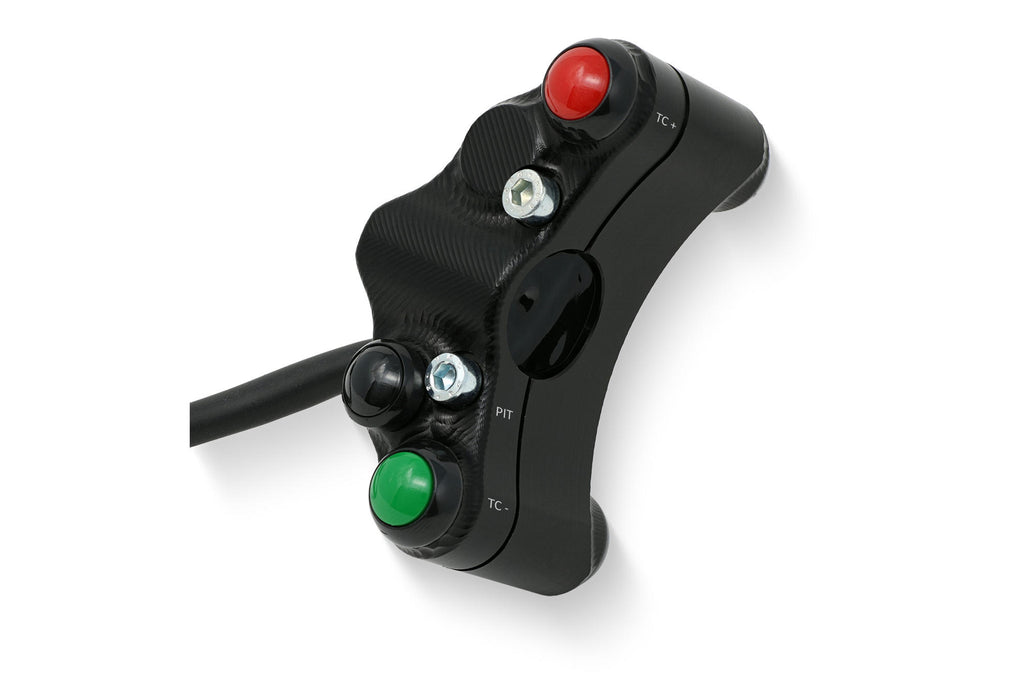

Rear Buttons
Red - Traction Control +
Green - Traction Control -
Black - Pitlane

Compatibility

• Aprilia Rsv4 Racing Factory (2017-2018)
• Aprilia Rsv4 Rr (2017-2018)
• Aprilia Tuono V4 1100 Factory (2017-2019)
• Aprilia Tuono V4 1100 Rr (2017-2020)
