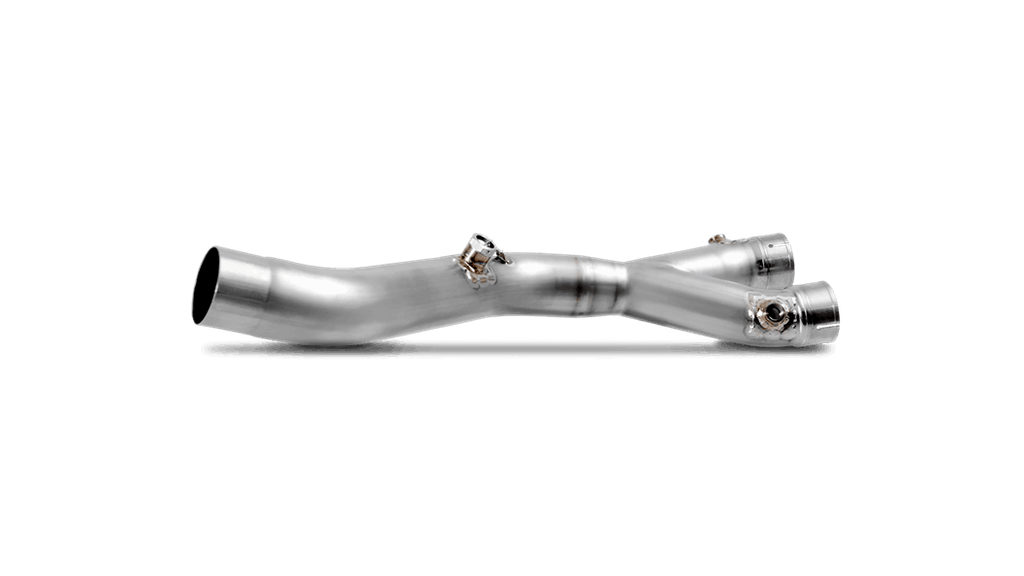

Akrapovic YAMAHA YZF-R1 2020 Optional Link Pipe/Collector (Titanium) L-Y10SO17
Designed exclusively for use with the titanium Slip-On Line muffler, this optional lightweight titanium link pipe will transform the exhaust and take the Yamaha R1 to a higher performance level. Providing more power and increased torque, the link pipe makes full use of the machine’s potential.
Link pipe/collector can also be mounted on YZF-R1M model.
For perfect performance, throttle response, and durability, special mapping developed by Akrapovič R&D in collaboration with our partner Rapid Bike by Dimsport is recommended. Please visit https://www.dimsport.us/en/rapid-bike/akrapovic/, where you can download the mapping.
THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.
Technical data
| Unit | Stock | Akrapovič | Max gain | |
|---|---|---|---|---|
| Max. power | kW | 139.9 / 13750 rpm | 141.2 / 13800 rpm | + 6.3 / 7250 rpm |
| HP (m) | 190.2 / 13750 rpm | 191.9 / 13800 rpm | + 8.6 / 7250 rpm | |
| HP (i) | 187.6 / 13750 rpm | 189.3 / 13800 rpm | + 8.4 / 7250 rpm | |
| Max. torque | Nm | 109.6 / 9250 rpm | 111.3 / 10850 rpm | + 8.5 / 7150 rpm |
| lb-ft | 80.8 / 9250 rpm | 82.1 / 10850 rpm | + 6.2 / 7150 rpm | |
| Weight | kg | 7.5 | 1.0 | - 6.5 |
| lb | 16.5 | 2.2 | - 14.3 | |
| % | - 86.7 | |||
| Noise | dB | 98 / 6750 rpm | 108.7 / 6750 rpm | 10.7 |
| Inst. time | min | 60 |
measured with:
