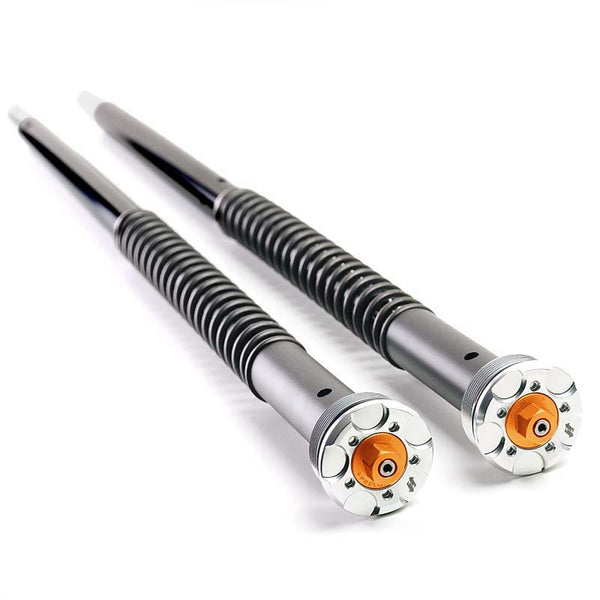

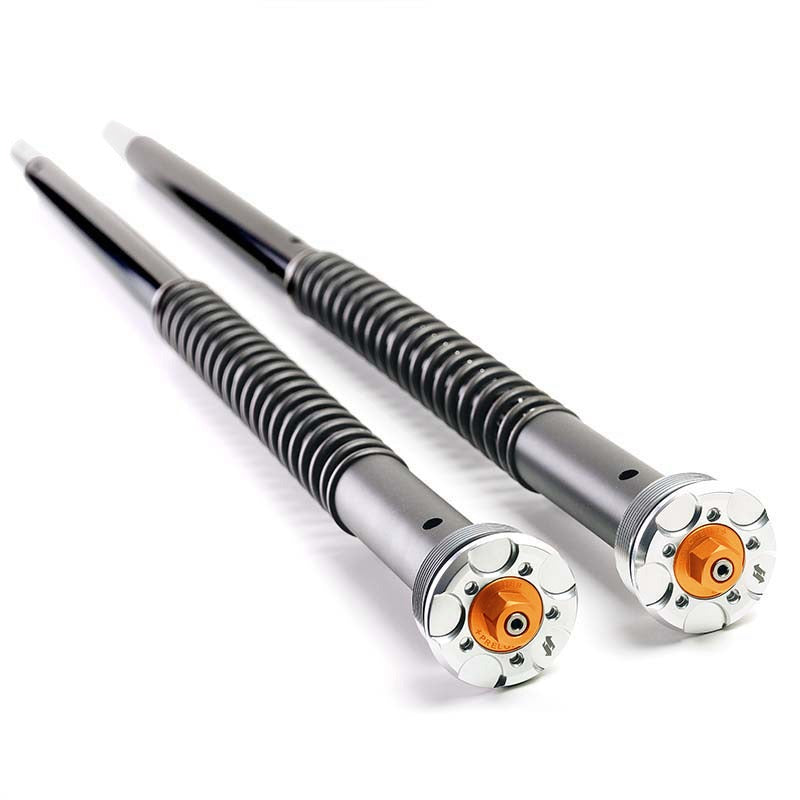

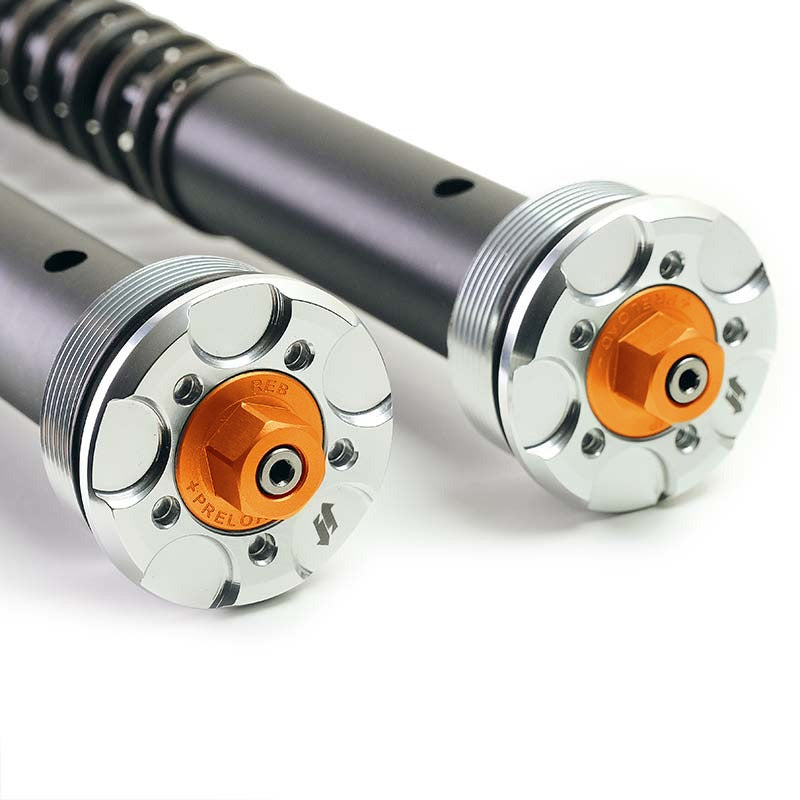

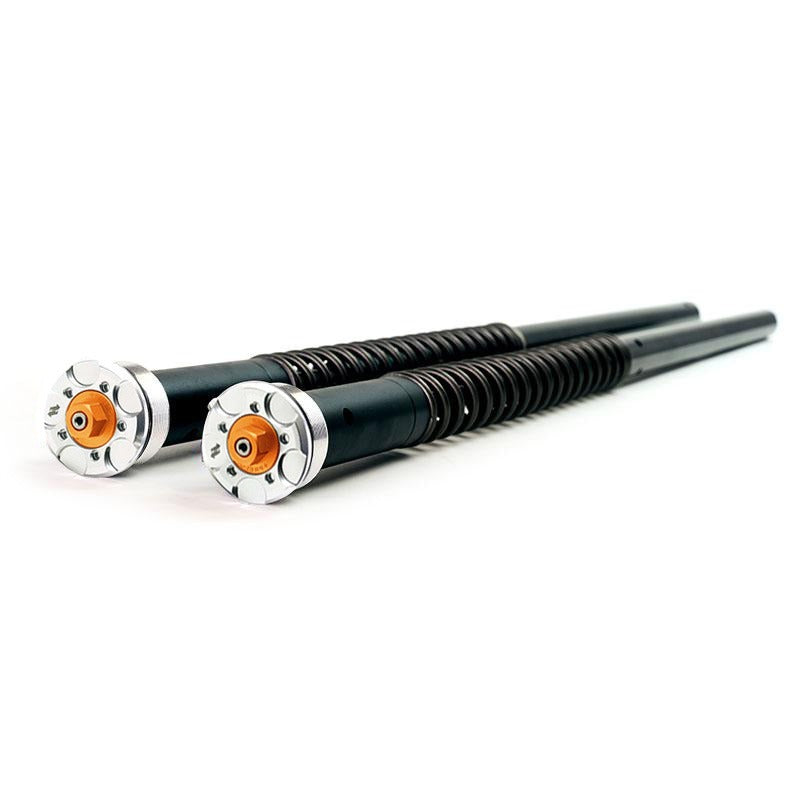

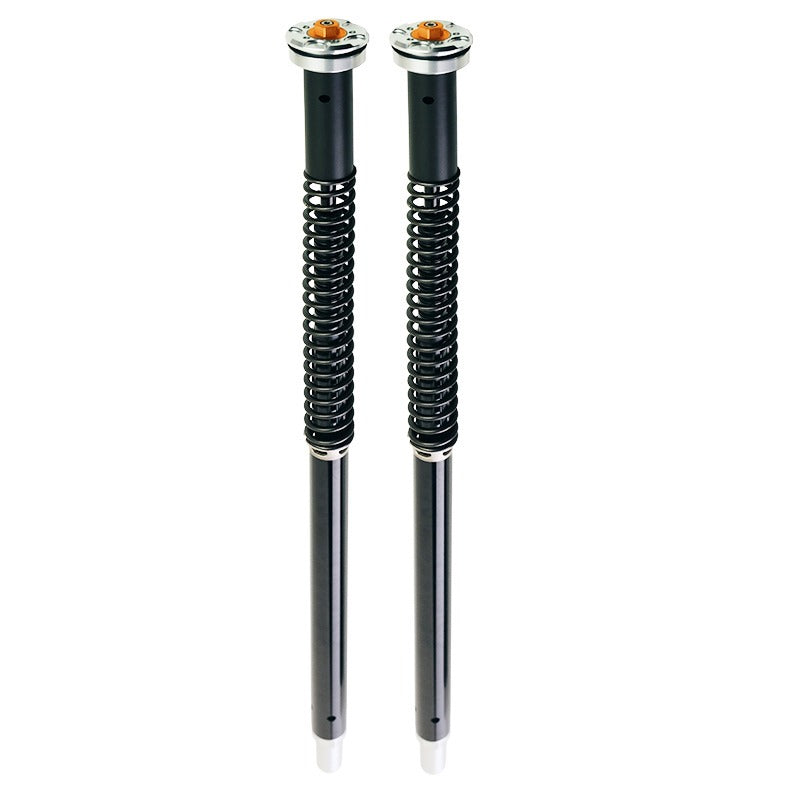

UNIT GARAGE Cartridges fork (high version)

The standard suspensions of the NineT models are rather basic, to overcome this problem and make your bike more performing and comfortable we studied and tested a series of possibilities, it was a long job, but the result surprised us too, the bike it changes character and becomes much more fun and usable on any type of route. This will allow you to have customized suspensions and the driving comfort will be fantastic.

- Pair of cartridges with hydraulic adjustment for original fork, developed to our specifications and equipped with a sophisticated hydraulic system that guarantees exceptional performance.
- Pistons with increased oil passages.
- Adjustable in compression and extension.
- Adjustable spring preload
- The cartridge KIT is supplied complete with springs.

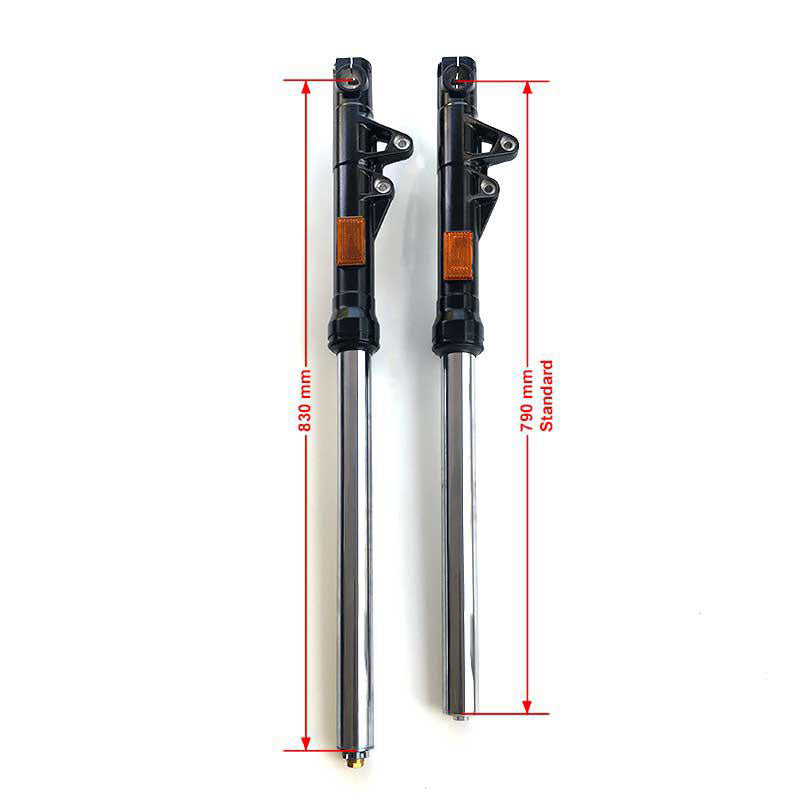

- Wheelbase 830 mm.
- Stroke 155 mm.
- It is advisable to reduce the removal of the fork from the plates by 10 mm.

Attention!!!
Correct assembly of this product is important for your safety and requires the intervention of an expert technician.

NB: It is recommended to use Öhlins Fork Oil (code: 01309_01) in the quantity recommended by the manufacturer.

To offer you the best, we constantly improve our products in detail. The images may refer to a previous version.
