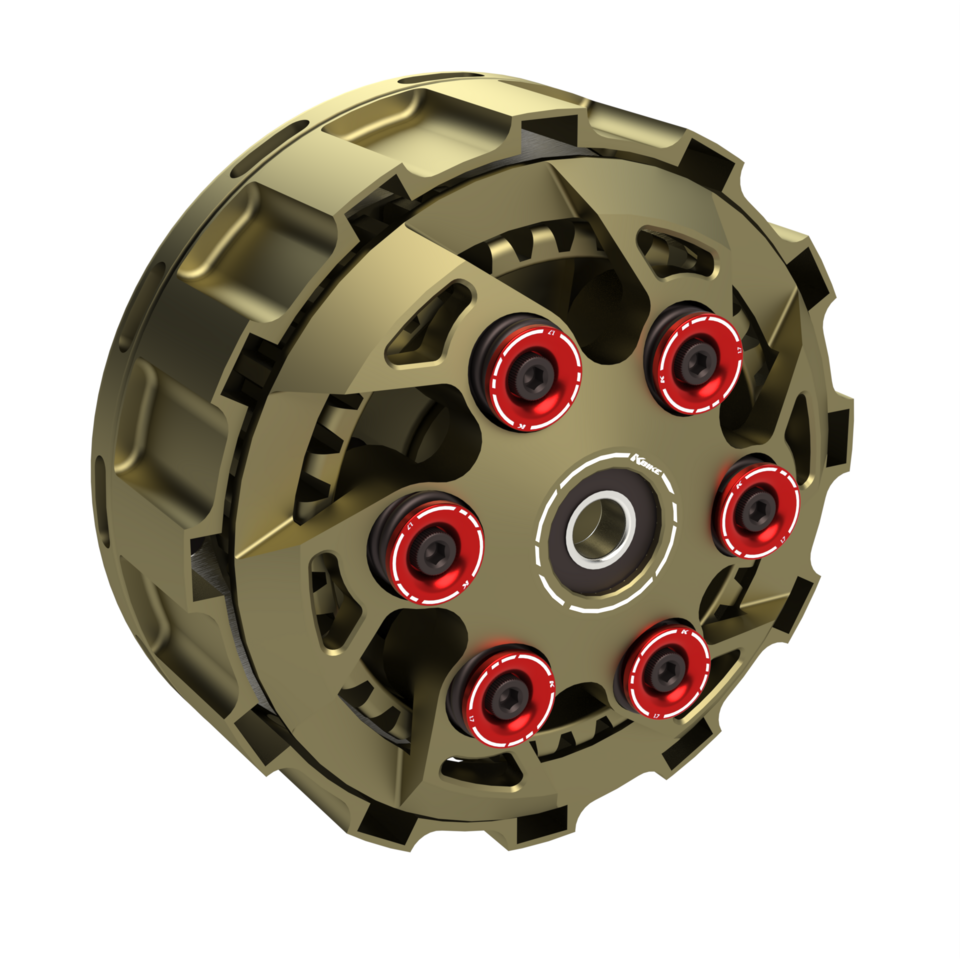

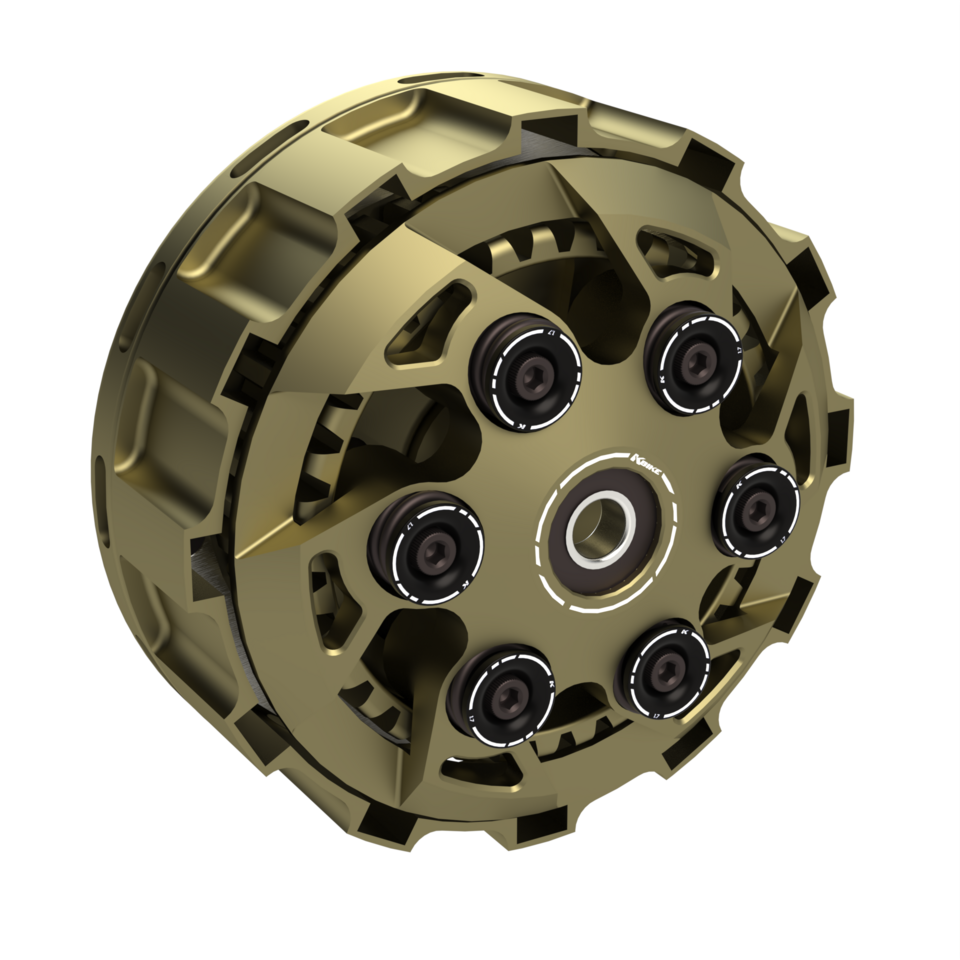

KBIKE Special Edition - Slipper clutch adjustable with integral basket

Lightweight slipper clutch with 6 Ergal springs (without spider spring) with lightweight clutch basket
Compatible with all Ducati models equipped with a dry clutch.
The Special Edition line will be produced in limited quantities with a dedicated laser engraving.
The kit includes:
• Ergal clutch coreboard
• Ergal integral clutch basket code CAMP006D
• Ergal clutch drum with 45° ball ramps
• Ventilated hard oxidated clutch pressure plate with slots to monitor disc wear
• 3 sets of spring caps (1.7/1.85/2.1) with different settings to adjust and customize engine braking and slipper control
• Stainless steel balls, screws and burnished springs
• High-speed bearing for the clutch pressure plate (already installed)
• Two retaining nuts machined from a single block
• One Belleville spring
• Casehardened and ground spacer with O-ring to ensure perfect clutch parallelism
The clutch assembly is equipped with a 6-spring stainless steel loading system, replacing the conventional spider spring. The kit includes 3 sets of marked retaining cups, designed to vary the mechanical preload of the springs. By replacing or combining the different sets (configurable in symmetrical groups of 2 or 3 units), it is possible to modify the clutch calibration, optimizing the intensity of the engine braking and the intervention threshold of the slipper system based on the dynamic needs of the vehicle. The system setup is distinguished by its high efficiency and speed of execution: changing the calibration does not require disassembly of the clutch body or replacement of internal components.
Installation Instructions
Illustrated step-by-step instructions are available online and downloadable in PDF format.
Compatible with original or racing discs.
The use of a slipper clutch offers numerous advantages:
• Greater stability when braking and downshifting: prevents the rear wheel from locking or hopping during aggressive downshifts, improving safety and control of the bike.
• Smoother and more precise downshifting: reduces stress on the transmission and allows for faster and more confident downshifting.
• Less mechanical stress: limits rebound on the bell, gearbox, and crankshaft, extending the life of the components.
• Superior riding comfort: the bike remains more composed, especially during hard braking or sporty riding.
• Consistent performance: the system works progressively, ensuring a consistent and predictable response.
An ideal choice for those who want to improve the safety, feel, and performance of their Ducati.
Article number for clutch locking tool: KCH006

Fitment: 1000 SS: 2003, 2004, 2005, 2006; 1098: 2007, 2008; 1098 R: 2008, 2009; 1098 S: 2007, 2008; 1198: 2009, 2010, 2011; 1198 R: 2010; 1198 S: 2009, 2010; 1198 SP: 2011; 748: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003; 748 R: 1998, 1999, 2000, 2001, 2002; 748 RS: 2000, 2001; 748 S: 2000, 2001, 2002; 748 SPS: 1998, 1999; 749: All years, 2003, 2004, 2005, 2006; 749 R: 2004, 2005, 2006; 749 S: 2003, 2004, 2005, 2006; 900 S: 2002; 900 SS: 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002; 916: 1994, 1995, 1996, 1998; 916 R: 1997, 1998; 916 SP: 1994, 1995, 1996; 996: 1999, 2000, 2001; 996 R: All years, 1999, 2001; 996 RS: 2000, 2001; 996 S: 2001; 996 SPS: 1999, 2000; 998: All years, 2002, 2003, 2004; 998 R: 2002; 998 S: 2002; 999: All years, 2004, 2005, 2003, 2006; 999 R: 2004, 2005, 2006; 999 S: 2003, 2004, 2005, 2006, 2007; GT 1000: All years; Hypermotard 1100: 2008, 2009; Hypermotard 1100 EVO: 2010, 2011, 2012; Hypermotard 1100 EVO SP: 2010, 2011; Hypermotard 1100 S: 2008, 2009; MH 900 E: 2001, 2002; Monster 1000: All years, 2003, 2004, 2005; Monster 1000 S: 2005; Monster 1100: All years, 2009, 2010; Monster 1100 S: 2009, 2010; Monster 900: All years, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002; Monster S2R 1000: All years, 2006, 2007, 2008; Monster S4: All years, 2001, 2002; Monster S4 R (Desmoquattro): All years, 2003, 2004, 2005, 2006; Monster S4 R (Testastretta): All years, 2007, 2008; Monster S4 RS: 2006, 2007, 2008; Multistrada 1000 DS: All years, 2003, 2004, 2005, 2006; Paul Smart 1000: 2006; Sport 1000 S: All years; ST2: All years, 1997, 1998, 1999, 2000, 2001, 2002, 2003; ST3: All years; ST3 S: 2006, 2007; ST4: All years, 1999, 2000, 2001, 2002, 2003; ST4 S: 2001, 2002, 2003, 2004, 2005; Streetfighter 1098: 2010, 2011; Streetfighter 1098 S: 2010, 2011, 2012, 2013

All KBIKE products are designed for racing use only.
