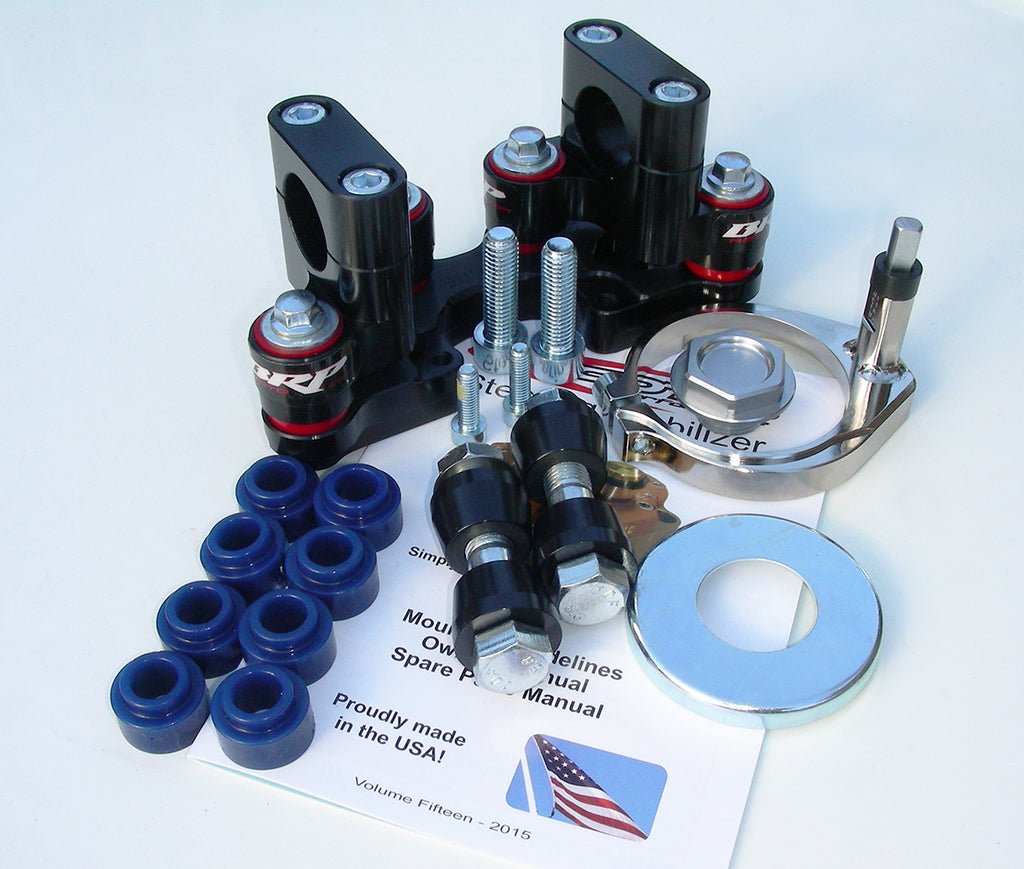

SCOTTS PERFORMANCE SUB Mount / Mount Kit Only / rubber type / using stock triple clamps – Universal Applications – DM-SUB-5926-01R

The Mount-Kit-Only includes everything except the stabilizer and link arm. This kit is designed to be used with the stock triple clamp and oversize handlebars. The stock rubber bar cones are very soft and are susceptible to distortion in the event of a crash. For this kit, the stock rubber cones are replaced with solid aluminum cones and we then supply our Rubber mounted Sub mount. This retains Rubber mounting and is more effective. This SUB mount kit will raise the bars 24mm in height and locates the bars in Position 2 / 7mm forward from stock. MED and SOFT compound bushings are provided for individual preferences. An hour meter relocation bracket is included for models with these meters stock. Step by step pictured instructions are included along with all the necessary hardware. Standard diameter bars can be used in some cases but would require our Bar Reducers which are available here, on line, as an option, if needed.

Part number: DM-SUB-5926-01R

Vehicle fitment

• Husqvarna FC 250: 2016–2018
• Husqvarna FC 350: 2016–2018
• Husqvarna FC 450: 2016–2018
• Husqvarna FX 350: 2017–2018
• Husqvarna FX 450: 2017–2018
• Husqvarna TC 125 2-stroke: 2016–2018
• Husqvarna TC 250 2-Stroke: 2017–2018
• Husqvarna TX 300 2-Stroke: 2017–2018
• Ktm 125 Sx: 2016–2018
• Ktm 150 SX: 2016–2018
• Ktm 250 SXF: 2016–2018
• Ktm 250 Sx: 2017–2018
• Ktm 250 SxF Factory Edition: 2015–2016
• Ktm 250 Xc: 2017–2018
• Ktm 250 XcF / 4stroke: 2016–2018
• Ktm 300 Xc: 2017–2018
• Ktm 350 SXF: 2016–2018
• Ktm 350 XcF: 2016–2018
• Ktm 450 SXF: 2016–2018
• Ktm 450 SxF Factory Edition: 2015–2017
• Ktm 450 XcF: 2016–2018

Manufacturer reference
