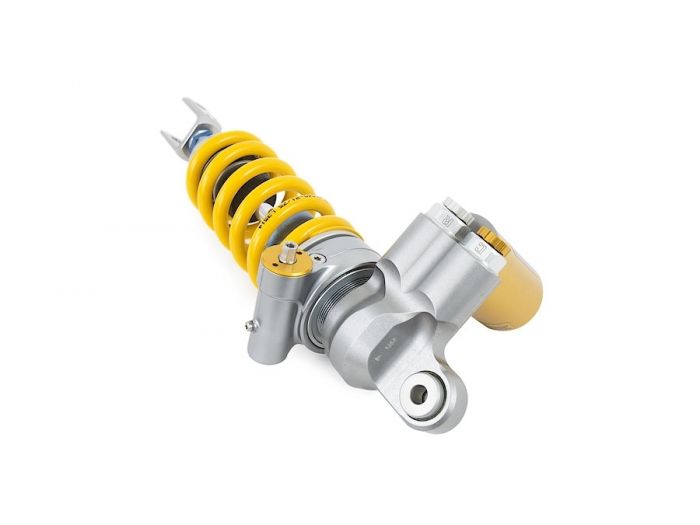

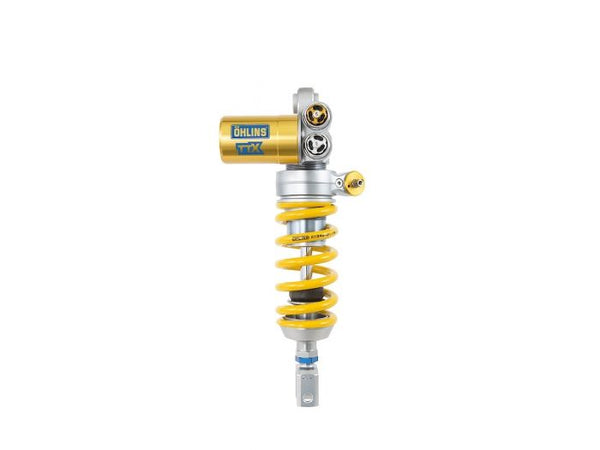

ÖHLINS SU466 TTX GP Rear Shock – Suzuki GSX-R1000 2009–2016

Product overview

The ÖHLINS SU466 TTX GP rear shock is a model-specific racing-derived suspension upgrade for the Suzuki GSX-R1000. Its twin-tube architecture and precision damping adjusters provide consistent control for performance road and track riding.

Key features

• TTX GP twin-tube damping technology
• Piggyback high-pressure gas reservoir

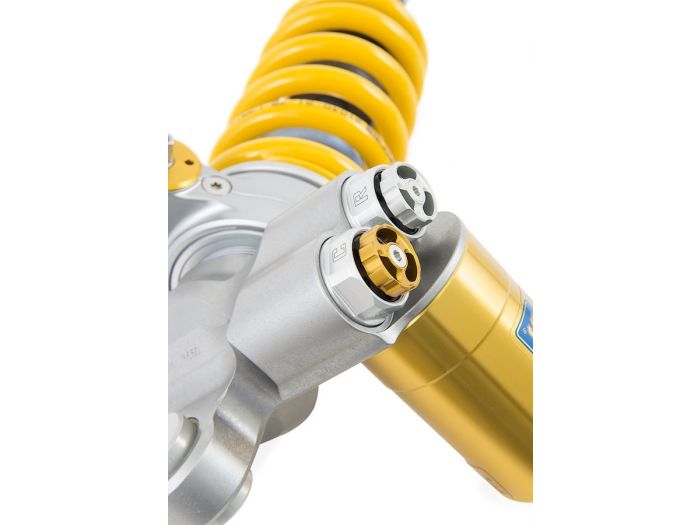

• Adjustable rebound damping
• Adjustable compression damping
• Adjustable shock length
• Integrated hydraulic spring preload adjuster

Technical specifications

• Type code: T36PR1C1LB
• Piston diameter: 36 mm
• Length: 320 mm (+4/-2 mm)
• Stroke: 63 mm
• Spring rate: 95 N/mm
• Mounted spring: 21040-31
• Position: Rear

Vehicle fitment

• Suzuki GSX-R1000: 2009–2016

Part Number: SU466
