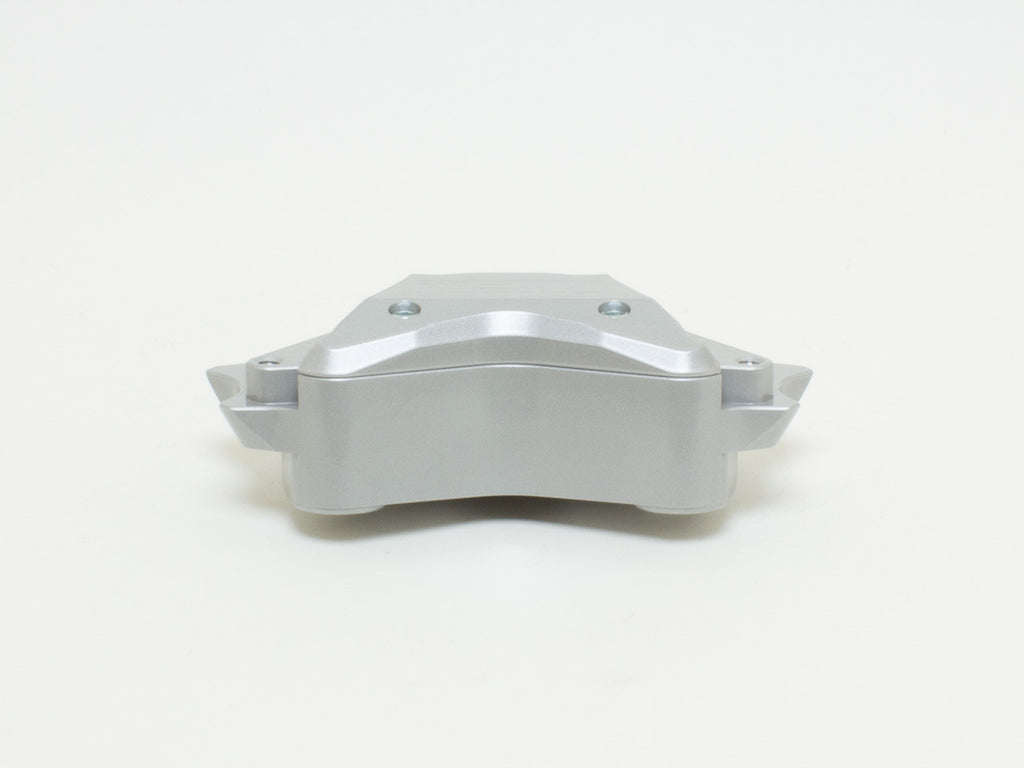

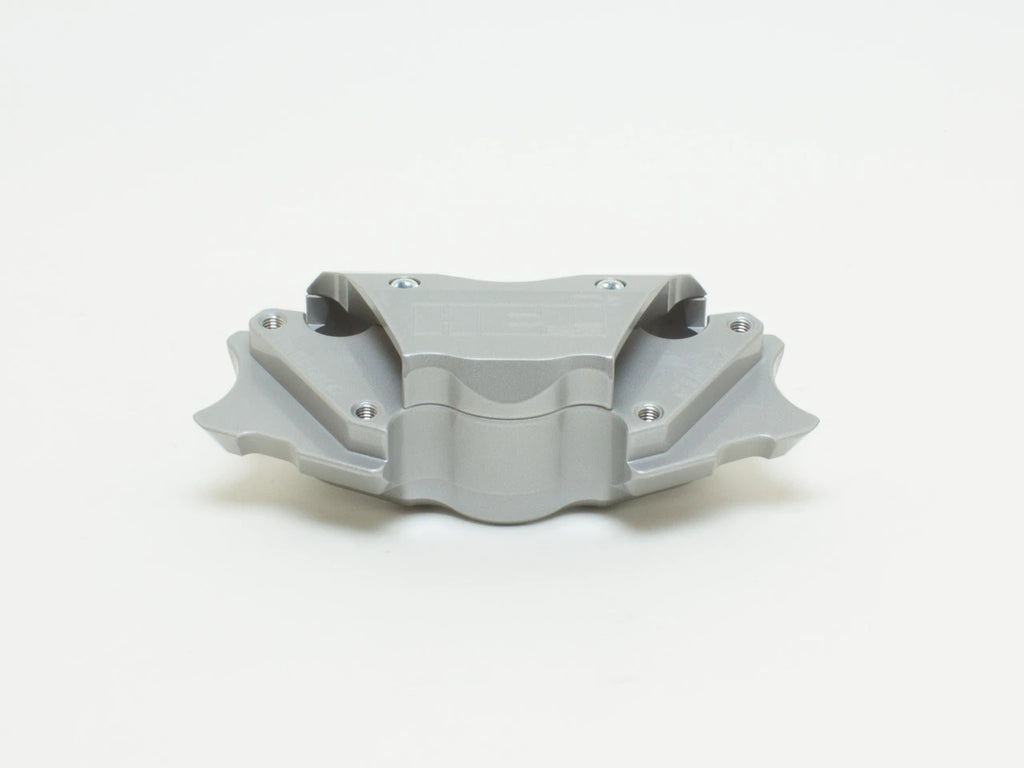

HeliBars Honda ST1300 Tour Performance handlebar riser

Part number: HR01029/HR01032

To celebrate their single most successful product to date, HeliBars is proud to introduce the new 3rd Generation Tour Performance™ HRA for the Honda ST1300 / STX1300 / Pan European.

Latest updates to Gen3 HeliBars riser for ST1300:

14 Degree decrease in Ram Ball mounting Angle.  New Cover design positions Ram Ball at a more vertical angle reducing stress to the threaded mount greatly reducing the chance of the Ram Ball coming loose (this obviously does not apply to the basic model HR01029 which does not have a Ram Ball option).

New Logo - Traditional HeliBars Logo added.  New styling details - lower overall adapter weight.

• 2” Taller (50mm) than stock*, 1” (25mm) higher compared to the HeliBars original design.
• 2.5” Rear Offset (62mm) closer to the rider*, 1/2” (12mm) additional reduction in reach compared to the HeliBars original design.
• 2 ½ degree reduction in hand grip rearward angle. This single update is the most significant in terms of true long distance comfort because it rotates the rider’s wrist into a more natural position.

**Please note that these are the true measurements taken at the wrist position, not at the fixing point or fork or triple clamp, the shape and angles of the HeliBars product give the final result required and indicated in the product description.

Additional update features:

• Larger more ridged rubber anti flex bumpers greatly reduce unwanted handlebar movement.
• Drain holes placed at the bottom of the main mounting bolt counter bores eliminates water from pooling and rusting the hardware.

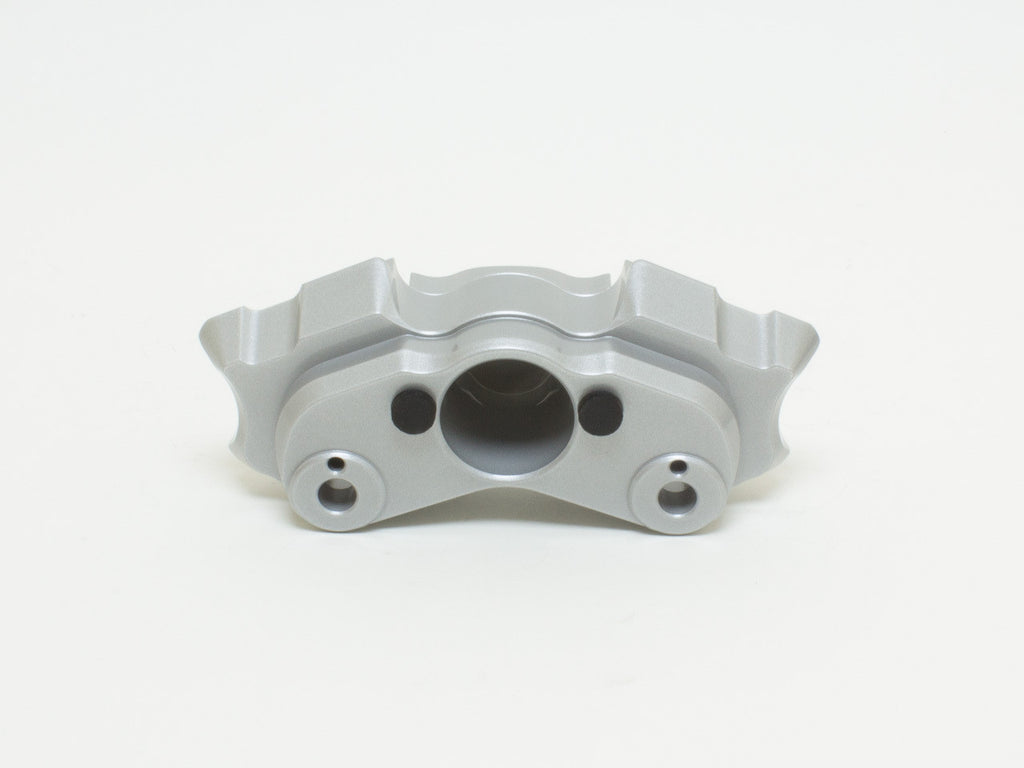

• Re-designed shape with contoured cover vastly improves appearance fit and function.
• Allows easier access to air filter maintenance.
• Contoured cut channels position control housing wire looms neatly in place and keeps them from being pinched by the fuel tank at full lock positon.
• Improved viewing in mirrors.

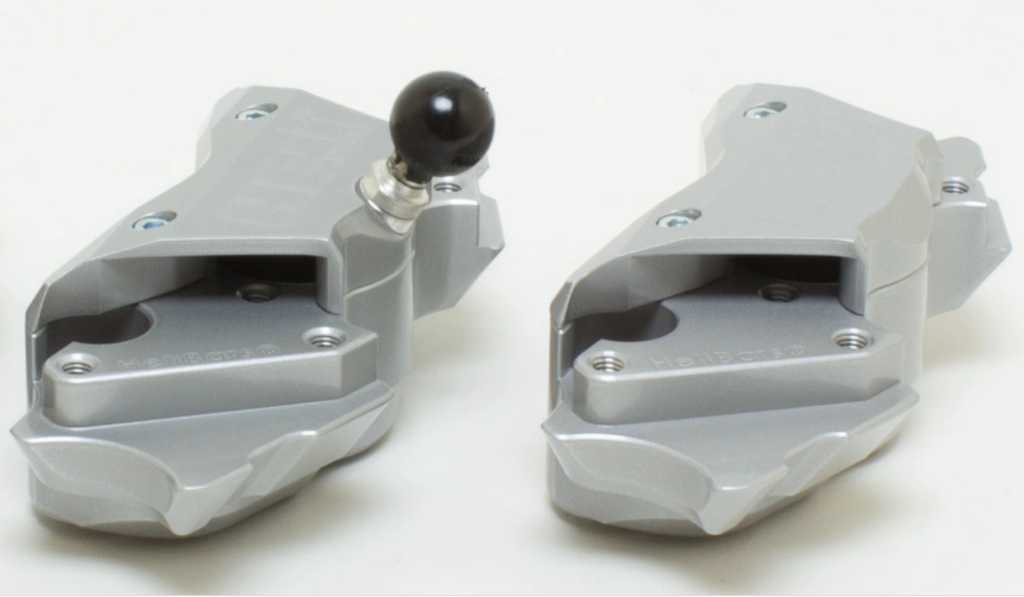

There are 2 versions of this product :

• HR01029 without RAM-MOUNT ball
• HR01032 RAM-MOUNT ball INCLUDED

Full installations instructions are available to download prior to purchase and are also included in the kit, do not hesitate to contact us and we will happily provide them for you.
