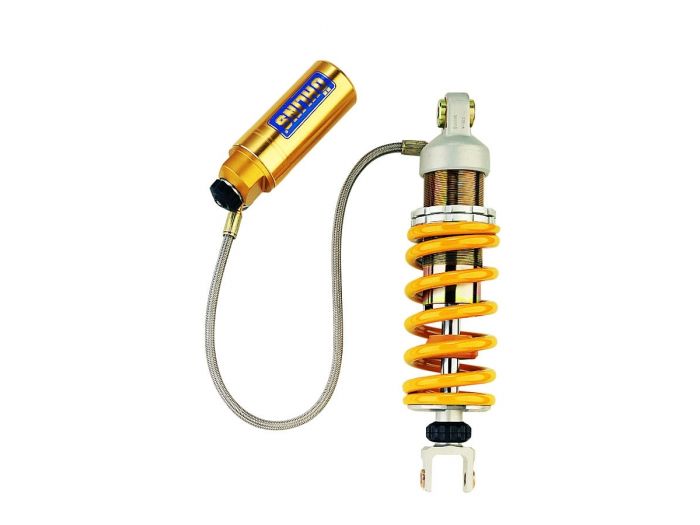

ÖHLINS SU002 STX46 Rear Shock – Suzuki GSX-R1100 1989–1992

Product overview

The ÖHLINS SU002 STX46 rear shock is a model-specific monotube shock for the Suzuki GSX-R1100, combining precise damping control with an external hose-mounted reservoir.

Key features

• STX single-tube design
• Hose-mounted external reservoir
• Adjustable rebound damping
• Adjustable compression damping

Technical specifications

• Type code: S46HR1C1
• Piston diameter: 46 mm
• Length: 312 mm
• Stroke: 70 mm
• Spring rate: 90 N/mm
• Mounted spring: 01092-29
• Position: Rear

Vehicle fitment

• Suzuki GSX-R1100: 1989–1992

Part Number: SU002
