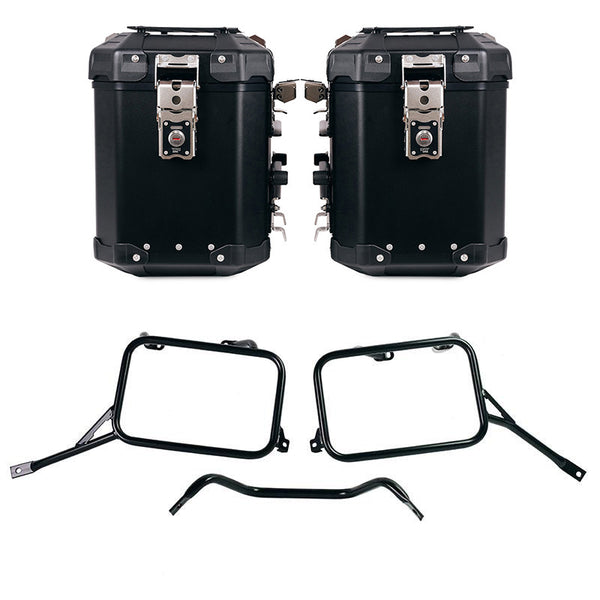

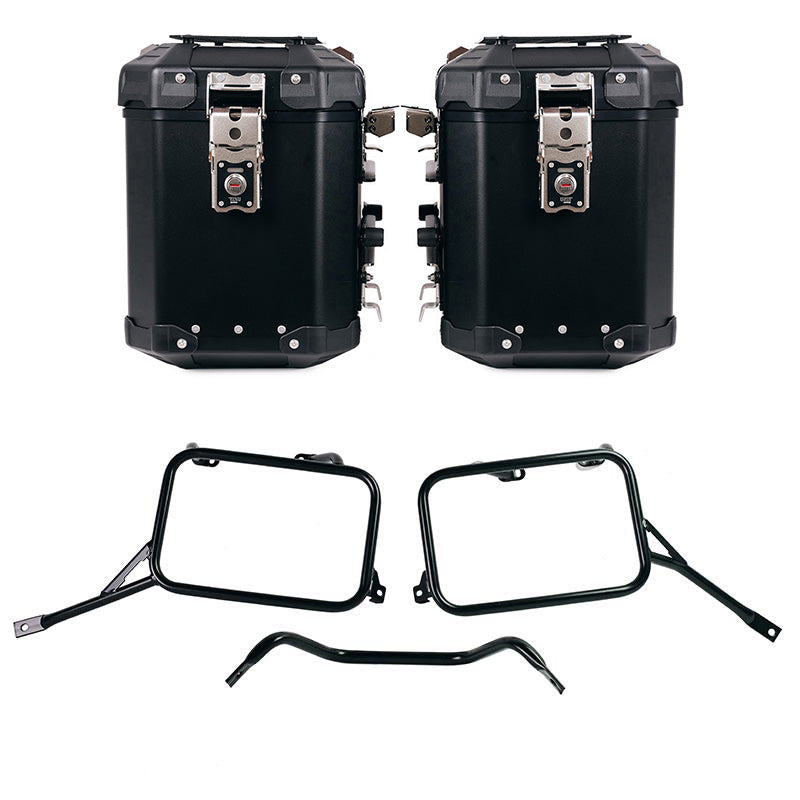

UNIT GARAGE Pair of Atlas aluminium bags 48L+48L + R80G/S and R80 GS Basic frames for Atlas aluminum panniers

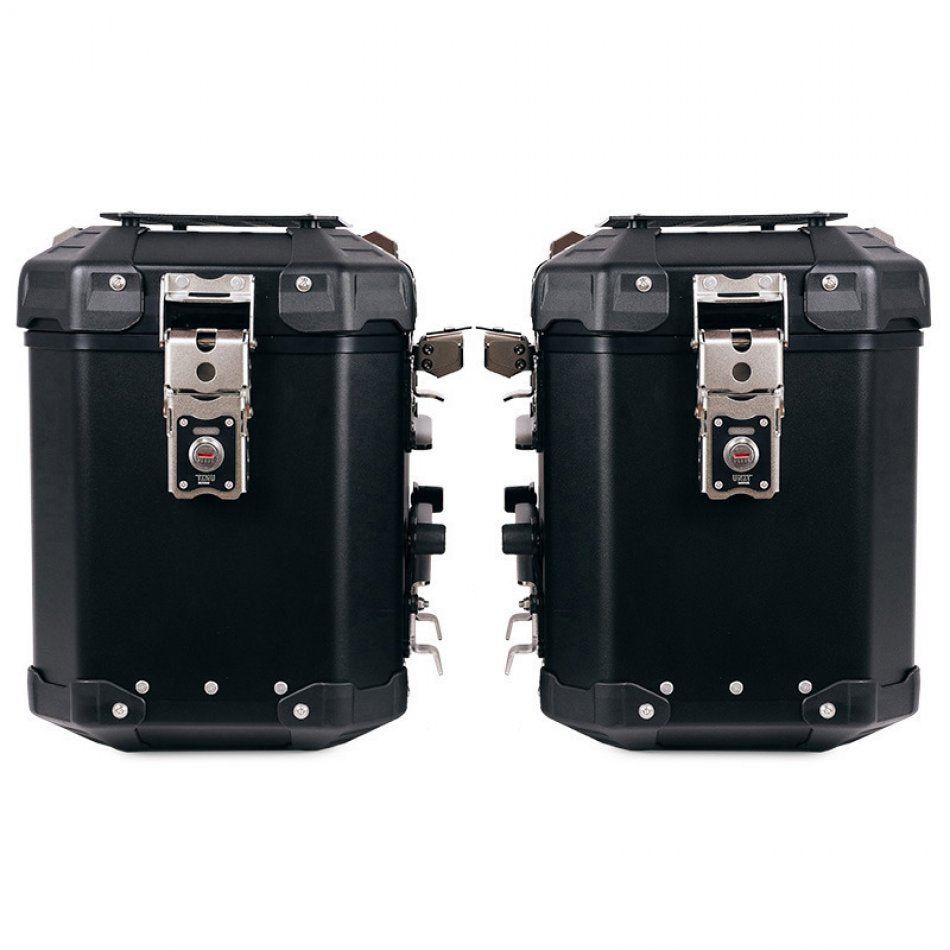

1. Pair of aluminium side bags. Version 48L + 48L

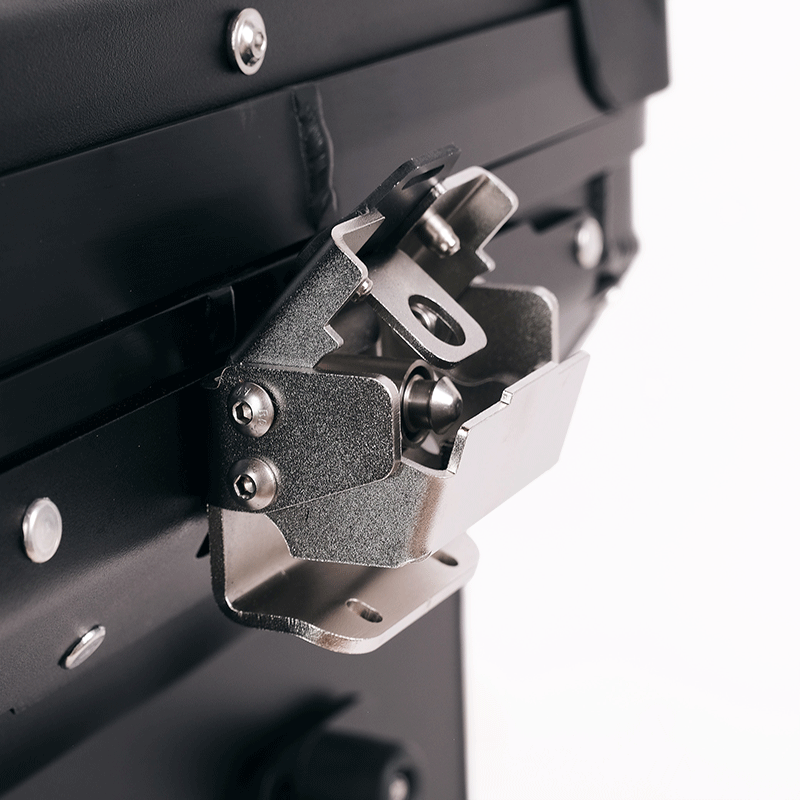

We wanted elegant, classic and sturdy bags with beautiful steel zips and carefully crafted details: details created for adventure and resistant to all conditions. They can be fixed to any round tube frame with a diameter of 18 mm thanks to the safety hooking system located on the back of the bag. The fastening opens automatically for easy mounting and removal from the bag frame. The lid can be completely removed and opened on both sides. It is equipped with fasteners on the inside for elastic nets or other accessories. The locks are designed to accommodate an extra padlock in addition to the one supplied. The hinges, locks and all other components are made of polished and electro-polished stainless steel, which you will not find in any other similar product on the market. The corner pieces are made of plastic and can be replaced in case of fall. Our ATLAS bags are entirely Made in Italy, assembled by hand one by one.

- Plates with spring system for fixing accessories mounted on bag lids.
- The 48L bag contains a full-face helmet
- Bag body and lids made of high-strength aluminium alloy, thickness 1.5 mm. Rear part in the attachment area 4 mm.
- High-quality stainless steel for locks, hinges, screws: polished and electropolished accessories
- Plastic corner protectors that can be replaced in the event of a fall
- Seals between lids and body of the bag
- Finish: matt black
- If you purchase the pair of bags or the bags + top case, you will receive the lock cylinders with matching keys.
- If you use our bags on BMW models, you can unify the keys with those of the motorbike by purchasing the ATL7 lock block kit, which houses the original BMW codable mechanism.

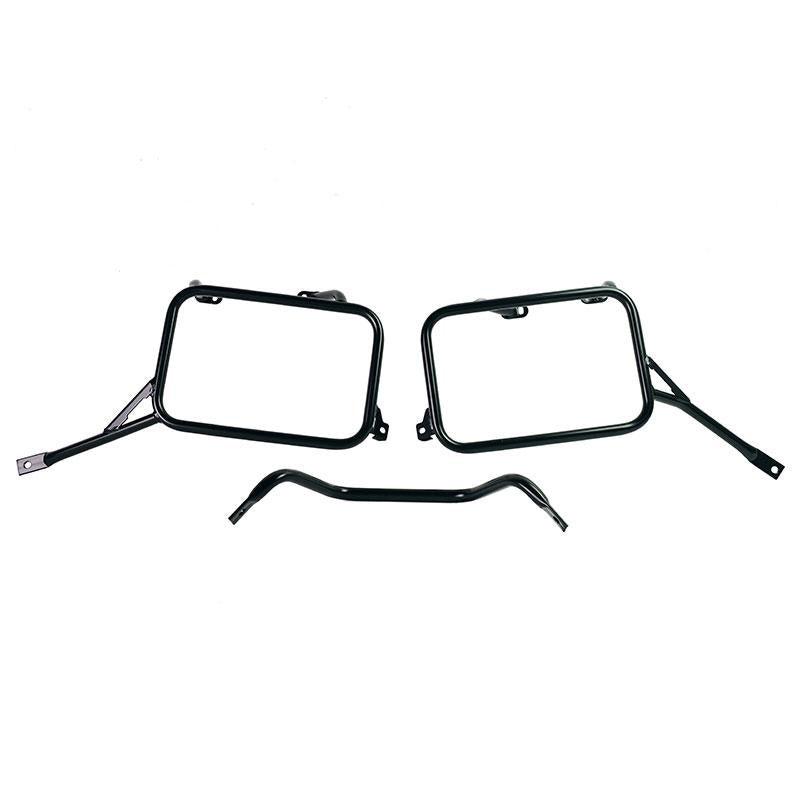

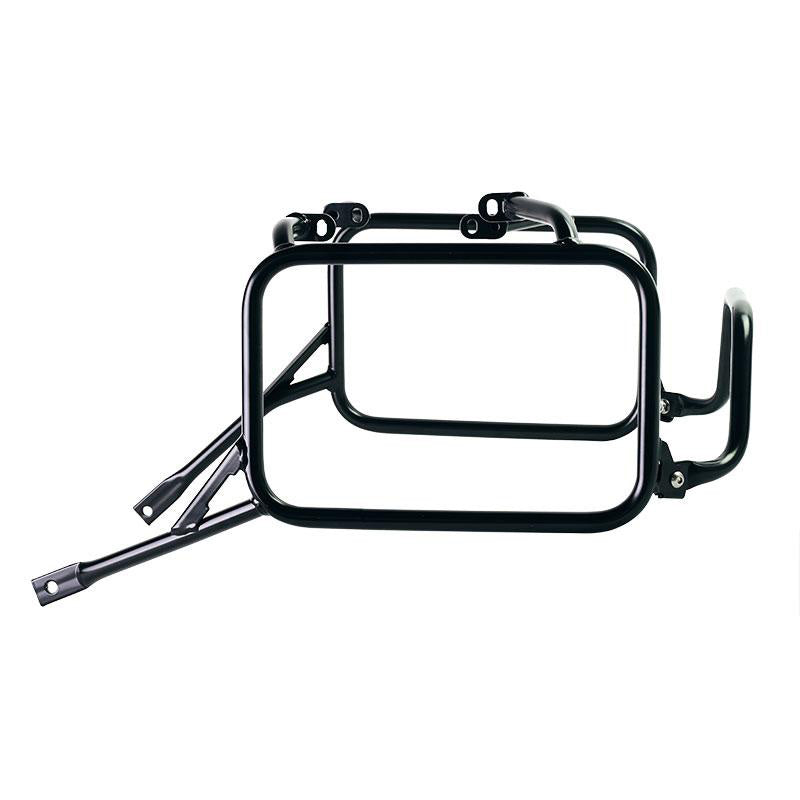

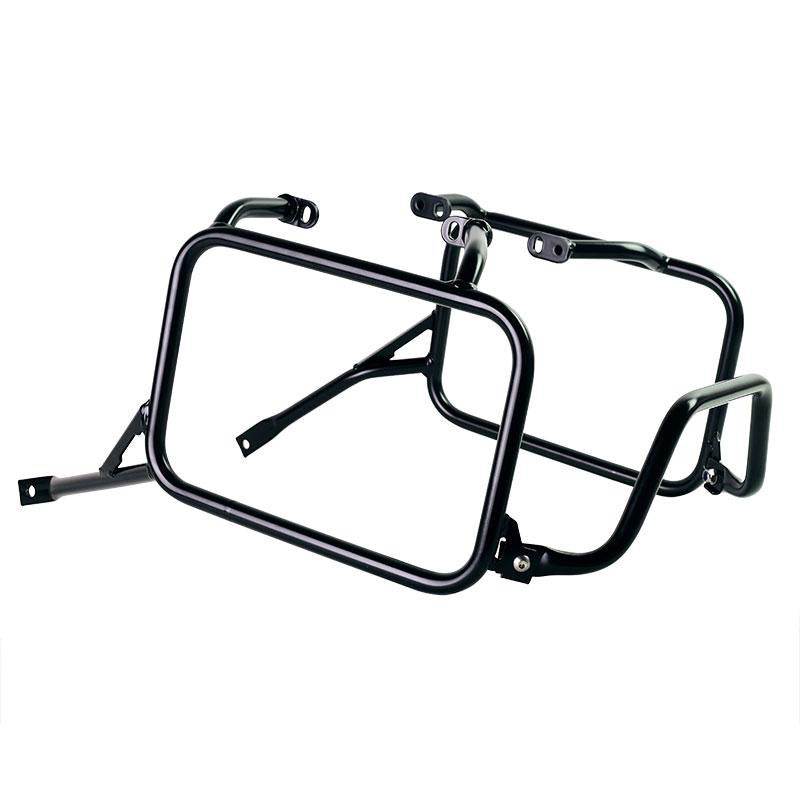

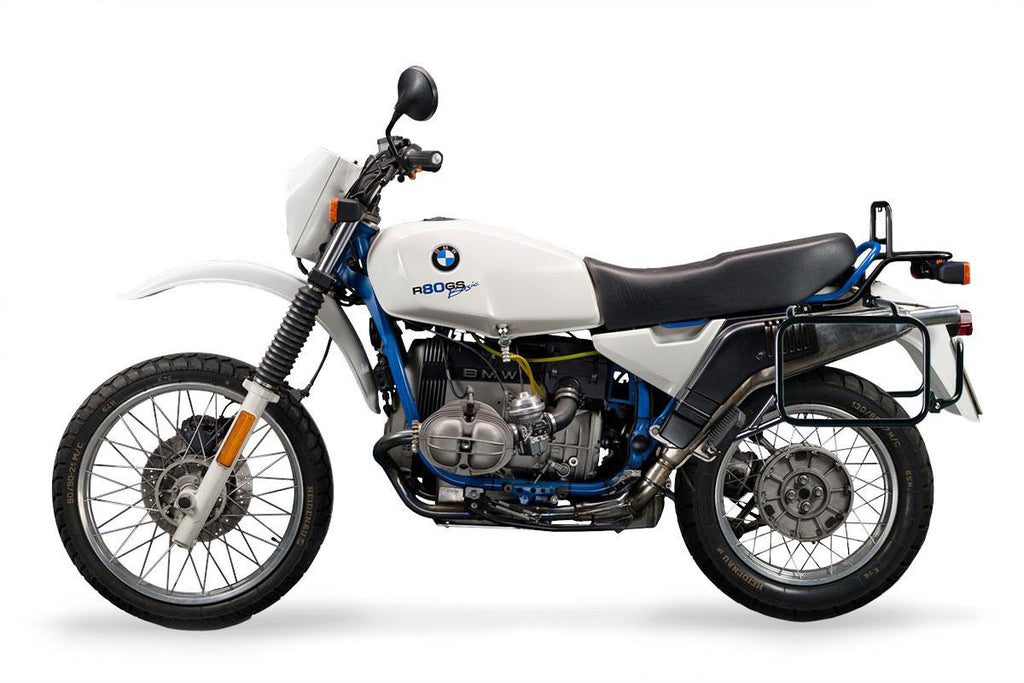

2. Frames made of stainless steel for the BMW R80G/S and R80 GS Basic models
This complete set of frames made of stainless steel allows you to mount aluminum cases or other cases compatible with the classic 18mm diameter tube frames on the G/S models. They integrate perfectly with the rest of the bike, ready to house our aluminum bags in different sizes or our soft bags compatible with this type of frame. They are supplied complete with mounting kit and screws.
They can be used comfortably with the passenger on board.

NB: for the assembly of these frames it is necessary to have the stock luggage rack installed on the bike

Colors:
Matt black with epoxy powder finish

Material:
Stainless steel

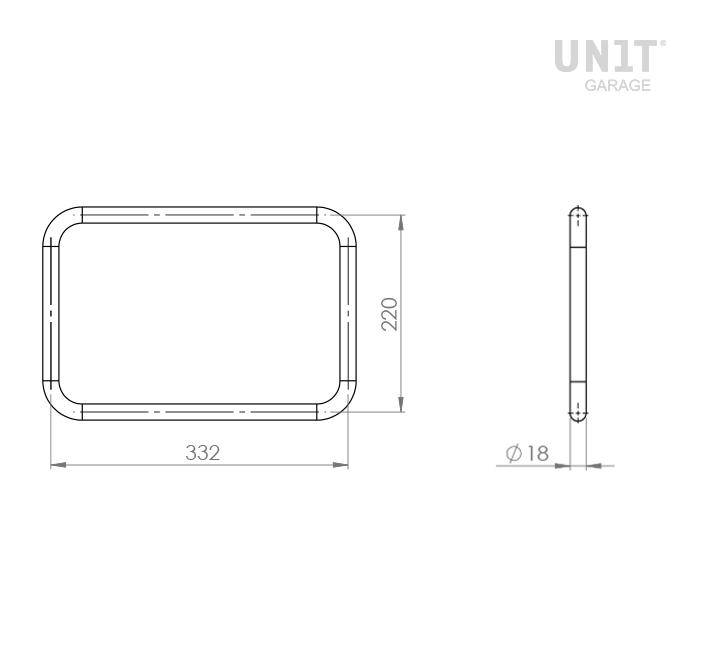

Tube diameter 18mm
Pipe thickness mm2

Compatible with:
BMW R80G/S models up to 1987
the BMW R80 GS Basic models 1996/1997
Atlas aluminum bags
Cult bags code: U203 and U204
Khali bags code: UG002+AL0
Bag holder with adjustable front U085+2xA9, UG007+2xA9

To offer you the best, we constantly improve our products in detail. The images may refer to a previous version.
