UNIT GARAGE Rear Suspension Öhlins BM640 (standard height)

The standard suspension of the nineT models are quite basic, to overcome this problem and make your bike more performing and comfortable we have studied and tested a series of possibilities, it was not an easy task, but the result amazed us. It changes the character of the bike and becomes much more fun and usable on every kind of route. When ordering you can indicate the weight of the rider and the type of use that you normally make of the bike. This will allow you to have customized suspension and the driving comfort will be fantastic.

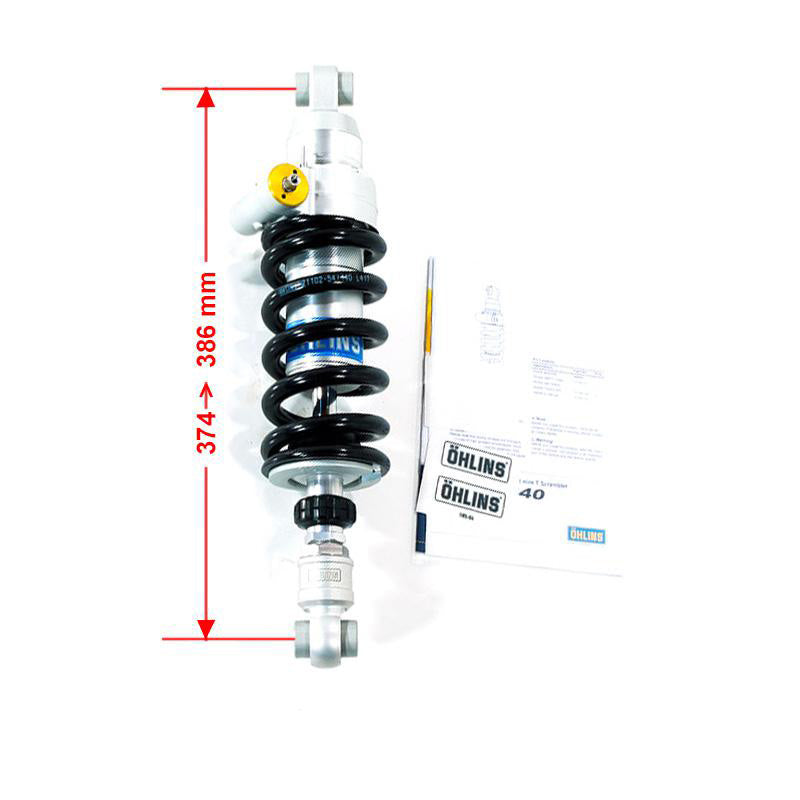

Öhlins shock absorber calibrated and adjusted to our specifications.
- Mono shock absorber Öhlins S46DR1LB
- 46 mm mono body
- 16 mm stem
- Adjustable rebound damping
- Interval axis from 374mm to 386 mm that allows you to adjust the height to the saddle from 0 mm to plus 30 mm compared to the height of the original saddle.
- Integrated hydraulic spring preload adjuster.
- Stroke 52 mm
- Spring rate 140 N / mm
- Weight 3.0 kg compared to 4.1 kg of the original, for a weight saving of 1.1 kg (-25%).

NB: ABE Certified.

These products are prepared and set according to our exclusive specifications, the result is very performing!

To offer you the best we are constantly improving our products in detail. The images may refer to a previous version.
